Front Suspension Arms (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Front Suspension Arms (Solihull Plant Build) ((V) FROMHA000001)

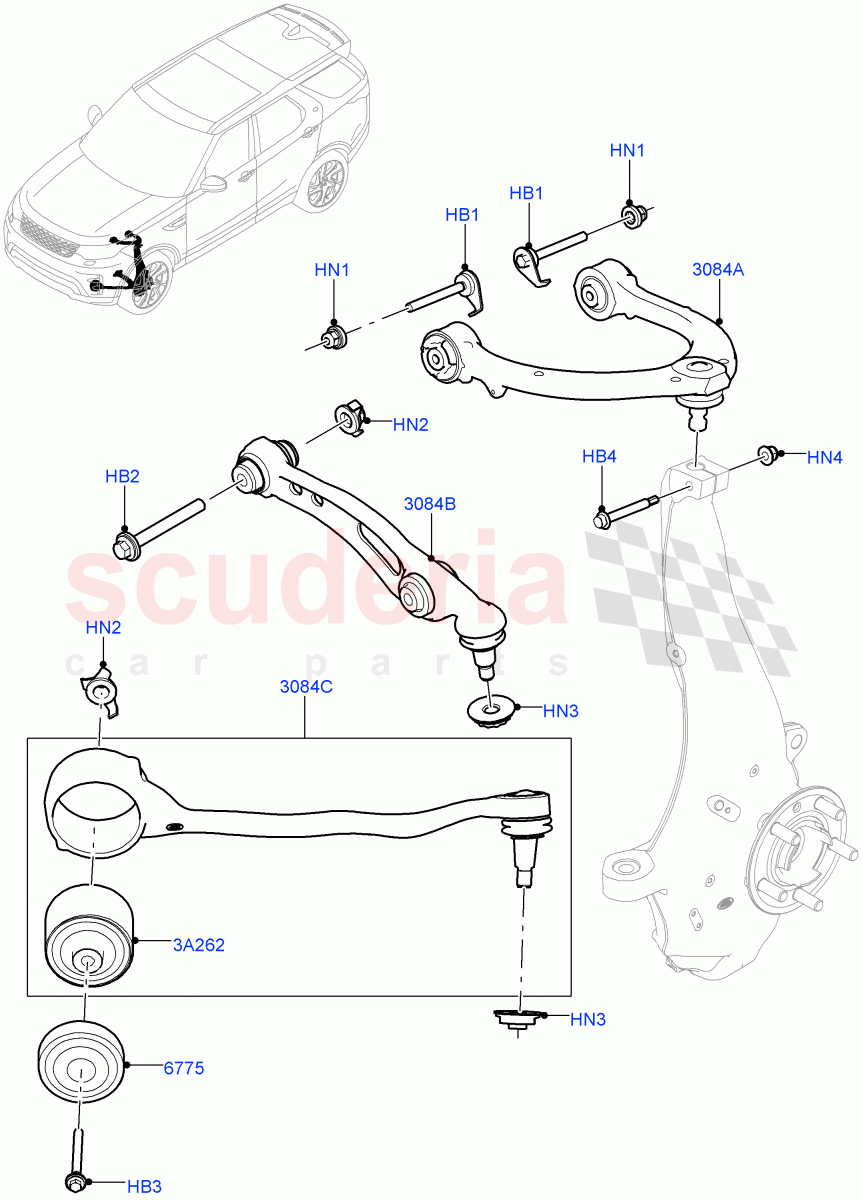

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038449	BOLT - FLAG TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072694	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034229	BOLT	Enquire	To Order
	LR097372	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG000230	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034227	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038365	NUT - FLAG TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034221	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110056	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104875	COVER - SUSPENSION ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044844	ARM - FRONT SUSPENSION	Enquire	To Order
	LR044841	ARM - FRONT SUSPENSION	Enquire	To Order
	LR113262	ARM - FRONT SUSPENSION	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR084095	ARM - FRONT SUSPENSION	Enquire	To Order
	LR084097	ARM - FRONT SUSPENSION	Enquire	To Order
	LR113281	ARM - FRONT SUSPENSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR072471	ARM - FRONT SUSPENSION	Enquire	To Order
	LR072469	ARM - FRONT SUSPENSION	Enquire	To Order
	LR148059	ARM - FRONT SUSPENSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR084108	BUSH - SUSPENSION ARM	Enquire	To Order
	LR174897	BUSH - SUSPENSION ARM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR038449	BOLT - FLAG TYPE	LR038449 BOLT - FLAG TYPE Hexagonal Head, M10 X 90MM	-	4	Enquire
HB2	LR072694	BOLT	LR072694 BOLT Hexagonal Head, M14 X 125	-	2	Enquire
HB3	LR034229	BOLT	LR034229 BOLT Hexagonal Head, M14 X 148MM / To: HA038812	-	2	Enquire
HB3	LR097372	BOLT	LR097372 BOLT Hexagonal Head, M14 X 148MM / From: HA038813	-	2	Enquire
HB4	KYG000230	BOLT	KYG000230 BOLT Hexagonal Head, M10 x 70MM	-	2	Enquire
HN1	LR034227	NUT - FLANGED	LR034227 NUT - FLANGED M10	-	4	Enquire
HN2	LR038365	NUT - FLAG TYPE	LR038365 NUT - FLAG TYPE Flag Type, M14	-	2	Enquire
HN3	LR034221	NUT - FLANGED	LR034221 NUT - FLANGED M16	-	4	Enquire
HN4	FY110056	NUT	FY110056 NUT M10	-	2	Enquire
3A262	LR084108	BUSH - SUSPENSION ARM	LR084108 BUSH - SUSPENSION ARM To: HA001938	-	1	Enquire
3A262	LR174897	BUSH - SUSPENSION ARM	LR174897 BUSH - SUSPENSION ARM From: HA001939	-	1	Enquire
3084A	LR044844	ARM - FRONT SUSPENSION	LR044844 ARM - FRONT SUSPENSION LH, Standard Length Part, Upper / To: HA999999	-	1	Enquire
3084A	LR044841	ARM - FRONT SUSPENSION	LR044841 ARM - FRONT SUSPENSION RH, Standard Length Part, Upper / To: HA999999	-	1	Enquire
3084A	LR113262	ARM - FRONT SUSPENSION	LR113262 ARM - FRONT SUSPENSION RH, Standard Length Part, Upper / From: JA000001	-	1	Enquire
3084A	LR113263	ARM - FRONT SUSPENSION	LR113263 ARM - FRONT SUSPENSION RH, Service Length Part - 5MM Longer, Upper / From: JA000001 / To: KA093563	-	1	Enquire
3084A	LR113264	ARM - FRONT SUSPENSION	LR113264 ARM - FRONT SUSPENSION RH, Service Length Part - 5MM Shorter, Upper / From: JA000001 / To: KA093563	-	1	Enquire
3084A	LR113268	ARM - FRONT SUSPENSION	LR113268 ARM - FRONT SUSPENSION LH, Standard Length Part, Upper / From: JA000001	-	1	Enquire
3084A	LR113270	ARM - FRONT SUSPENSION	LR113270 ARM - FRONT SUSPENSION LH, Service Length Part - 5MM Longer, Upper / From: JA000001 / To: KA093563	-	1	Enquire
3084A	LR113271	ARM - FRONT SUSPENSION	LR113271 ARM - FRONT SUSPENSION LH, Service Length Part - 5MM Shorter, Upper / From: JA000001 / To: KA093563	-	1	Enquire
3084A	LR125701	ARM - FRONT SUSPENSION	LR125701 ARM - FRONT SUSPENSION RH, Service Length Part - 5MM Longer, Upper / From: KA093564	-	1	Enquire
3084A	LR125702	ARM - FRONT SUSPENSION	LR125702 ARM - FRONT SUSPENSION RH, Service Length Part - 5MM Shorter, Upper / From: KA093564	-	1	Enquire
3084A	LR125714	ARM - FRONT SUSPENSION	LR125714 ARM - FRONT SUSPENSION LH, Service Length Part - 5MM Shorter, Upper / From: KA093564	-	1	Enquire
3084A	LR125713	ARM - FRONT SUSPENSION	LR125713 ARM - FRONT SUSPENSION LH, Service Length Part - 5MM Longer, Upper / From: KA093564	-	1	Enquire
3084B	LR084095	ARM - FRONT SUSPENSION	LR084095 ARM - FRONT SUSPENSION RH, Lower, Rear / To: HA999999	-	1	Enquire
3084B	LR084097	ARM - FRONT SUSPENSION	LR084097 ARM - FRONT SUSPENSION LH, Lower, Rear / To: HA999999	-	1	Enquire
3084B	LR113281	ARM - FRONT SUSPENSION	LR113281 ARM - FRONT SUSPENSION RH, Lower, Rear / From: JA000001	-	1	Enquire
3084B	LR113304	ARM - FRONT SUSPENSION	LR113304 ARM - FRONT SUSPENSION LH, Lower, Rear / From: JA000001	-	1	Enquire
3084C	LR072471	ARM - FRONT SUSPENSION	LR072471 ARM - FRONT SUSPENSION RH, Front, Lower / To: HA999999	-	1	Enquire
3084C	LR072469	ARM - FRONT SUSPENSION	LR072469 ARM - FRONT SUSPENSION LH, Front, Lower / To: HA999999	-	1	Enquire
3084C	LR148059	ARM - FRONT SUSPENSION	LR148059 ARM - FRONT SUSPENSION RH, Front, Lower / From: JA000001	-	1	Enquire
3084C	LR113307	ARM - FRONT SUSPENSION	LR113307 ARM - FRONT SUSPENSION LH, Front, Lower / From: JA000001	-	1	Enquire
6775	LR104875	COVER - SUSPENSION ARM	LR104875 COVER - SUSPENSION ARM Protective	-	4	Enquire
