Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Fuel Lines (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Fuel Tank-Diesel) ((V) FROMKA000001)

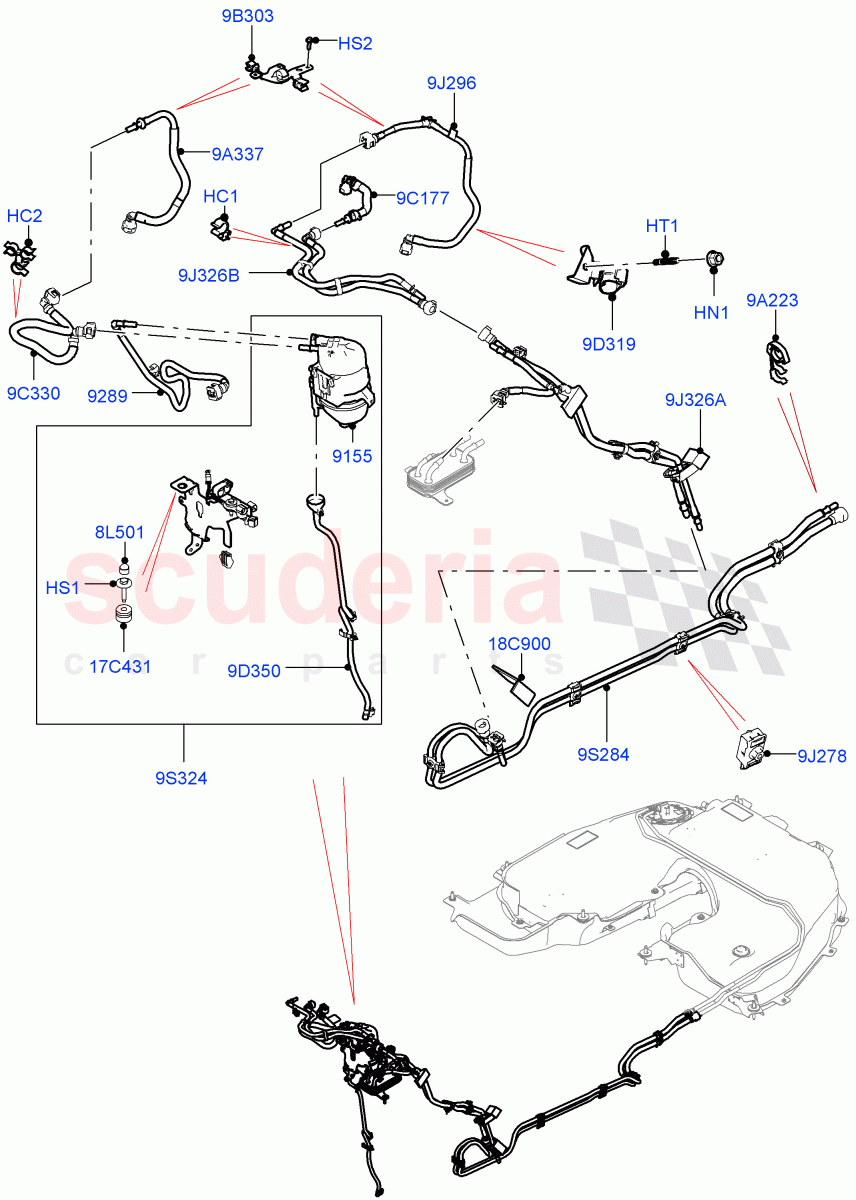

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR049397	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174231	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052757	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR103234	FILTER - FUEL - PRIMARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082756	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032034	CAP - PROTECTIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040125	CLIP - FUEL PIPE SECURING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087240	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087239	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082269	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118213	TUBE - FUEL FILTER TO FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087238	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082765	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086433	RETAINER - TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087241	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086377	TUBE - FUEL SUPPLY AND VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113370	FILTER - FUEL - PRIMARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081530	GROMMET - FUEL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MTC7458	PAD - FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082761	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118214	PIPE - FUEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR049397	CLIP - SPECIAL	LR049397 CLIP - SPECIAL 11 - 13 x 1.0 - 3.5 / From: KA000001	-	1	Enquire
HC2	LR174231	CLIP - HOSE	LR174231 CLIP - HOSE Plastic / From: KA000001	-	1	Enquire
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6 / From: KA000001	-	1	Enquire
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: KA000001	-	2	Enquire
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	-	2	Enquire
HT1	LR052757	STUD	LR052757 STUD M6 X 25 / M6 X 15 / From: KA000001	-	1	Enquire
8L501	LR032034	CAP - PROTECTIVE	LR032034 CAP - PROTECTIVE Protective / From: KA000001	-	1	Enquire
9A223	LR040125	CLIP - FUEL PIPE SECURING	LR040125 CLIP - FUEL PIPE SECURING From: KA000001	-	1	Enquire
9A337	LR087240	PIPE - FUEL	LR087240 PIPE - FUEL From Fuel Filter To Fuel Pump / From: KA000001	-	1	Enquire
9B303	LR087239	BRACKET - FUEL TUBE SUPPORT	LR087239 BRACKET - FUEL TUBE SUPPORT From: KA000001	-	1	Enquire
9C177	LR082269	PIPE - FUEL	LR082269 PIPE - FUEL From: KA000001	-	1	Enquire
9C330	LR118213	TUBE - FUEL FILTER TO FUEL PUMP	LR118213 TUBE - FUEL FILTER TO FUEL PUMP Front, Single / From: KA000001	-	1	Enquire
9D319	LR087238	BRACKET - FUEL TUBE SUPPORT	LR087238 BRACKET - FUEL TUBE SUPPORT From: KA000001	-	1	Enquire
9D350	LR082765	TUBE - FUEL	LR082765 TUBE - FUEL Drain / From: KA000001	-	1	Enquire
9J278	LR086433	RETAINER - TUBE	LR086433 RETAINER - TUBE From: KA000001	-	5	Enquire
9J296	LR087241	PIPE - FUEL	LR087241 PIPE - FUEL From: KA000001	-	1	Enquire
9J326A	LR082761	PIPE - FUEL	LR082761 PIPE - FUEL Centre / From: KA000001	-	1	Enquire
9J326B	LR118214	PIPE - FUEL	LR118214 PIPE - FUEL Double, Front / From: KA000001	-	1	Enquire
9S284	LR086377	TUBE - FUEL SUPPLY AND VAPOUR	LR086377 TUBE - FUEL SUPPLY AND VAPOUR Rear / From: KA000001	-	1	Enquire
9S324	LR113370	FILTER - FUEL - PRIMARY	LR113370 FILTER - FUEL - PRIMARY Assembly / From: KA000001	-	1	Enquire
17C431	LR081530	GROMMET - FUEL FILTER	LR081530 GROMMET - FUEL FILTER Rear / From: KA000001	-	2	Enquire
18C900	MTC7458	PAD - FOAM	MTC7458 PAD - FOAM From: KA000001	-	2	Enquire
9155	LR103234	FILTER - FUEL - PRIMARY	LR103234 FILTER - FUEL - PRIMARY With Bracket / From: KA000001	-	1	Enquire
9289	LR082756	TUBE - FUEL	LR082756 TUBE - FUEL Fuel Cooler To Filter Tube / From: KA000001	-	1	Enquire
