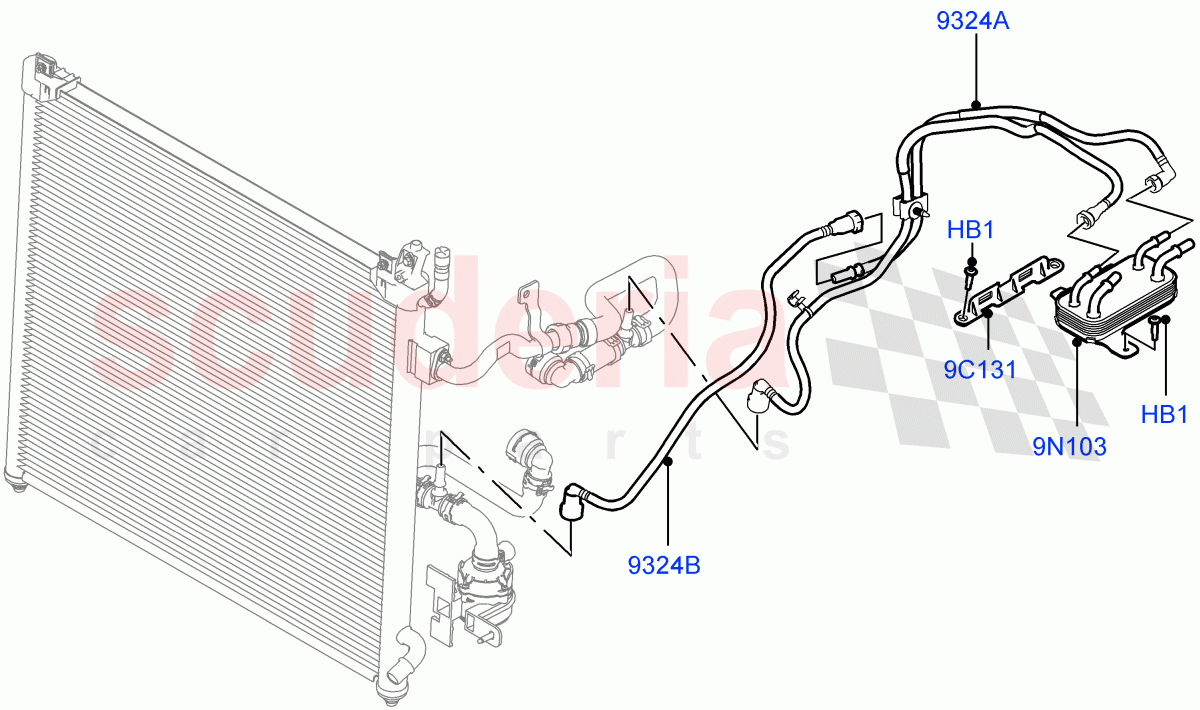

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042509	BRACKET - FUEL COOLER	$19.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038811	COOLER - FUEL	$204.59	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx / From: K2000001	$1.01	3
9C131	LR042509	BRACKET - FUEL COOLER	LR042509 BRACKET - FUEL COOLER For Fuel Cooler / From: K2000001	$19.79	1
9N103	LR038811	COOLER - FUEL	LR038811 COOLER - FUEL Main / From: K2000001	$204.59	1
9324A	LR081678	HOSE - FUEL COOLER	LR081678 HOSE - FUEL COOLER Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / From: K2000001 / To: L2443717	$53.82	1
9324A	LR146299	HOSE - FUEL COOLER	LR146299 HOSE - FUEL COOLER Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / From: L2443718	$53.82	1
9324B	LR081680	HOSE - FUEL COOLER	LR081680 HOSE - FUEL COOLER From: K2000001 / To: L2443717	$67.95	1
9324B	LR146300	HOSE - FUEL COOLER	LR146300 HOSE - FUEL COOLER From: L2443718	$74.23	1
