Name: Front Exhaust System (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Proconve L6 Emissions, Stage V Plus DPF) ((V) FROMK2000001)
Rating: 4.8 (1 reviews)

Front Exhaust System (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Proconve L6 Emissions, Stage V Plus DPF) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Front Exhaust System (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, Proconve L6 Emissions, Stage...

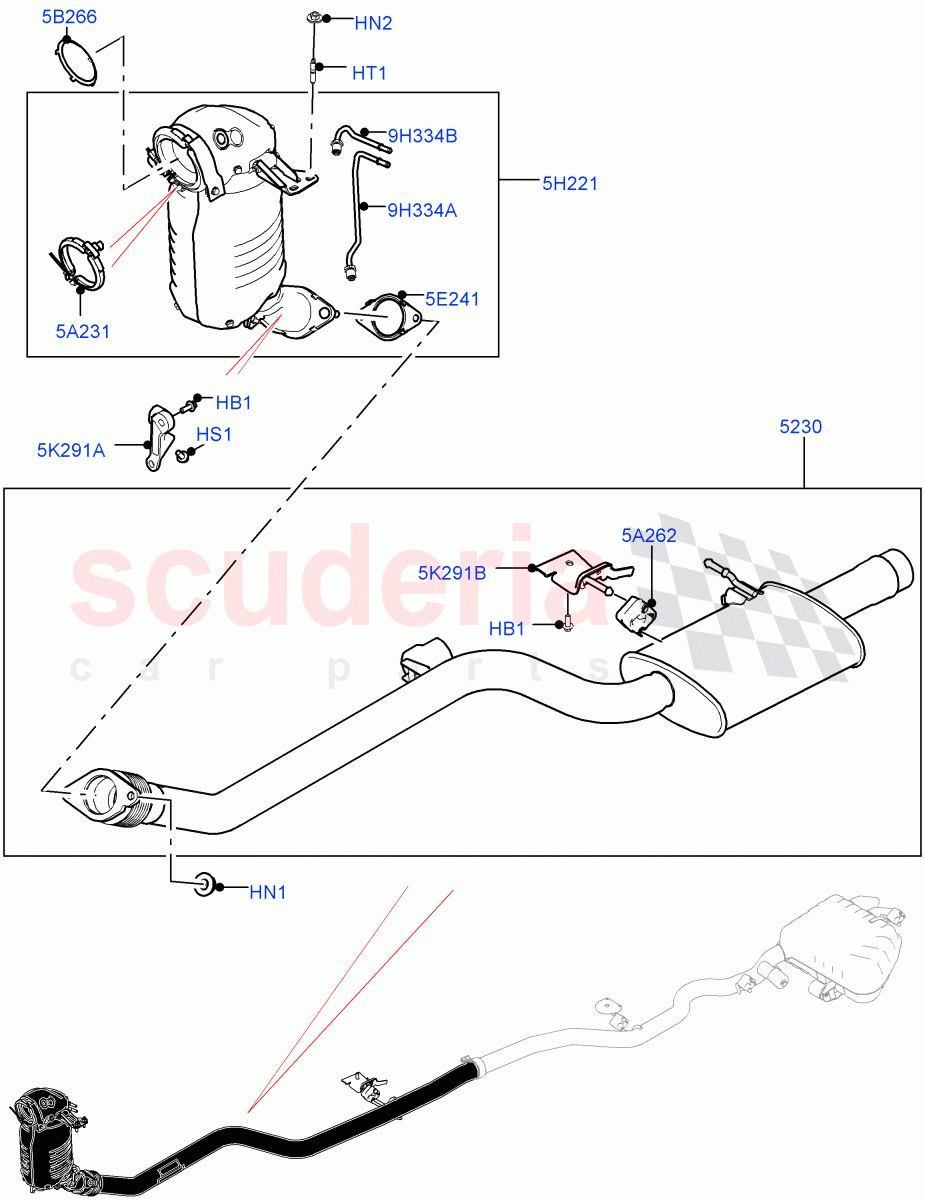

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX110046	NUT - HEX.	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500190	SCREW	$0.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105432	PIPE - EXHAUST	$673.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082692	CLAMP - EXHAUST	$20.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	$15.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085942	GASKET - EXHAUST PIPE	$8.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111127	CATALYTIC CONVERTER	$2,567.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082694	BRACKET - EXHAUST PIPE MOUNTING	$28.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095891	TUBE - EXHAUST PRESSURE	$36.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095892	TUBE - EXHAUST PRESSURE	$39.68	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Bracket, Hexagonal Head, M8 X 20MM / From: K2000001 IN STOCK	$2.23	4
HN1	FX110046	NUT - HEX.	FX110046 NUT - HEX. M10 / From: K2000001	$0.35	2
HN2	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer / From: K2000001	$0.63	2
HS1	RYP500190	SCREW IN STOCK	RYP500190 SCREW Bracket, Hexagonal Head, M6 x 12MM / From: K2000001 IN STOCK	$0.62	2
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM / From: K2000001	$1.97	2
5A231	LR082692	CLAMP - EXHAUST	LR082692 CLAMP - EXHAUST 101 mm, Turbocharger Outlet / From: K2000001	$20.65	1
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: K2000001	$23.23	1
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm, Turbocharger Outlet / From: K2000001	$15.91	1
5E241	LR085942	GASKET - EXHAUST PIPE	LR085942 GASKET - EXHAUST PIPE Post DPF / From: K2000001	$8.04	1
5H221	LR111127	CATALYTIC CONVERTER	LR111127 CATALYTIC CONVERTER From: K2000001	$2,567.05	1
5K291A	LR082694	BRACKET - EXHAUST PIPE MOUNTING	LR082694 BRACKET - EXHAUST PIPE MOUNTING To Transmission / From: K2000001	$28.99	1
5K291B	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING Rear / From: K2000001	$30.11	1
9H334A	LR095891	TUBE - EXHAUST PRESSURE	LR095891 TUBE - EXHAUST PRESSURE Post DPF / From: K2000001	$36.00	1
9H334B	LR095892	TUBE - EXHAUST PRESSURE	LR095892 TUBE - EXHAUST PRESSURE Pre DPF / From: K2000001	$39.68	1
5230	LR105432	PIPE - EXHAUST	LR105432 PIPE - EXHAUST From: K2000001	$673.81	1
