Name: Front Exhaust System (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, EU6D Diesel + DPF Emissions, EU6 + DPF Emissions, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001)
Rating: 4.9 (1 reviews)

Front Exhaust System (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, EU6D Diesel + DPF Emissions, EU6 + DPF Emissions, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Front Exhaust System (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, EU6D Diesel + DPF...

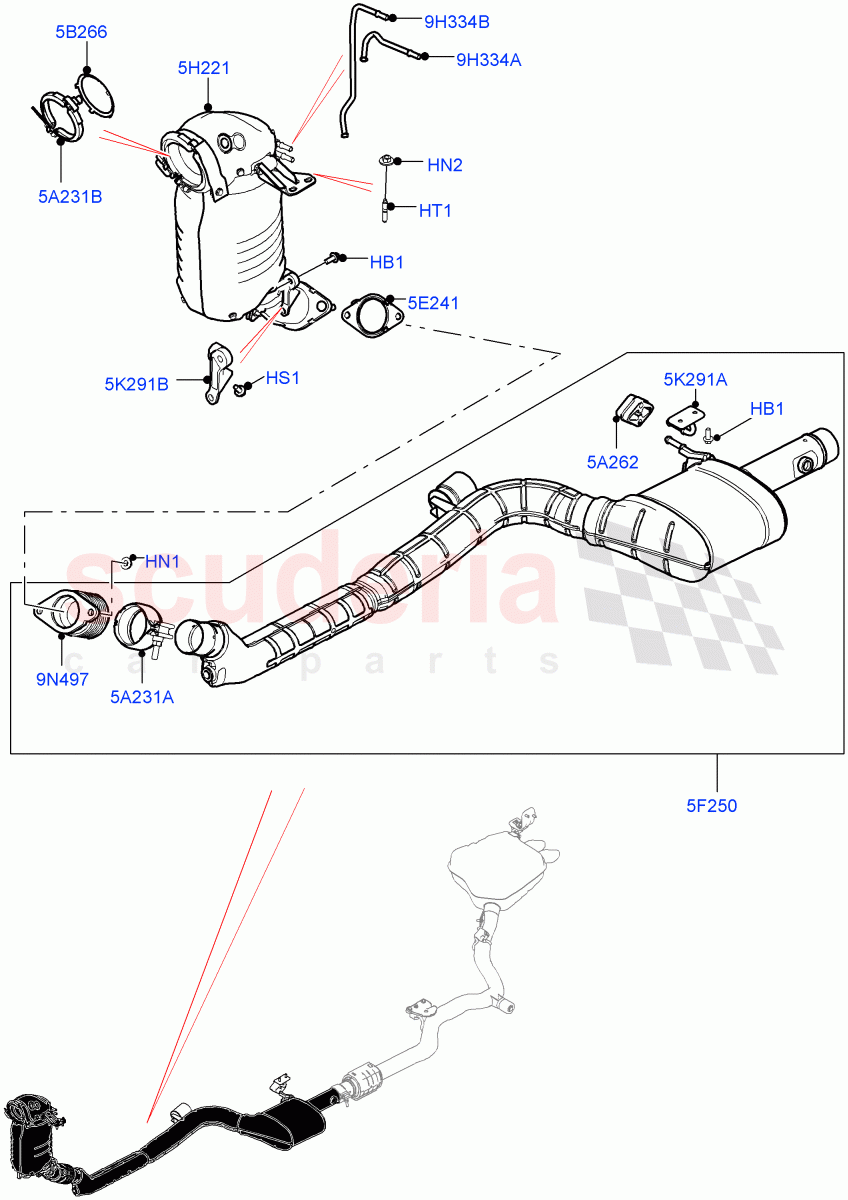

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX110046	NUT - HEX.	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500190	SCREW	$0.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104929	INSULATOR - RUBBER	$8.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	$15.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085942	GASKET - EXHAUST PIPE	$8.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082725	CATALYST - EXHAUST	$3,916.53	To Order
	LR113601	CATALYST AND PARTICLE FILTER	$2,586.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082724	FILTER - DIESEL PARTICLE	$3,431.22	To Order
	LR082723	FILTER - DIESEL PARTICLE	$3,174.24	To Order
	LR111132	FILTER - DIESEL PARTICLE	$2,503.61	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR088316	PIPE - EXHAUST	$370.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007465	CLAMP	$47.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082692	CLAMP - EXHAUST	$20.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082694	BRACKET - EXHAUST PIPE MOUNTING	$28.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095892	TUBE - EXHAUST PRESSURE	$39.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095891	TUBE - EXHAUST PRESSURE	$36.00	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Bracket, Hexagonal Head, M8 X 20MM IN STOCK	$2.23	4
HN1	FX110046	NUT - HEX.	FX110046 NUT - HEX. M10	$0.35	2
HN2	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. 3.0L AJ20D6 Diesel High / M8 Hex, Nut And Washer	$0.63	2
HS1	RYP500190	SCREW IN STOCK	RYP500190 SCREW Bracket, Hexagonal Head, M6 x 12MM IN STOCK	$0.62	2
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM	$1.97	2
5A231A	LR007465	CLAMP	LR007465 CLAMP 60MM, Catalyst	$47.87	1
5A231B	LR082692	CLAMP - EXHAUST	LR082692 CLAMP - EXHAUST 101 mm, Turbocharger Outlet	$20.65	1
5A262	LR104929	INSULATOR - RUBBER	LR104929 INSULATOR - RUBBER	$8.97	1
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm, To DPF	$15.91	1
5E241	LR085942	GASKET - EXHAUST PIPE	LR085942 GASKET - EXHAUST PIPE	$8.04	1
5F250	LR082725	CATALYST - EXHAUST	LR082725 CATALYST - EXHAUST EU6 + DPF Emissions	$3,916.53	1
5F250	LR113601	CATALYST AND PARTICLE FILTER	LR113601 CATALYST AND PARTICLE FILTER EU6D Diesel + DPF Emissions / From: KA000001	$2,586.83	1
5H221	LR082724	FILTER - DIESEL PARTICLE	LR082724 FILTER - DIESEL PARTICLE 2.0L I4 DSL HIGH DOHC AJ200 / To: JA047465	$3,431.22	1
5H221	LR082723	FILTER - DIESEL PARTICLE	LR082723 FILTER - DIESEL PARTICLE 2.0L I4 DSL MID DOHC AJ200 / To: JA047465	$3,174.24	1
5H221	LR111132	FILTER - DIESEL PARTICLE	LR111132 FILTER - DIESEL PARTICLE 2.0L I4 DSL MID DOHC AJ200, EU6 + DPF Emissions / From: JA047466	$2,503.61	1
5H221	LR111128	FILTER - DIESEL PARTICLE	LR111128 FILTER - DIESEL PARTICLE 2.0L I4 DSL HIGH DOHC AJ200, EU6 + DPF Emissions / From: JA047466	$2,317.58	1
5H221	LR112141	CATALYTIC CONVERTER	LR112141 CATALYTIC CONVERTER EU6D Diesel + DPF Emissions / From: KA000001	$2,295.71	1
5K291A	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING Catalyst	$30.11	1
5K291B	LR082694	BRACKET - EXHAUST PIPE MOUNTING	LR082694 BRACKET - EXHAUST PIPE MOUNTING Transmission	$28.99	1
9H334A	LR095892	TUBE - EXHAUST PRESSURE	LR095892 TUBE - EXHAUST PRESSURE Pre DPF	$39.68	1
9H334B	LR095891	TUBE - EXHAUST PRESSURE	LR095891 TUBE - EXHAUST PRESSURE Post DPF	$36.00	1
9N497	LR088316	PIPE - EXHAUST	LR088316 PIPE - EXHAUST Catalyst, Flexible, Inlet	$370.61	1
