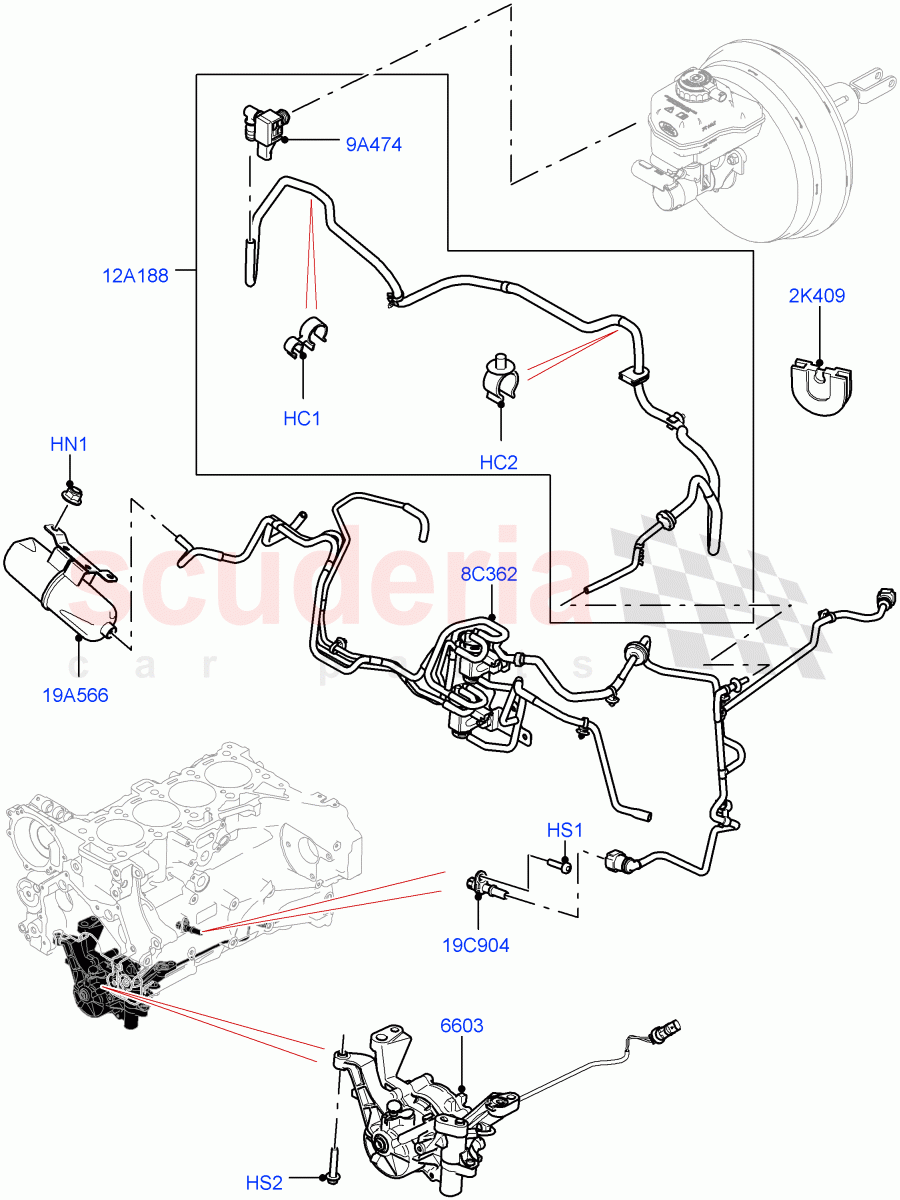

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR049402	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087667	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081604	GROMMET - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081631	SENSOR - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082299	RESERVOIR - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073665	CONNECTOR - VACUUM TUBE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR049402	CLIP - DOUBLE	LR049402 CLIP - DOUBLE Double, To Vacuum Hose	-	1	Enquire
HC2	LR087667	CLIP - SPECIAL	LR087667 CLIP - SPECIAL To Vacuum Hose	-	1	Enquire
HN1	FX106046	NUT - FLANGED	FX106046 NUT - FLANGED Hexagonal Head, M6, Reservoir	-	2	Enquire
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM, Pump - Vacuum	-	4	Enquire
HS2	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector	-	1	Enquire
2K409	LR081604	GROMMET - BRAKE PIPE	LR081604 GROMMET - BRAKE PIPE Blanking	-	1	Enquire
8C362	LR100558	HOSE - VACUUM CONTROL HARNESS	LR100558 HOSE - VACUUM CONTROL HARNESS Stage V Plus DPF / Vacuum Control Harness / From: JA000001	-	1	Enquire
8C362	LR082320	HOSE - VACUUM CONTROL HARNESS	LR082320 HOSE - VACUUM CONTROL HARNESS EU6 + DPF Emissions / Vacuum Control Harness	-	1	Enquire
9A474	LR081631	SENSOR - VACUUM	LR081631 SENSOR - VACUUM	-	1	Enquire
12A188	LR087512	HOSE - VACUUM	LR087512 HOSE - VACUUM To Brake Booster / To: HA999999	-	1	Enquire
12A188	LR099159	HOSE - VACUUM	LR099159 HOSE - VACUUM To Brake Booster / From: JA000001	-	1	Enquire
19A566	LR082299	RESERVOIR - VACUUM	LR082299 RESERVOIR - VACUUM	-	1	Enquire
19C904	LR073665	CONNECTOR - VACUUM TUBE	LR073665 CONNECTOR - VACUUM TUBE	-	1	Enquire
6603	LR087668	PUMP - OIL & VACUUM	LR087668 PUMP - OIL & VACUUM To: JA049645	-	1	Enquire
6603	LR110501	PUMP - OIL & VACUUM	LR110501 PUMP - OIL & VACUUM From: JA049646	-	1	Enquire
