Exhaust Fluid Injection System (Nitra Plant Build, Tank And Lines) (2.0L I4 Dsl Mid Dohc Aj200,...

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Exhaust Fluid Injection System (Nitra Plant Build, Tank and Lines) (2.0L I4 DSL MID DOHC AJ200,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000628 BOLT $4.40 To Order
Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX $1.01 To Order
Photo Part No Description Price (each) Stock
LR078393 BOLT AND WASHER - HEX.HEAD $1.54 To Order
Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.63 To Order
Photo Part No Description Price (each) Stock
FS108206 BOLT $2.23 IN STOCK
Photo Part No Description Price (each) Stock
LR036382 CLIP $0.55 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.92 IN STOCK
Photo Part No Description Price (each) Stock
LR101817 GROMMET - WIRING $3.94 To Order
Photo Part No Description Price (each) Stock
LR104346 BOLT - HEX. HEAD - FLANGED $5.77 To Order
Photo Part No Description Price (each) Stock
LR112101 TANK&SHIELD - DIESEL EXHAUST FLUID $1,007.91 To Order
Photo Part No Description Price (each) Stock
LR062383 TANK&SENDER - DIESEL EXHAUST FLUID $768.38 To Order
Photo Part No Description Price (each) Stock
LR084743 PUMP - DIESEL EXHAUST FLUID $533.72 To Order
Photo Part No Description Price (each) Stock
LR090186 SHIELD - TANK $154.81 To Order
Photo Part No Description Price (each) Stock
LR104348 TUBE - FUEL $106.99 To Order
Photo Part No Description Price (each) Stock
LR082326 BRACKET - FUEL LINES $7.40 To Order
Photo Part No Description Price (each) Stock
LR078768 CAP - FILLER $25.95 To Order
Photo Part No Description Price (each) Stock
LR092720 PIPE - FILLER $137.28 To Order
Photo Part No Description Price (each) Stock
LR062403 HOSE - TANK $36.31 To Order
Photo Part No Description Price (each) Stock
LR088517 TUBE - BREATHER $70.60 To Order
Photo Part No Description Price (each) Stock
LR071240 TUBE - BREATHER $60.96 To Order
Photo Part No Description Price (each) Stock
LR082323 PIPE - TANK VENT $45.96 To Order
Photo Part No Description Price (each) Stock
LR071891 HOSE - TANK $65.74 IN STOCK
Photo Part No Description Price (each) Stock
LR071243 HOSE - TANK $50.54 To Order
Photo Part No Description Price (each) Stock
LR111541 TUBE - DIESEL EXHAUST FLUID FEED $111.58 To Order
LR137513 TUBE - DIESEL EXHAUST FLUID FEED $117.81 To Order
Photo Part No Description Price (each) Stock
LR111544 TUBE - DIESEL EXHAUST FLUID FEED $117.81 To Order
View All

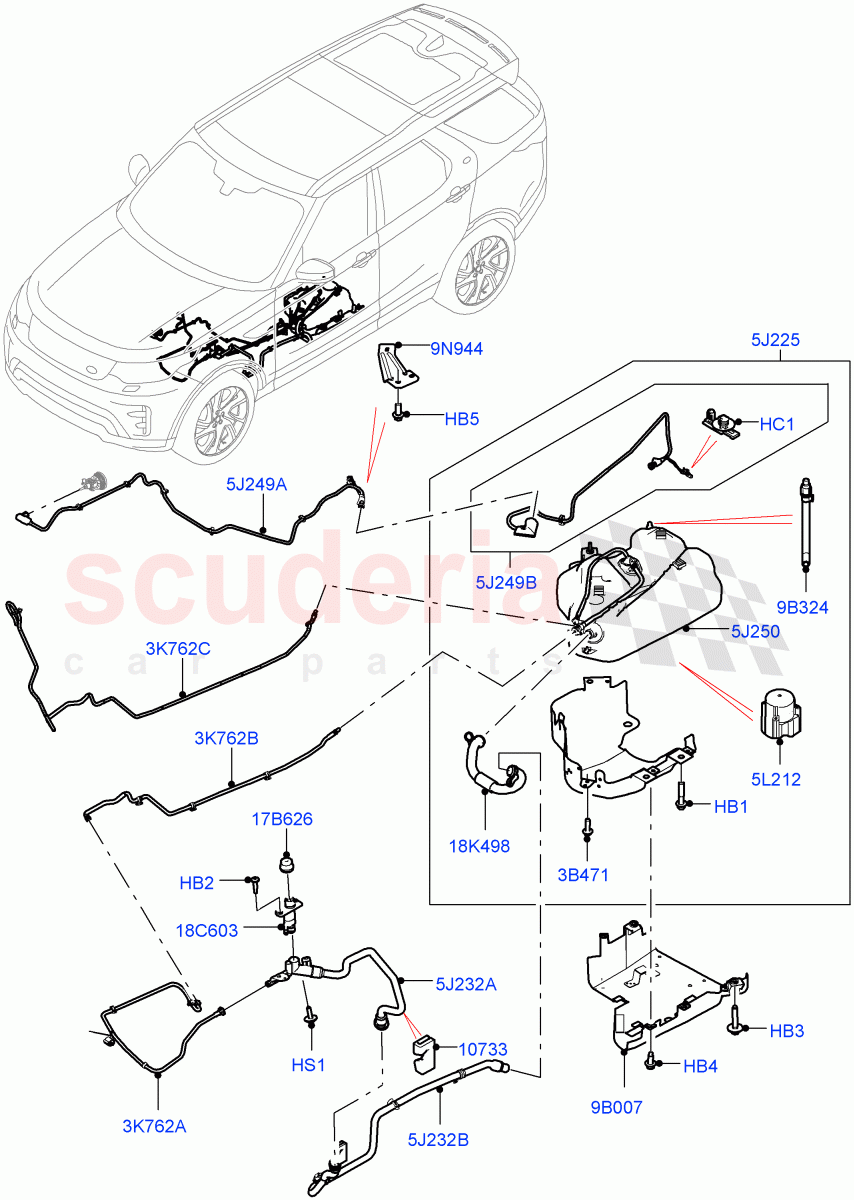

Exhaust Fluid Injection System (Nitra Plant Build, Tank and Lines) (2.0L I4 DSL MID DOHC AJ200, With Diesel Exh Fluid Emission Tank, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000628
BOLT
Cradle To Body, Hexagonal Head, M8 x 40MM / From: K2000001 		$4.40 3
HB2 LR034354
BOLT - PAN - TORX
Filler Neck, M6 x 19MM, Torx / From: K2000001 		$1.01 2
HB3 LR078393
BOLT AND WASHER - HEX.HEAD
Cradle To Body, M8 x 40MM / From: K2000001 		$1.54 2
HB4 RYG500200
BOLT
Cradle To Body, Hexagonal Head, M8 X 16MM / From: K2000001 		$0.63 1
HB5 FS108206
BOLT
Bracket, Hexagonal Head, M8 X 20MM / From: K2000001
IN STOCK 		$2.23 2
HC1 LR036382
CLIP
6.5 x 5MM / From: K2000001 		$0.55 1
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: K2000001
IN STOCK 		$0.92 1
3B471 LR104346
BOLT - HEX. HEAD - FLANGED
From: K2000001 		$5.77 1
3K762A LR088517
TUBE - BREATHER
Front / From: K2000001 		$70.60 1
3K762B LR071240
TUBE - BREATHER
Centre / From: K2000001 		$60.96 1
3K762C LR082323
PIPE - TANK VENT
From: K2000001 		$45.96 1
5J225 LR112101
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: K2000001 		$1,007.91 1
5J232A LR071891
HOSE - TANK
Front, Pipe / From: K2000001
IN STOCK 		$65.74 1
5J232B LR071243
HOSE - TANK
Centre, Pipe / From: K2000001 		$50.54 1
5J249A LR111541
TUBE - DIESEL EXHAUST FLUID FEED
Diesel Exhaust Fluid / From: K2000001 / To: L2420554 		$111.58 1
5J249A LR137513
TUBE - DIESEL EXHAUST FLUID FEED
Diesel Exhaust Fluid / From: L2420555 		$117.81 1
5J249B LR111544
TUBE - DIESEL EXHAUST FLUID FEED
Feed / From: K2000001 		$117.81 1
5J250 LR062383
TANK&SENDER - DIESEL EXHAUST FLUID
With Pump / From: K2000001 		$768.38 1
5L212 LR084743
PUMP - DIESEL EXHAUST FLUID
Service Kit / From: K2000001 		$533.72 1
9B007 LR090186
SHIELD - TANK
With Fixing Parts / From: K2000001 		$154.81 1
9B324 LR104348
TUBE - FUEL
From: K2000001 		$106.99 1
9N944 LR082326
BRACKET - FUEL LINES
Tube Support / From: K2000001 		$7.40 1
17B626 LR078768
CAP - FILLER
Filler Neck / From: K2000001 		$25.95 1
18C603 LR092720
PIPE - FILLER
Filler Neck / From: K2000001 		$137.28 1
18K498 LR062403
HOSE - TANK
To Tank / From: K2000001 		$36.31 1
10733 LR101817
GROMMET - WIRING
From: K2000001 		$3.94 1
