Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 Dsl Mid Dohc Aj200, 2.0L I4 Dsl...

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR082795 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR097266 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073736 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR018267 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR105592 SEAL - THERMOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
LR081665 TUBE - BY-PASS Enquire To Order
Photo Part No Description Price (each) Stock
LR081683 THERMOSTAT AND HOUSING Enquire To Order
LR105974 THERMOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
LR085514 CONNECTION - WATER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR105595 SENSOR - ENGINE COOLANT TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR105610 RETAINER - SENSOR CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR081684 TUBE - BY-PASS Enquire To Order
Photo Part No Description Price (each) Stock
LR081670 HOSE - WATER BY-PASS Enquire To Order
View All

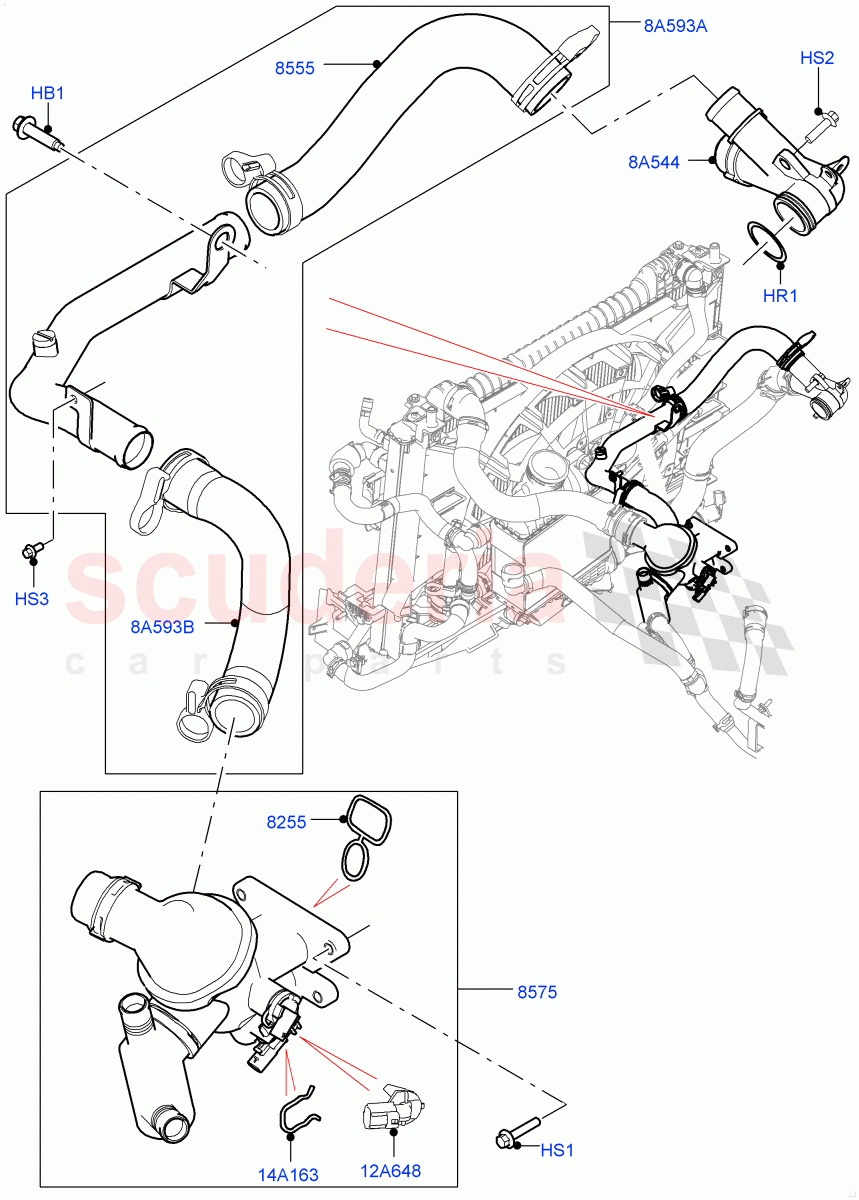

Thermostat/Housing & Related Parts (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR082795
BOLT - HEX.HEAD
Hexagonal Head, M12 X 35MM 		- 1 Enquire
HR1 LR097266
O-RING 		- 1 Enquire
HS1 LR073648
SCREW
Hexagonal Head, M6 x 30MM, Thermostat Housing 		- 4 Enquire
HS2 LR073736
SCREW
M8 X 30MM 		- 2 Enquire
HS3 LR018267
SCREW
M6 X 20MM, Torx 		- 1 Enquire
8A544 LR085514
CONNECTION - WATER OUTLET
EGR Cooler 		- 1 Enquire
8A593A LR081684
TUBE - BY-PASS 		- 1 Enquire
8A593B LR081670
HOSE - WATER BY-PASS 		- 1 Enquire
12A648 LR105595
SENSOR - ENGINE COOLANT TEMPERATURE 		- 1 Enquire
14A163 LR105610
RETAINER - SENSOR CLIP 		- 1 Enquire
8255 LR105592
SEAL - THERMOSTAT
Thermostat And Housing Assy 		- 1 Enquire
8555 LR081665
TUBE - BY-PASS
Tube Water By-Pass 		- 1 Enquire
8575 LR081683
THERMOSTAT AND HOUSING
Thermostat And Housing With Sensor / To: HA027949 		- 1 Enquire
8575 LR105974
THERMOSTAT
Thermostat And Housing With Sensor / From: HA027950 		- 1 Enquire
