Name: Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, With Standard Engine Cooling System) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, With Standard Engine Cooling System) ((V) FROMKA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, With Standard...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR090631	CLIP - HOSE	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081662	HOSE - RADIATOR	$223.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095815	HOSE - HEATER WATER	$64.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081656	HOSE - RADIATOR	$62.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084402	HOSE - WATER	$63.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106823	HOSE - RADIATOR	$50.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108580	HOSE - WATER	$38.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081671	HOSE - WATER INLET	$48.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062105	HOSE - WATER	$58.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081658	HOSE - RADIATOR TO ENG. VENT ELBOW	$62.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085590	HOSE - COOLANT BLEED	$66.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$47.02	To Order

View All

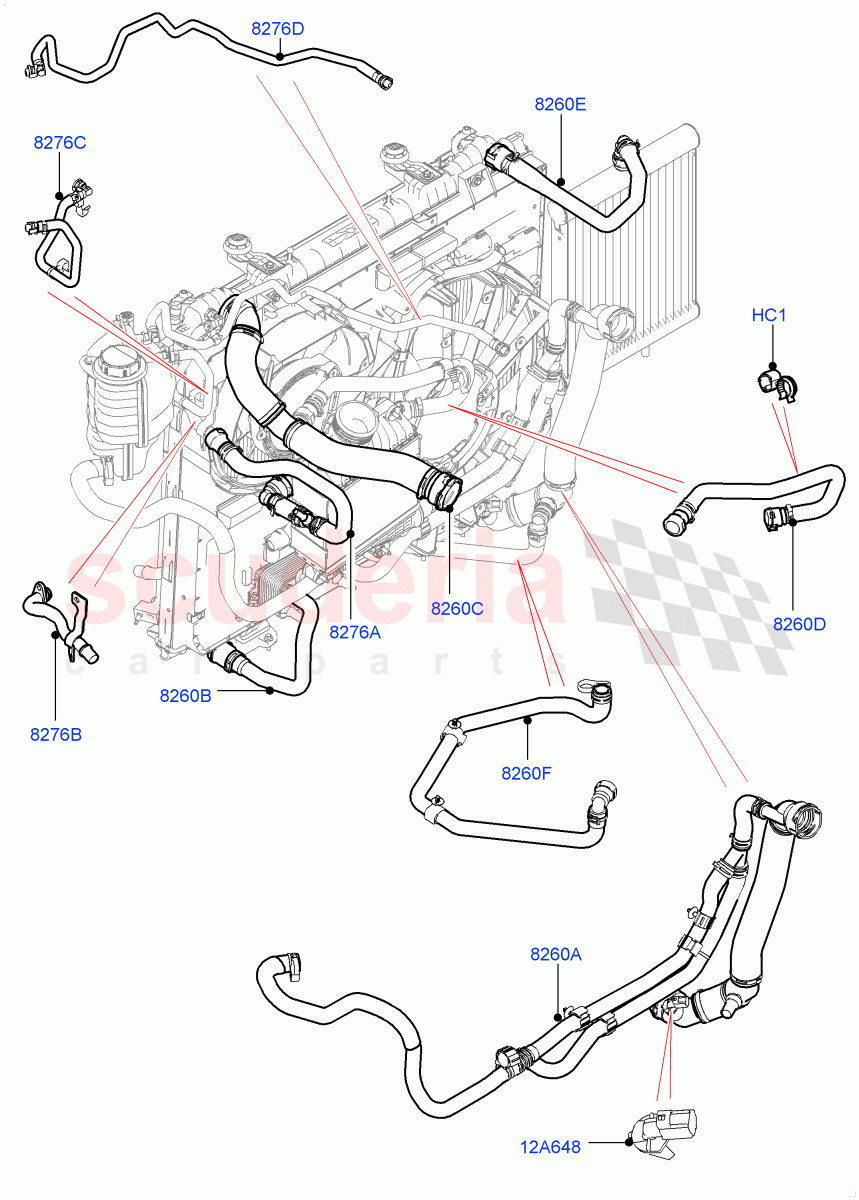

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR090631	CLIP - HOSE	LR090631 CLIP - HOSE Double / From: KA000001	$2.47	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: KA000001	$47.02	1
8260A	LR081662	HOSE - RADIATOR	LR081662 HOSE - RADIATOR Primary / From: KA000001	$223.12	1
8260B	LR095815	HOSE - HEATER WATER	LR095815 HOSE - HEATER WATER From Transmission Oil Cooler To Radiator / From: KA000001	$64.14	1
8260C	LR081656	HOSE - RADIATOR	LR081656 HOSE - RADIATOR Engine To Radiator / From: KA000001	$62.98	1
8260D	LR084402	HOSE - WATER	LR084402 HOSE - WATER Water Charge Air Cooler / From: KA000001	$63.33	1
8260E	LR106823	HOSE - RADIATOR	LR106823 HOSE - RADIATOR Auxiliary, Radiator / From: KA000001	$50.11	1
8260F	LR108580	HOSE - WATER	LR108580 HOSE - WATER RH, Auxiliary Radiator, Outlet / From: KA000001	$38.89	1
8276A	LR081671	HOSE - WATER INLET	LR081671 HOSE - WATER INLET Water Charge Air Cooler / From: KA000001	$48.58	1
8276B	LR062105	HOSE - WATER	LR062105 HOSE - WATER Water Charge Air Cooler / From: KA000001	$58.84	1
8276C	LR081658	HOSE - RADIATOR TO ENG. VENT ELBOW	LR081658 HOSE - RADIATOR TO ENG. VENT ELBOW Radiator Degas Line / From: KA000001	$62.73	1
8276D	LR085590	HOSE - COOLANT BLEED	LR085590 HOSE - COOLANT BLEED To Expansion Tank / From: KA000001	$66.71	1

Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200, With Standard...

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]
