Name: Inlet Manifold (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMK2000001)
Rating: 4.0 (1 reviews)

Inlet Manifold (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Inlet Manifold (Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMK2000001)

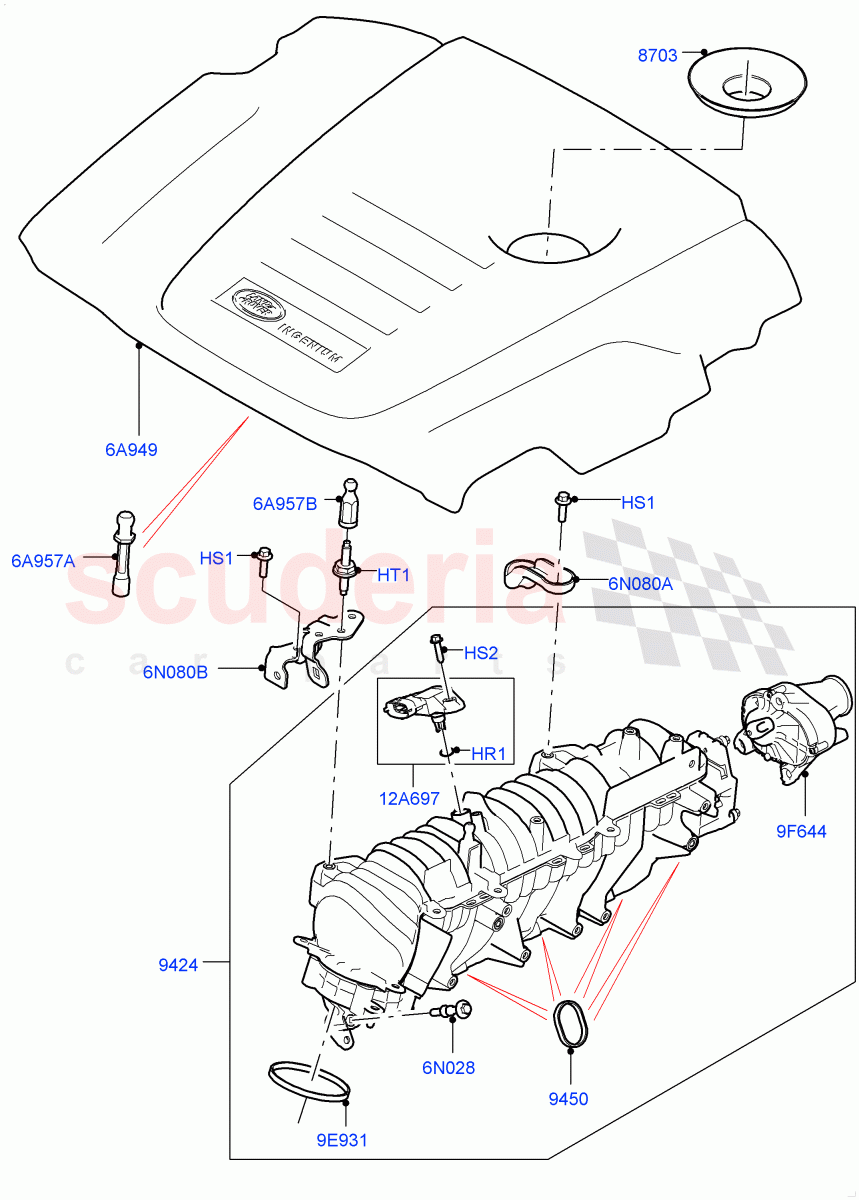

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012505	STUD	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	$12.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085939	MANIFOLD - INLET	$617.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR074070	GASKET - INTAKE MANIFOLD	$10.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097161	COVER - ENGINE TOP	$298.54	To Order
	LR137025	COVER - ENGINE TOP	$308.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$4.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	$15.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085941	ACTUATOR - VARIABLE INTAKE SYSTEM	$211.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090375	SENSOR - AIR TEMPERATURE & PRESSURE	$120.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082528	STUD - BALL	$7.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082539	PIN	$4.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073653	BRACKET - MANIFOLD	$18.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090404	BRACKET - MANIFOLD	$18.45	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, MAP Sensor / From: K2000001 IN STOCK	$4.47	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: K2000001 IN STOCK	$1.54	4
HS2	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, Sensor / From: K2000001	$0.59	1
HT1	LR012505	STUD	LR012505 STUD M6 x 15MM / From: K2000001	$0.97	1
6A949	LR097161	COVER - ENGINE TOP	LR097161 COVER - ENGINE TOP Engine / From: K2000001 / To: K2999999	$298.54	1
6A949	LR137025	COVER - ENGINE TOP	LR137025 COVER - ENGINE TOP Engine / From: L2000001	$308.40	1
6A957A	LR082528	STUD - BALL IN STOCK	LR082528 STUD - BALL Ball Stud, Engine Cover / From: K2000001 IN STOCK	$7.97	1
6A957B	LR082539	PIN	LR082539 PIN Ball Stud, Engine Cover / From: K2000001	$4.47	1
6N028	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: K2000001	$4.84	9
6N080A	LR073653	BRACKET - MANIFOLD	LR073653 BRACKET - MANIFOLD Rear / From: K2000001	$18.98	1
6N080B	LR090404	BRACKET - MANIFOLD	LR090404 BRACKET - MANIFOLD Front / From: K2000001	$18.45	1
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake / From: K2000001	$15.25	1
9F644	LR085941	ACTUATOR - VARIABLE INTAKE SYSTEM	LR085941 ACTUATOR - VARIABLE INTAKE SYSTEM From: K2000001	$211.60	1
12A697	LR090375	SENSOR - AIR TEMPERATURE & PRESSURE	LR090375 SENSOR - AIR TEMPERATURE & PRESSURE Pressure, Temperature / From: K2000001	$120.25	1
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: K2000001	$12.79	1
9424	LR085939	MANIFOLD - INLET IN STOCK	LR085939 MANIFOLD - INLET From: K2000001 IN STOCK	$617.72	1
9450	LR074070	GASKET - INTAKE MANIFOLD	LR074070 GASKET - INTAKE MANIFOLD From: K2000001	$10.79	8
