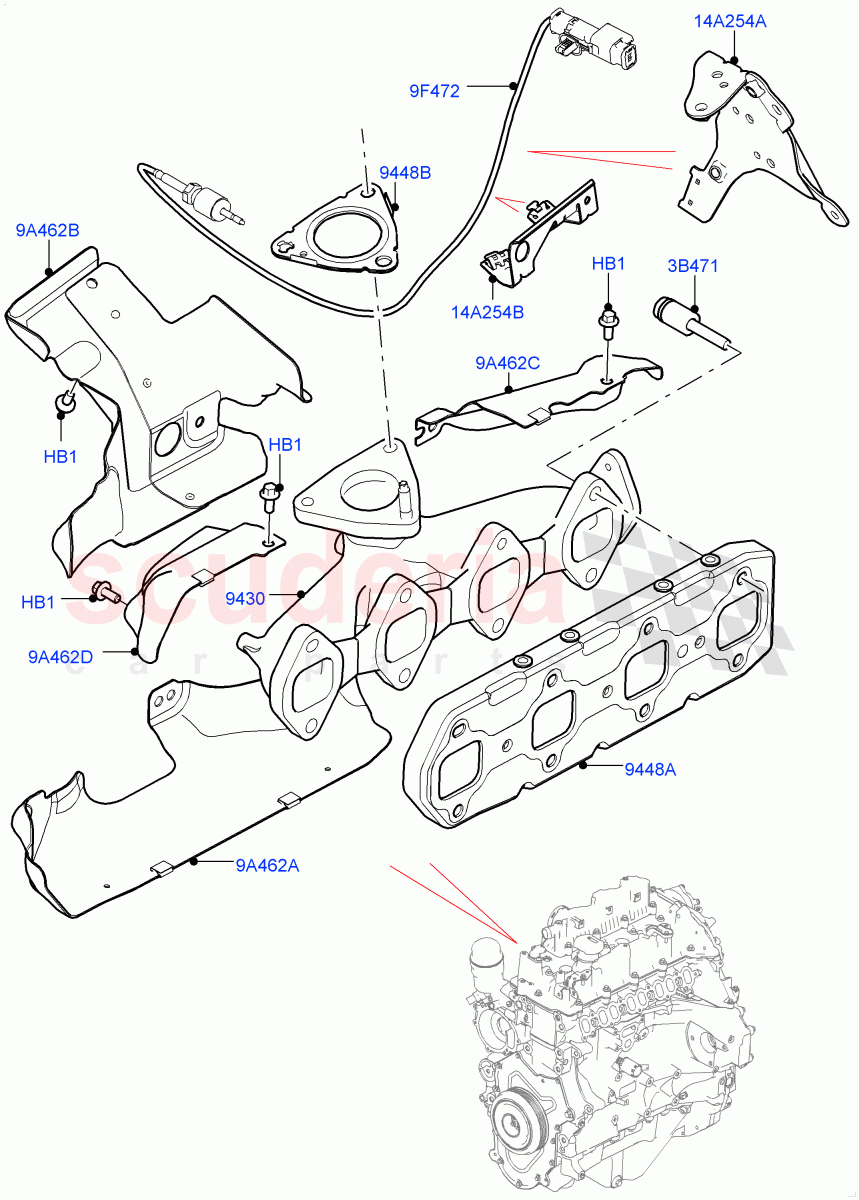

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073663	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073658	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073723	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082480	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073659	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081627	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073660	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073661	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104408	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124570	BRACKET - CABLE SUPPORT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM	-	5	Enquire
3B471	LR073663	BOLT - SPECIAL	LR073663 BOLT - SPECIAL	-	8	Enquire
9A462A	LR073659	SHIELD - EXHAUST MANIFOLD HEAT	LR073659 SHIELD - EXHAUST MANIFOLD HEAT Bottom	-	1	Enquire
9A462B	LR081627	SHIELD - EXHAUST MANIFOLD HEAT	LR081627 SHIELD - EXHAUST MANIFOLD HEAT Centre	-	1	Enquire
9A462C	LR073660	SHIELD - EXHAUST MANIFOLD HEAT	LR073660 SHIELD - EXHAUST MANIFOLD HEAT Engine Rear	-	1	Enquire
9A462D	LR073661	SHIELD - EXHAUST MANIFOLD HEAT	LR073661 SHIELD - EXHAUST MANIFOLD HEAT Engine Front	-	1	Enquire
9F472	LR082480	SENSOR - EXHAUST GAS - TEMPERATURE	LR082480 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature	-	1	Enquire
14A254A	LR104408	BRACKET	LR104408 BRACKET Sensor Cable	-	1	Enquire
14A254B	LR124570	BRACKET - CABLE SUPPORT	LR124570 BRACKET - CABLE SUPPORT Sensor Cable	-	1	Enquire
9430	LR081624	MANIFOLD - EXHAUST	LR081624 MANIFOLD - EXHAUST To: HA010936	-	1	Enquire
9430	LR104015	MANIFOLD - EXHAUST	LR104015 MANIFOLD - EXHAUST From: HA010937	-	1	Enquire
9448A	LR073658	GASKET	LR073658 GASKET Manifold To Cylinder Head	-	1	Enquire
9448B	LR073723	GASKET - EXHAUST MANIFOLD	LR073723 GASKET - EXHAUST MANIFOLD Turbocharger	-	1	Enquire
