Heater/Air Cond.external Components (Main Unit) (Halewood (Uk)) ((V) Fromlh000001)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Heater/Air Cond.External Components (Main Unit) (Halewood (UK)) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR005381 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR115870 KIT - SEAL Enquire To Order
LR145241 KIT - SEAL Enquire To Order
LR159885 KIT - SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR124587 BRACKET - SUPPORT Enquire To Order
LR145227 BRACKET - SUPPORT Enquire To Order
LR145227 BRACKET - SUPPORT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115673 MOTOR AND FAN - BLOWER Enquire To Order
LR115674 MOTOR AND FAN - BLOWER Enquire To Order
LR159881 MOTOR AND FAN - BLOWER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115768 HOUSING - HEATER BLOWER Enquire To Order
LR115770 HOUSING - HEATER BLOWER Enquire To Order
LR145228 HOUSING - HEATER BLOWER Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115711 COVER - HEATER BLOWER Enquire To Order
LR115712 COVER - HEATER BLOWER Enquire To Order
LR115713 COVER - HEATER BLOWER Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR003561 BRACKET - HEATER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR115866 RESISTOR - HEATER BLOWER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR115829 STEPPER MOTOR - HEATER Enquire To Order
Photo Part No Description Price (each) Stock
LR134538 COVER - COWL AIR VENT Enquire To Order
LR134539 COVER - COWL AIR VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR003173 LEVER - CONTROL - AIR DISTRIBUTION Enquire To Order
Photo Part No Description Price (each) Stock
LR002681 LEVER - CONTROL - AIR DISTRIBUTION Enquire To Order
Photo Part No Description Price (each) Stock
LR115830 HOUSING - A/C EVAPORATOR AND BLOWER Enquire To Order
LR115833 HOUSING - A/C EVAPORATOR AND BLOWER Enquire To Order
Photo Part No Description Price (each) Stock
LR124588 COVER - HEATER Enquire To Order
LR138731 COVER - HEATER Enquire To Order
LR138731 COVER - HEATER Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

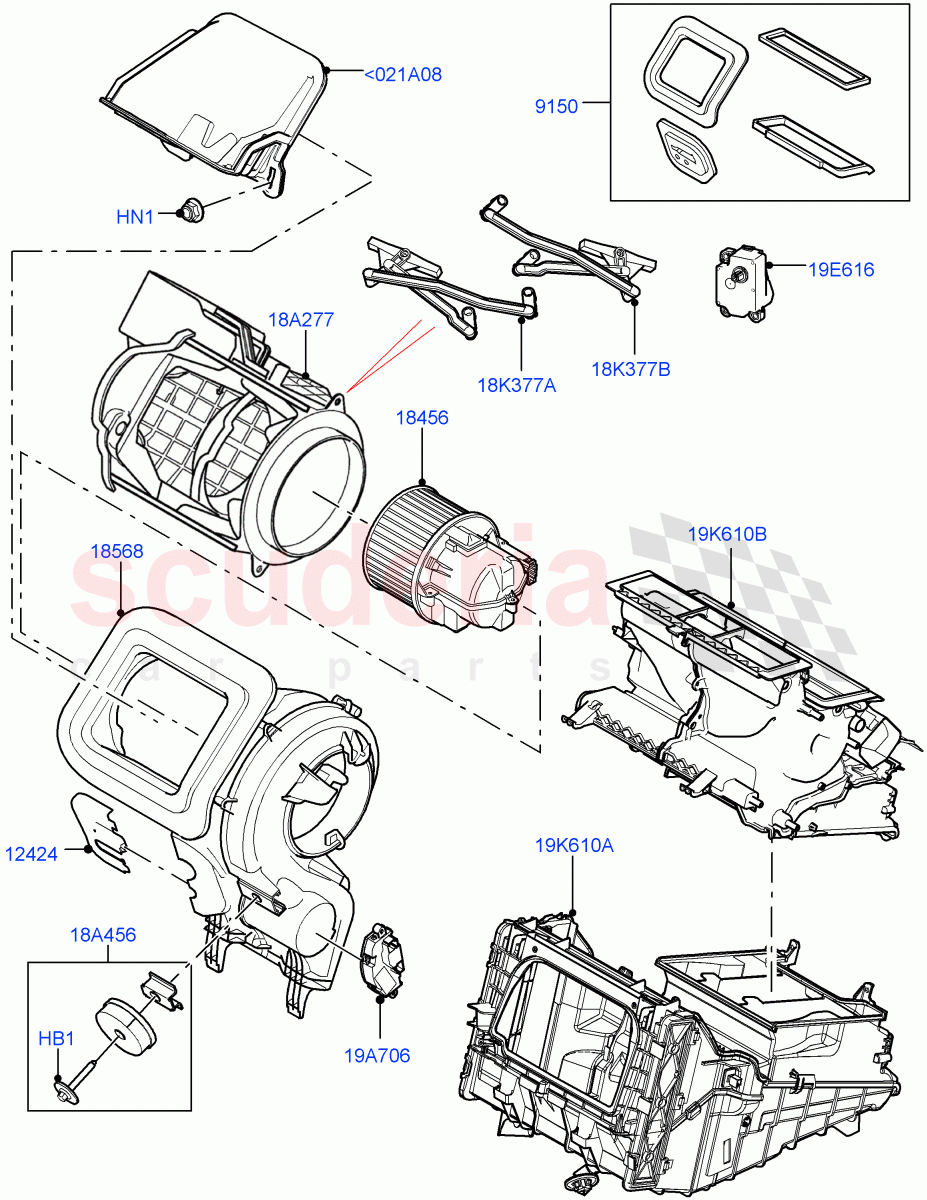

Heater/Air Cond.External Components (Main Unit) (Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A08 LR134538
COVER - COWL AIR VENT
LHD / From: LH000001 		- 1 Enquire
<021A08 LR134539
COVER - COWL AIR VENT
RHD / From: LH000001 		- 1 Enquire
HB1 LR005381
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M6 X 40MM / From: LH000001 		- 1 Enquire
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: LH000001 		- 2 Enquire
18A277 LR115711
COVER - HEATER BLOWER
LHD, Less Air Purifier Sensor / From: LH000001 / To: LH999999 		- 1 Enquire
18A277 LR115712
COVER - HEATER BLOWER
LHD, With Air Purifier Sensor / From: LH000001 / To: LH999999 		- 1 Enquire
18A277 LR115713
COVER - HEATER BLOWER
Less Air Purifier Sensor, RHD / From: LH000001 / To: LH999999 		- 1 Enquire
18A277 LR115715
COVER - HEATER BLOWER
RHD, With Air Purifier Sensor / From: LH000001 / To: LH999999 		- 1 Enquire
18A277 LR115711
COVER - HEATER BLOWER
LHD, Less Air Purifier Sensor, Less Cabin Air Quality Ionisation / From: MH000001 		- 1 Enquire
18A277 LR115712
COVER - HEATER BLOWER
LHD, Less Cabin Air Quality Ionisation, With Air Purifier Sensor / From: MH000001 		- 1 Enquire
18A277 LR115713
COVER - HEATER BLOWER
Less Air Purifier Sensor, Less Cabin Air Quality Ionisation, RHD / From: MH000001 		- 1 Enquire
18A277 LR115715
COVER - HEATER BLOWER
Less Cabin Air Quality Ionisation, RHD, With Air Purifier Sensor / From: MH000001 		- 1 Enquire
18A456 LR003561
BRACKET - HEATER MOUNTING
Service Kit / From: LH000001 		- 1 Enquire
18K377A LR003173
LEVER - CONTROL - AIR DISTRIBUTION
LHD / From: LH000001 		- 1 Enquire
18K377B LR002681
LEVER - CONTROL - AIR DISTRIBUTION
RHD / From: LH000001 		- 1 Enquire
19A706 LR115866
RESISTOR - HEATER BLOWER MOTOR
Blower Motor / From: LH000001 		- 1 Enquire
19E616 LR115829
STEPPER MOTOR - HEATER
Flap Actuator / From: LH000001 		- - Enquire
19K610A LR115830
HOUSING - A/C EVAPORATOR AND BLOWER
LHD / Heater Assy, Lower / From: LH000001 		- 1 Enquire
19K610A LR115833
HOUSING - A/C EVAPORATOR AND BLOWER
RHD / Heater Assy, Lower / From: LH000001 		- 1 Enquire
19K610B LR124588
COVER - HEATER
Heater Assy, Upper / From: LH000001 / To: LH849982 		- 1 Enquire
19K610B LR138731
COVER - HEATER
Heater Assy, Upper / From: LH849983 / To: LH999999 		- 1 Enquire
19K610B LR138731
COVER - HEATER
With ATC Air Con & Row 2 Vents / Heater Assy, Upper / From: MH000001 		- 1 Enquire
19K610B LR145234
COVER - HEATER
2-Zone Climate Cntl w/Row2 Tmp Cntl / Heater Assy, Upper / From: MH000001 		- 1 Enquire
9150 LR115870
KIT - SEAL
Set Of 4 Pieces / From: LH000001 / To: LH999999 		- 1 Enquire
9150 LR145241
KIT - SEAL
Set Of 4 Pieces / From: MH000001 / To: MH999999 		- 1 Enquire
9150 LR159885
KIT - SEAL
Set Of 4 Pieces / From: NH000001 		- 1 Enquire
12424 LR124587
BRACKET - SUPPORT
Heater Pipes, Support Bracket / From: LH000001 / To: LH999999 		- 1 Enquire
12424 LR145227
BRACKET - SUPPORT
Heater Pipes, Support Bracket / From: MH000001 / To: MH999999 		- 1 Enquire
12424 LR145227
BRACKET - SUPPORT
LH, Heater Pipes, Support Bracket / From: NH000001 		- 1 Enquire
12424 LR124587
BRACKET - SUPPORT
RH, Heater Pipes, Support Bracket / From: NH000001 		- 1 Enquire
18456 LR115673
MOTOR AND FAN - BLOWER
LHD / From: LH000001 / To: MH999999 		- 1 Enquire
18456 LR115674
MOTOR AND FAN - BLOWER
RHD / From: LH000001 / To: MH999999 		- 1 Enquire
18456 LR159881
MOTOR AND FAN - BLOWER
LHD / From: NH000001 		- 1 Enquire
18456 LR159882
MOTOR AND FAN - BLOWER
RHD / From: NH000001 		- 1 Enquire
18568 LR115768
HOUSING - HEATER BLOWER
LHD / From: LH000001 / To: LH999999 		- 1 Enquire
18568 LR115770
HOUSING - HEATER BLOWER
RHD / From: LH000001 / To: LH999999 		- 1 Enquire
18568 LR145228
HOUSING - HEATER BLOWER
LHD / From: MH000001 / To: MH999999 		- 1 Enquire
18568 LR145229
HOUSING - HEATER BLOWER
RHD / From: MH000001 / To: MH999999 		- 1 Enquire
18568 LR159883
HOUSING - HEATER BLOWER
LHD / From: NH000001 		- 1 Enquire
18568 LR159884
HOUSING - HEATER BLOWER
RHD / From: NH000001 		- 1 Enquire
