Air Conditioning System (Changsu (China), Less Chiller Unit) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Air Conditioning System (Changsu (China), Less Chiller Unit) ((V) FROMKG446857)

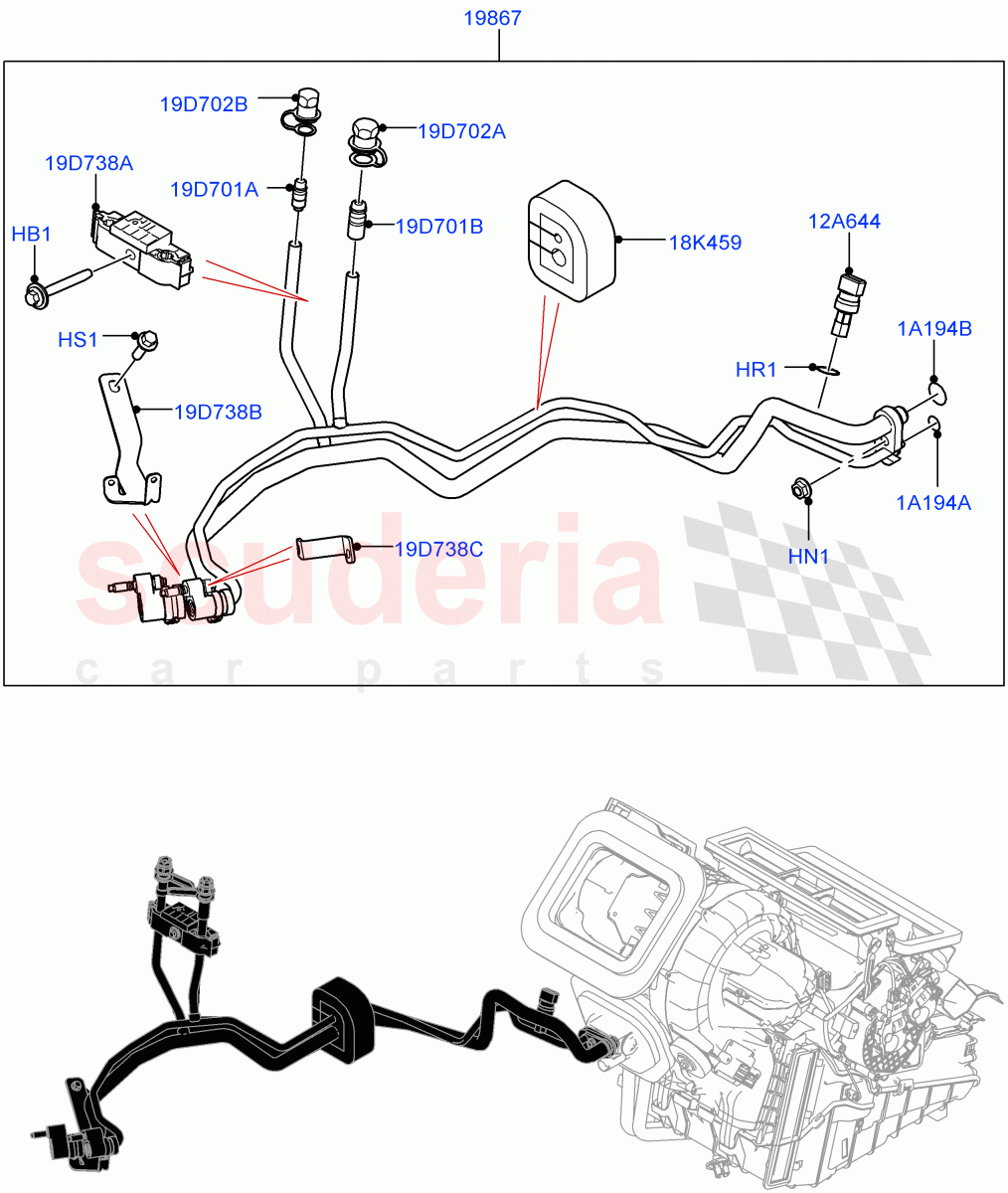

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010925	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002718	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135657	TUBE- A/C EVAPORATOR INLET & OUTLET	Enquire	To Order
	LR139926	TUBE- A/C EVAPORATOR INLET & OUTLET	Enquire	To Order
	LR140026	TUBE- A/C EVAPORATOR INLET & OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086926	SENSOR - REFRIGERANT PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118740	SLEEVE - INSULATING	Enquire	To Order
	LR137865	SLEEVE - INSULATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117493	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117495	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002940	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002941	VALVE - AIR CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002653	CAP - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002654	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117474	BRACKET - A/C PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117475	BRACKET - A/C PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145221	BRACKET - A/C PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010925	BOLT	LR010925 BOLT Hexagonal Head, M6 x 50MM / From: KG446857	-	1	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: KG446856	-	2	Enquire
HR1	LR002718	O-RING	LR002718 O-RING 7.66 x 1.78mm	-	1	Enquire
HS1	VYP500080	BOLT AND WASHER - HEX.HEAD	VYP500080 BOLT AND WASHER - HEX.HEAD Air Duct, Hexagonal Head, M6 X 20MM / From: KG446857	-	1	Enquire
1A194A	LR117493	O-RING	LR117493 O-RING 15.88 X 8.0 / From: KG446857	-	1	Enquire
1A194B	LR117495	O-RING	LR117495 O-RING 25.12 X 17.03 / From: KG446857	-	1	Enquire
12A644	LR086926	SENSOR - REFRIGERANT PRESSURE	LR086926 SENSOR - REFRIGERANT PRESSURE Refrigerant Pressure Sensor / From: KG446857	-	1	Enquire
18K459	LR118740	SLEEVE - INSULATING	LR118740 SLEEVE - INSULATING Air Conditioning Refrigerant-R134A, Electric Engine Battery-MHEV, Less Chiller Unit / From: KG446857	-	1	Enquire
18K459	LR137865	SLEEVE - INSULATING	LR137865 SLEEVE - INSULATING Electric Engine Battery-PHEV / From: KG446857	-	1	Enquire
19D701A	LR002940	VALVE	LR002940 VALVE Low Pressure Charge Port / From: KG446857	-	1	Enquire
19D701B	LR002941	VALVE - AIR CONDITIONING	LR002941 VALVE - AIR CONDITIONING High Pressure Charge Port / From: KG446857	-	1	Enquire
19D702A	LR002653	CAP - VALVE	LR002653 CAP - VALVE High Pressure Servicing Connection	-	1	Enquire
19D702B	LR002654	CAP	LR002654 CAP Low Pressure Servicing Connection	-	1	Enquire
19D738A	LR117474	BRACKET - A/C PIPE	LR117474 BRACKET - A/C PIPE Charge Port / From: KG446857	-	1	Enquire
19D738B	LR117475	BRACKET - A/C PIPE	LR117475 BRACKET - A/C PIPE Sidemember / From: KG446857	-	1	Enquire
19D738C	LR145221	BRACKET - A/C PIPE	LR145221 BRACKET - A/C PIPE Ports Bracket / From: KG446857	-	1	Enquire
19867	LR135657	TUBE- A/C EVAPORATOR INLET & OUTLET	LR135657 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A, Less Electric Engine Battery / Evaporator Inlet/Outlet / From: KG446857 / To: LG108317	-	1	Enquire
19867	LR139926	TUBE- A/C EVAPORATOR INLET & OUTLET	LR139926 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A, Electric Engine Battery-MHEV, Less Chiller Unit / Evaporator Inlet/Outlet / From: LG108318 / To: MG140568	-	1	Enquire
19867	LR140026	TUBE- A/C EVAPORATOR INLET & OUTLET	LR140026 TUBE- A/C EVAPORATOR INLET & OUTLET Air Conditioning Refrigerant-R134A, Less Chiller Unit / Evaporator Inlet/Outlet / From: MG140569	-	1	Enquire
