Anti-Theft Alarm Systems (Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Anti-Theft Alarm Systems (Halewood (UK))

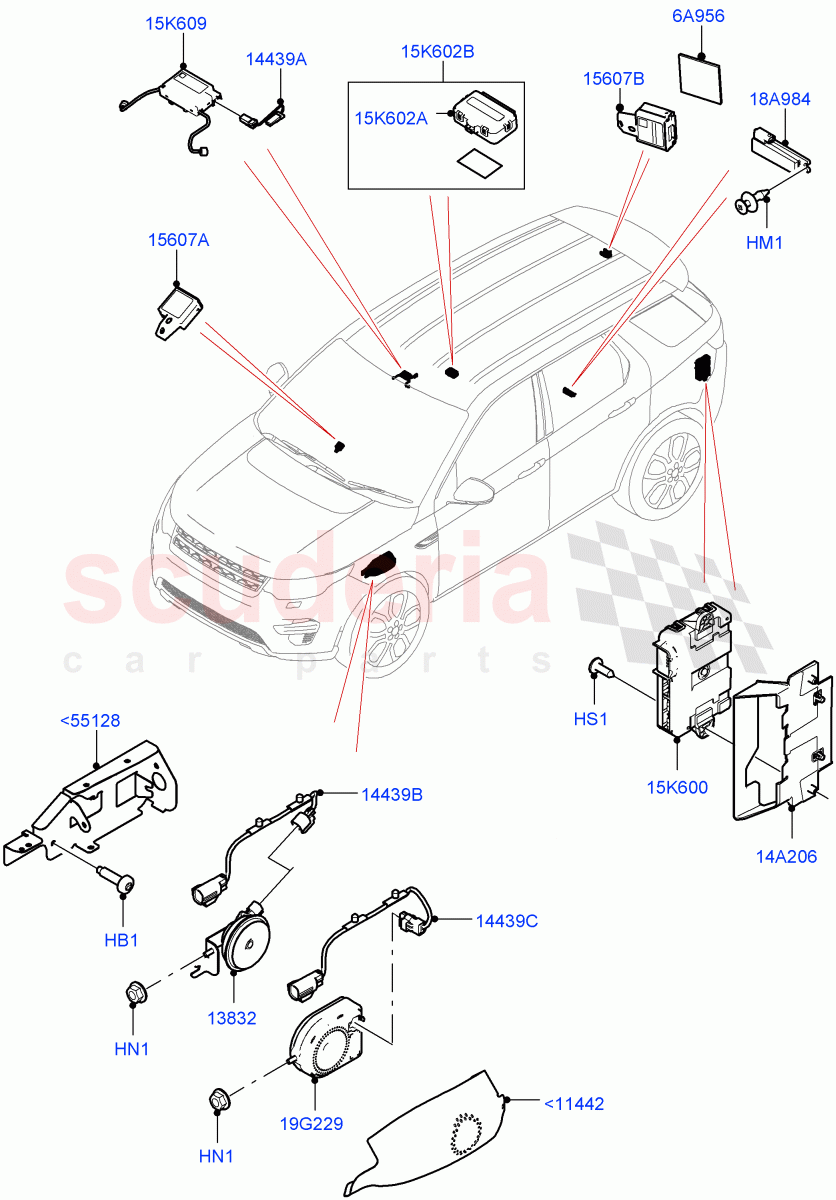

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033002	BOLT AND WASHER - TORX HEAD	Enquire	To Order
	AYG500030	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500040	FASTENER	Enquire	To Order
	LR131781	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500060	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068413	HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094021	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031729	HEAT SHIELD - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039639	BRACKET - HORN	Enquire	To Order
	LR108638	BRACKET - HORN	Enquire	To Order
	LR117362	BRACKET - HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033377	WIRE - SCANNING MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066019	WIRING - SECURITY SOUNDER	Enquire	To Order
	LR076593	WIRING - SECURITY SOUNDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066018	WIRING - SECURITY SOUNDER	Enquire	To Order
	LR076592	WIRING - SECURITY SOUNDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095458	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020114	TRANSCEIVER - ANTI THEFT	Enquire	To Order
	LR115231	TRANSCEIVER - ANTI THEFT	Enquire	To Order
	LR147023	TRANSCEIVER - ANTI THEFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086328	TRANSCEIVER - ANTI THEFT	Enquire	To Order
	LR148094	TRANSCEIVER - ANTI THEFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069782	MODULE - PASSIVE START	Enquire	To Order
	LR069783	MODULE - PASSIVE START	Enquire	To Order
	LR071423	MODULE - PASSIVE START	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR061528	SENSOR AND BRACKET - INTERIOR SCAN	Enquire	To Order
	LR092029	SENSOR AND BRACKET - INTERIOR SCAN	Enquire	To Order
	LR096418	SENSOR AND BRACKET - INTERIOR SCAN	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR012709	ANTENNA - LF	Enquire	To Order
	LR099137	ANTENNA - LF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067841	SIREN - ANTI-THEFT ALARM SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012397	RECEIVER - RADIO REMOTE CONTROL	Enquire	To Order
	LR012398	RECEIVER - RADIO REMOTE CONTROL	Enquire	To Order
	LR080282	RECEIVER - RADIO REMOTE CONTROL	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR138596	RECEIVER - RADIO REMOTE CONTROL	Enquire	To Order
	LR138730	RECEIVER - RADIO REMOTE CONTROL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<11442	LR031729	HEAT SHIELD - EXHAUST	LR031729 HEAT SHIELD - EXHAUST	-	1	Enquire
<55128	LR039639	BRACKET - HORN	LR039639 BRACKET - HORN Siren / To: JH726961	-	1	Enquire
<55128	LR108638	BRACKET - HORN	LR108638 BRACKET - HORN Siren / From: JH726962 / To: KH999999	-	1	Enquire
<55128	LR117362	BRACKET - HORN	LR117362 BRACKET - HORN Siren / From: LH000001	-	1	Enquire
HB1	LR033002	BOLT AND WASHER - TORX HEAD	LR033002 BOLT AND WASHER - TORX HEAD M6 X 20.5, Torx / To: KH999999	-	2	Enquire
HB1	AYG500030	BOLT	AYG500030 BOLT M6 x 15 / From: LH000001	-	2	Enquire
HM1	RYQ500040	FASTENER	RYQ500040 FASTENER 6.25 x 1.6/6MM / To: KH999999	-	4	Enquire
HM1	LR131781	PIN - RETAINING	LR131781 PIN - RETAINING 6.25 x 1.6/6MM / From: LH000001	-	4	Enquire
HN1	FN106042	NUT	FN106042 NUT Hexagonal Head, M6	-	2	Enquire
HS1	VYP500060	SCREW	VYP500060 SCREW 4.8 X 16MM, Torx	-	2	Enquire
6A956	LR094021	FOAM PAD - ENERGY ABSORBING	LR094021 FOAM PAD - ENERGY ABSORBING Vehicle Access-Leisure Activity Key / From: LH000001	-	1	Enquire
14A206	LR095458	BRACKET - SUPPORT	LR095458 BRACKET - SUPPORT	-	1	Enquire
15K600	LR069782	MODULE - PASSIVE START	LR069782 MODULE - PASSIVE START With Keyless Start / To: FH504474	-	1	Enquire
15K600	LR069783	MODULE - PASSIVE START	LR069783 MODULE - PASSIVE START Keyless Entry/Start - Passive / To: FH504474	-	1	Enquire
15K600	LR071423	MODULE - PASSIVE START	LR071423 MODULE - PASSIVE START Keyless Entry/Start - Passive / From: FH504475 / To: GH588329	-	1	Enquire
15K600	LR080756	MODULE - PASSIVE START	LR080756 MODULE - PASSIVE START With Keyless Start / From: GH588330 / To: KH999999	-	1	Enquire
15K600	LR071424	MODULE - PASSIVE START	LR071424 MODULE - PASSIVE START With Keyless Start / From: FH504475 / To: GH588329	-	1	Enquire
15K600	LR080744	MODULE - PASSIVE START	LR080744 MODULE - PASSIVE START Keyless Entry/Start - Passive / From: GH588330 / To: KH999999	-	1	Enquire
15K600	LR117928	MODULE - PASSIVE START	LR117928 MODULE - PASSIVE START With Keyless Start / From: LH000001	-	1	Enquire
15K600	LR117932	MODULE	LR117932 MODULE Keyless Entry/Start - Passive / From: LH000001	-	1	Enquire
15K602A	LR012397	RECEIVER - RADIO REMOTE CONTROL	LR012397 RECEIVER - RADIO REMOTE CONTROL 315 MHZ Door Lock Frequency / To: FH523668	-	1	Enquire
15K602A	LR012398	RECEIVER - RADIO REMOTE CONTROL	LR012398 RECEIVER - RADIO REMOTE CONTROL 433 MHZ Door Lock Frequency / To: GH592378	-	1	Enquire
15K602A	LR080282	RECEIVER - RADIO REMOTE CONTROL	LR080282 RECEIVER - RADIO REMOTE CONTROL 433 MHZ Door Lock Frequency / From: GH592379 / To: GH612011	-	1	Enquire
15K602A	LR113850	RECEIVER - RADIO REMOTE CONTROL	LR113850 RECEIVER - RADIO REMOTE CONTROL 315 MHZ Door Lock Frequency / From: FH523669 / To: KH999999	-	1	Enquire
15K602A	LR117933	RECEIVER - RADIO REMOTE CONTROL	LR117933 RECEIVER - RADIO REMOTE CONTROL 315 MHZ Door Lock Frequency / From: LH000001 / To: LH999999	-	1	Enquire
15K602A	LR117934	RECEIVER - RADIO REMOTE CONTROL	LR117934 RECEIVER - RADIO REMOTE CONTROL 433 MHZ Door Lock Frequency / From: LH000001 / To: LH999999	-	1	Enquire
15K602A	LR143239	RECEIVER - RADIO REMOTE CONTROL	LR143239 RECEIVER - RADIO REMOTE CONTROL 433 MHZ Door Lock Frequency / From: GH612012 / To: KH999999	-	1	Enquire
15K602A	LR149753	RECEIVER - RADIO REMOTE CONTROL	LR149753 RECEIVER - RADIO REMOTE CONTROL 315 MHZ Door Lock Frequency / From: MH000001	-	1	Enquire
15K602A	LR149754	RECEIVER - RADIO REMOTE CONTROL	LR149754 RECEIVER - RADIO REMOTE CONTROL 433 MHZ Door Lock Frequency / From: MH000001	-	1	Enquire
15K602B	LR138596	RECEIVER - RADIO REMOTE CONTROL	LR138596 RECEIVER - RADIO REMOTE CONTROL 315 MHZ Door Lock Frequency / Service Kit In Assembly With A Dual Lock Pad To Fit Where Needed / From: FH523669 / To: LH999999	-	1	Enquire
15K602B	LR138730	RECEIVER - RADIO REMOTE CONTROL	LR138730 RECEIVER - RADIO REMOTE CONTROL 433 MHZ Door Lock Frequency / Service Kit In Assembly With A Dual Lock Pad To Fit Where Needed / From: FH523669 / To: LH999999	-	1	Enquire
15K609	LR061528	SENSOR AND BRACKET - INTERIOR SCAN	LR061528 SENSOR AND BRACKET - INTERIOR SCAN Perimeter / Volume Theft System / To: GH999999	-	1	Enquire
15K609	LR092029	SENSOR AND BRACKET - INTERIOR SCAN	LR092029 SENSOR AND BRACKET - INTERIOR SCAN Perimeter / Volume Theft System / From: HH000001 / To: HH664553	-	1	Enquire
15K609	LR096418	SENSOR AND BRACKET - INTERIOR SCAN	LR096418 SENSOR AND BRACKET - INTERIOR SCAN Perimeter / Volume Theft System / From: HH664554 / To: LH999999	-	1	Enquire
15K609	LR139907	SENSOR AND BRACKET - INTERIOR SCAN	LR139907 SENSOR AND BRACKET - INTERIOR SCAN Perimeter / Volume Theft System / From: MH000001	-	1	Enquire
18A984	LR012709	ANTENNA - LF	LR012709 ANTENNA - LF Remote Keyless Antenna / To: KH999999	-	2	Enquire
18A984	LR099137	ANTENNA - LF	LR099137 ANTENNA - LF Remote Keyless Antenna / From: LH000001	-	2	Enquire
19G229	LR067841	SIREN - ANTI-THEFT ALARM SYSTEM	LR067841 SIREN - ANTI-THEFT ALARM SYSTEM BBU With Tilt Sensor	-	1	Enquire
13832	LR068413	HORN	LR068413 HORN Securty Siren - Less Battery Backup	-	1	Enquire
14439A	LR033377	WIRE - SCANNING MODULE	LR033377 WIRE - SCANNING MODULE Perimeter / Volume Theft System	-	1	Enquire
14439B	LR066019	WIRING - SECURITY SOUNDER	LR066019 WIRING - SECURITY SOUNDER Securty Siren - Less Battery Backup / To: FH519799	-	1	Enquire
14439B	LR076593	WIRING - SECURITY SOUNDER	LR076593 WIRING - SECURITY SOUNDER Securty Siren - Less Battery Backup / From: FH519800	-	1	Enquire
14439C	LR066018	WIRING - SECURITY SOUNDER	LR066018 WIRING - SECURITY SOUNDER BBU With Tilt Sensor / To: FH514499	-	1	Enquire
14439C	LR076592	WIRING - SECURITY SOUNDER	LR076592 WIRING - SECURITY SOUNDER BBU With Tilt Sensor / From: FH514500	-	1	Enquire
15607A	LR020114	TRANSCEIVER - ANTI THEFT	LR020114 TRANSCEIVER - ANTI THEFT Front, With Engine Immobiliser / To: KH999999	-	1	Enquire
15607A	LR115231	TRANSCEIVER - ANTI THEFT	LR115231 TRANSCEIVER - ANTI THEFT Front, With Engine Immobiliser / From: LH000001 / To: LH999999	-	1	Enquire
15607A	LR147023	TRANSCEIVER - ANTI THEFT	LR147023 TRANSCEIVER - ANTI THEFT Front, With Engine Immobiliser / From: MH000001	-	1	Enquire
15607B	LR086328	TRANSCEIVER - ANTI THEFT	LR086328 TRANSCEIVER - ANTI THEFT Vehicle Access-Leisure Activity Key / Rear / From: LH000001 / To: LH500000	-	1	Enquire
15607B	LR148094	TRANSCEIVER - ANTI THEFT	LR148094 TRANSCEIVER - ANTI THEFT Vehicle Access-Leisure Activity Key / Rear / From: LH500001 / To: LH999999	-	1	Enquire
