Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR122999 NUT - HEX. $2.92 To Order
Photo Part No Description Price (each) Stock
FYP500550 SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
LR137256 LINK $401.42 To Order
LR128453 LINK $401.42 To Order
LR143876 LINK $195.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR137258 CABLE - UNDERBODY $216.09 To Order
Photo Part No Description Price (each) Stock
LR115611 CABLE - UNDERBODY $167.43 To Order
Photo Part No Description Price (each) Stock
LR121088 BRACKET - WIRING $48.21 To Order
LR121088 BRACKET - WIRING $48.21 To Order
View All

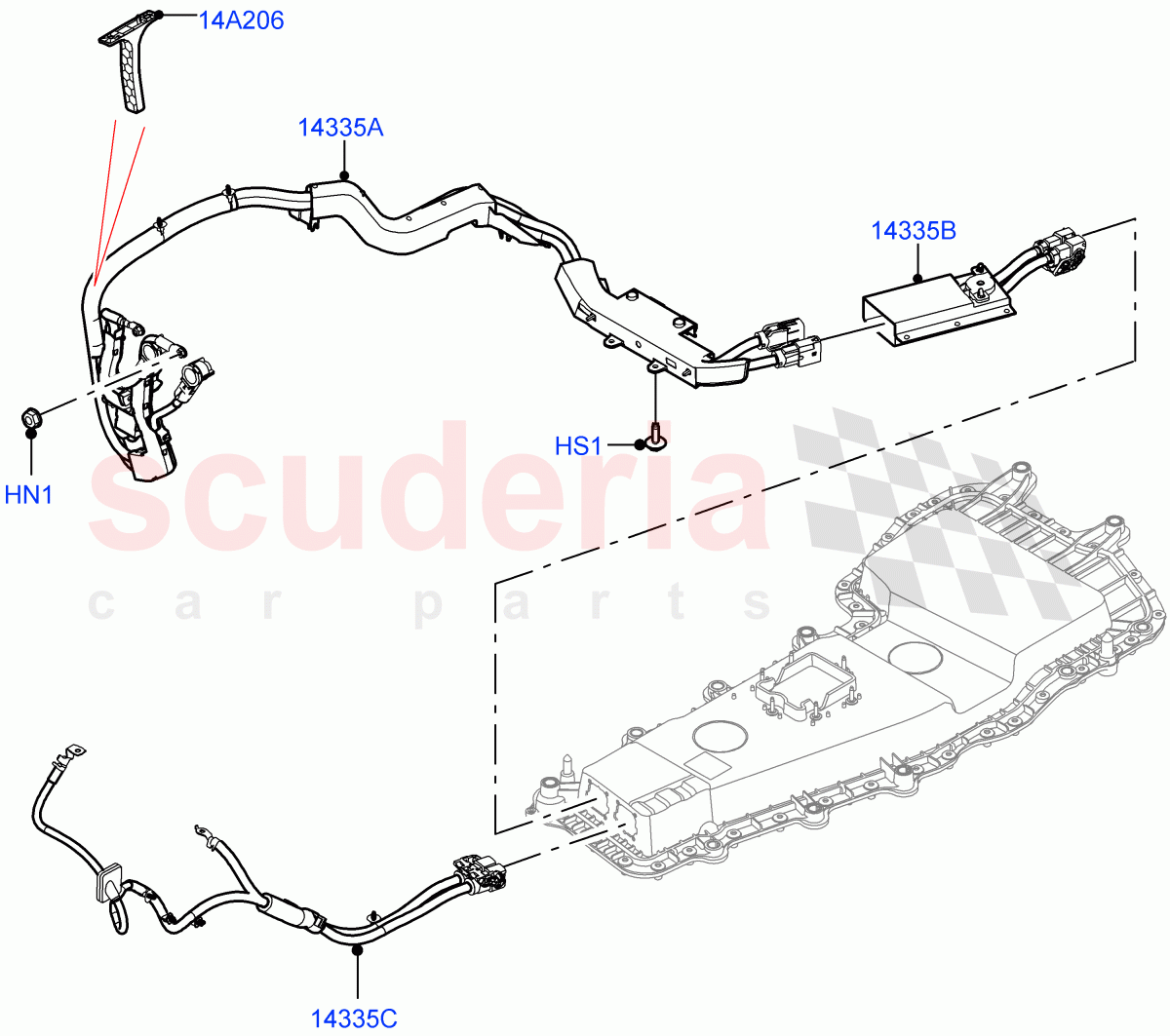

Hybrid Electrical Modules (MHEV Charging Cables and Fixings) (Electric Engine Battery-MHEV) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR122999
NUT - HEX.
Inline to Generator, M8 / From: LH000001 		$2.92 2
HS1 FYP500550
SCREW
Hexagonal Head, M6 X 20MM / From: LH000001 		$1.00 4
14A206 LR121088
BRACKET - WIRING
From: LH000001 / To: LH999999 		$48.21 1
14A206 LR121088
BRACKET - WIRING
2.0L AJ20P4 Petrol Mid PTA / From: MH000001 		$48.21 1
14335A LR137256
LINK
2.0L AJ20P4 Petrol Mid PTA / Inline to Generator / From: LH000001 / To: LH999999 		$401.42 1
14335A LR128453
LINK
1.5L AJ20P3 Petrol High / From: LH000001 		$401.42 1
14335A LR143876
LINK
2.0L AJ21D4 Diesel Mid / From: MH000001 		$195.32 1
14335A LR143877
LINK
2.0L AJ20P4 Petrol E100 PTA / From: MH000001 		$195.32 1
14335B LR137258
CABLE - UNDERBODY
Inline to MHEV Battery BOX / From: LH000001 		$216.09 1
14335C LR115611
CABLE - UNDERBODY
MHEV Battery Box To Battery / From: LH000001 		$167.43 1
