Name: Front Suspension Struts And Springs (Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 5.0 (1 reviews)

Front Suspension Struts And Springs (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Front Suspension Struts And Springs (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008026	BOLT	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000055	NUT - HEX.	$2.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060796	SPRING - SUSPENSION - FRONT	$195.97	To Order
	LR096078	SPRING - SUSPENSION - FRONT	$182.33	To Order
	LR096076	SPRING - SUSPENSION - FRONT	$189.70	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR121039	INSULATOR - SHOCK ABSORBER	$54.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR084894	MACPHERSON STRUT	$349.85	To Order
	LR084745	MACPHERSON STRUT	$349.85	To Order
	LR092359	MACPHERSON STRUT	$349.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024477	MOUNTING - SHOCK ABSORBER	$77.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009664	PAD - SUSPENSION SPRING	$5.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR028618	PAD - ANTI-SQUEAK	$11.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR045249	BOOT - SHOCK ABSORBER	$36.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001144	BUMPER - SHOCK ABSORBER	$27.92	To Order

View All

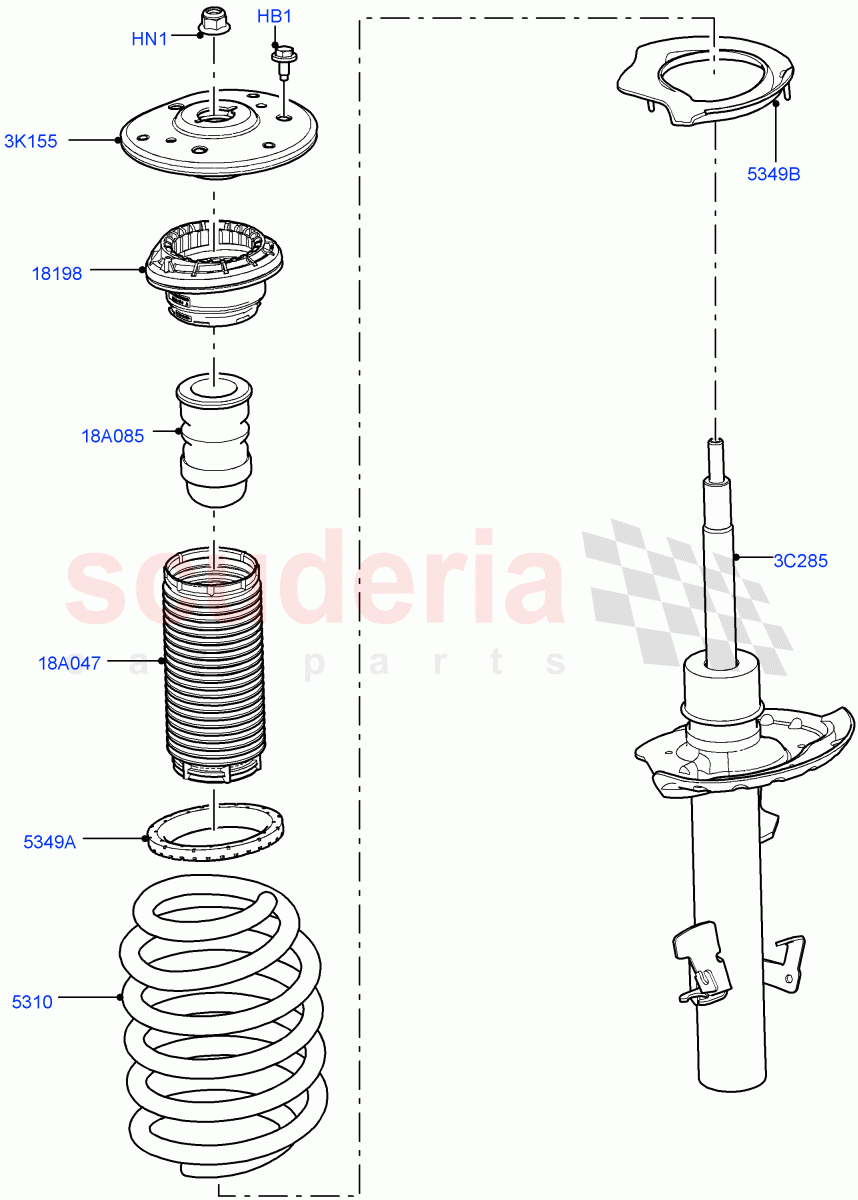

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR008026	BOLT IN STOCK	LR008026 BOLT Bolt And Washer, M8 X 17MM / From: GT000001 IN STOCK	$1.12	6
HN1	LR000055	NUT - HEX.	LR000055 NUT - HEX. M12 x 1.25MM / From: GT000001	$2.57	2
3C285	LR084894	MACPHERSON STRUT	LR084894 MACPHERSON STRUT RH / From: GT000001 / To: JT203211	$349.85	1
3C285	LR084745	MACPHERSON STRUT	LR084745 MACPHERSON STRUT LH / From: GT000001	$349.85	1
3C285	LR092359	MACPHERSON STRUT	LR092359 MACPHERSON STRUT AMS Conversion, Less Adaptive Damping / RH, Less Magnetic Damping System / From: JT203212	$349.85	1
3K155	LR024477	MOUNTING - SHOCK ABSORBER	LR024477 MOUNTING - SHOCK ABSORBER From: GT000001	$77.50	2
18A047	LR045249	BOOT - SHOCK ABSORBER	LR045249 BOOT - SHOCK ABSORBER From: GT000001	$36.02	2
18A085	LR001144	BUMPER - SHOCK ABSORBER	LR001144 BUMPER - SHOCK ABSORBER From: GT000001	$27.92	2
5310	LR060796	SPRING - SUSPENSION - FRONT	LR060796 SPRING - SUSPENSION - FRONT Front Spring Load Class-A / Purple/Orange/Yellow / From: GT000001 / To: HT999999	$195.97	2
5310	LR096078	SPRING - SUSPENSION - FRONT	LR096078 SPRING - SUSPENSION - FRONT Front Spring Load Class-B / Purple/Purple/Yellow / From: GT000001 / To: HT999999	$182.33	2
5310	LR096076	SPRING - SUSPENSION - FRONT	LR096076 SPRING - SUSPENSION - FRONT Front Spring Load Class-C / Orange/Red/Yellow / From: GT000001 / To: HT999999	$189.70	2
5310	LR096079	SPRING - SUSPENSION - FRONT IN STOCK	LR096079 SPRING - SUSPENSION - FRONT Front Spring Load Class-D / Orange / Yellow / From: GT000001 / To: HT999999 IN STOCK	$189.70	2
5310	LR060800	SPRING - SUSPENSION - FRONT	LR060800 SPRING - SUSPENSION - FRONT Front Spring Load Class-E / Orange/Blue/Yellow / From: GT000001 / To: HT999999	$195.97	2
5310	LR060801	SPRING - SUSPENSION - FRONT	LR060801 SPRING - SUSPENSION - FRONT Front Spring Load Class-F / Orange/Green/Yellow / From: GT000001 / To: HT999999	$195.97	2
5310	LR060802	SPRING - SUSPENSION - FRONT	LR060802 SPRING - SUSPENSION - FRONT Front Spring Load Class-G / Orange/White/Yellow / From: GT000001 / To: HT999999	$195.97	2
5310	LR060803	SPRING - SUSPENSION - FRONT	LR060803 SPRING - SUSPENSION - FRONT Front Spring Load Class-H / Orange/Purple/Yellow / From: GT000001 / To: HT999999	$186.54	2
5310	LR106282	SPRING - SUSPENSION - FRONT	LR106282 SPRING - SUSPENSION - FRONT Front Spring Load Class-A / Orange / Orange / Yellow / From: JT000001	$189.70	2
5310	LR096078	SPRING - SUSPENSION - FRONT	LR096078 SPRING - SUSPENSION - FRONT Front Spring Load Class-B / Grey / Green / Yellow / From: JT000001	$182.33	2
5310	LR096076	SPRING - SUSPENSION - FRONT	LR096076 SPRING - SUSPENSION - FRONT Front Spring Load Class-C / Grey / White / Yellow / From: JT000001	$189.70	2
5310	LR096079	SPRING - SUSPENSION - FRONT IN STOCK	LR096079 SPRING - SUSPENSION - FRONT Front Spring Load Class-D / Grey / Pink / Yellow / From: JT000001 IN STOCK	$189.70	2
5310	LR106283	SPRING - SUSPENSION - FRONT	LR106283 SPRING - SUSPENSION - FRONT Front Spring Load Class-E / Grey / Red / Yellow / From: JT000001	$189.70	2
5310	LR106284	SPRING - SUSPENSION - FRONT	LR106284 SPRING - SUSPENSION - FRONT Front Spring Load Class-F / Grey / Yellow / Yellow / From: JT000001	$189.70	2
5310	LR096077	SPRING - SUSPENSION - FRONT IN STOCK	LR096077 SPRING - SUSPENSION - FRONT Front Spring Load Class-G / Grey / Brown / Yellow / From: JT000001 IN STOCK	$189.70	2
5310	LR106285	SPRING - SUSPENSION - FRONT	LR106285 SPRING - SUSPENSION - FRONT Front Spring Load Class-H / Grey / Blue / Yellow / From: JT000001	$189.70	2
5310	LR092333	SPRING - SUSPENSION - FRONT	LR092333 SPRING - SUSPENSION - FRONT Front Spring Load Class-I / Pink / From: JT000001	$148.37	2
5310	LR094378	SPRING - SUSPENSION - FRONT	LR094378 SPRING - SUSPENSION - FRONT Front Spring Load Class-J / From: JT000001	$189.70	2
5349A	LR009664	PAD - SUSPENSION SPRING IN STOCK	LR009664 PAD - SUSPENSION SPRING Upper / From: GT000001 IN STOCK	$5.59	2
5349B	LR028618	PAD - ANTI-SQUEAK IN STOCK	LR028618 PAD - ANTI-SQUEAK Lower / From: GT000001 IN STOCK	$11.90	2
18198	LR121039	INSULATOR - SHOCK ABSORBER IN STOCK	LR121039 INSULATOR - SHOCK ABSORBER From: GT000001 IN STOCK	$54.43	2
