Rear Axle (Internal Components) (Itatiaia (Brazil), Dynamic Driveline) ((V) Fromjt000001)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Rear Axle (Internal Components) (Itatiaia (Brazil), Dynamic Driveline) ((V) FROMJT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003777 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR051077 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR051418 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR051417 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR051416 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR023697 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR001949 WASHER - DRAIN PLUG Enquire To Order
Photo Part No Description Price (each) Stock
LR051410 SEAL - DRIVING PINION OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR051414 FLANGE - DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR058370 GASKET - ACTUATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR079295 MOTOR - PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR051312 PIPE - CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR051408 PIPE - CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR003144 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR051413 CONTROL UNIT - AXLE Enquire To Order
Photo Part No Description Price (each) Stock
LR051409 BRACKET - DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR101205 DIFFERENTIAL - REAR Enquire To Order
Photo Part No Description Price (each) Stock
LR094159 HEAT SHIELD - DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR051411 WIRE - DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR061630 CONTROL UNIT - HYDRAULIC Enquire To Order
Photo Part No Description Price (each) Stock
LR076677 PLUG - FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR061614 PLUG - DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR088566 PLUG - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR051423 PIPE - HYDRAULIC Enquire To Order
Photo Part No Description Price (each) Stock
LR051453 PIPE - HYDRAULIC Enquire To Order
View All

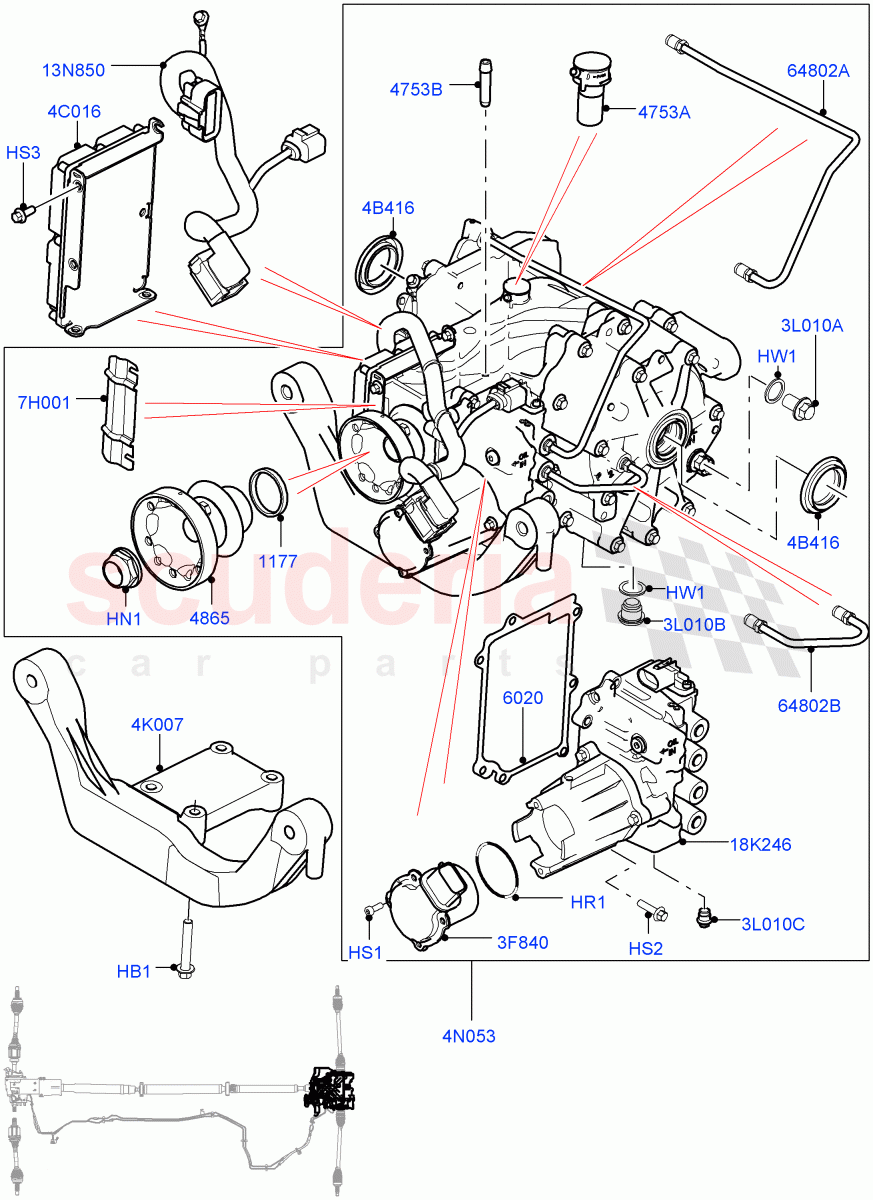

Rear Axle (Internal Components) (Itatiaia (Brazil), Dynamic Driveline) ((V) FROMJT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR003777
BOLT
M8 x 50MM / From: JT000001 		- 4 Enquire
HN1 LR051077
NUT
PTU Flange / From: JT000001 		- 1 Enquire
HR1 LR051418
O-RING
Hydraulic Control Unit, O Ring Gasket / From: JT000001 		- 1 Enquire
HS1 LR051417
SCREW
M5 x 25 / From: JT000001 		- 2 Enquire
HS2 LR051416
SCREW
M6 x 25MM / From: JT000001 		- 10 Enquire
HS3 LR023697
SCREW
M6 X 16MM / From: JT000001 		- 7 Enquire
HW1 LR001949
WASHER - DRAIN PLUG
18 X 24 X 1.5, Sealing Washer / From: JT000001 		- 2 Enquire
3F840 LR079295
MOTOR - PUMP
Electric Oil Pump / From: JT000001 		- 1 Enquire
3L010A LR076677
PLUG - FILLER
Filler Plug / From: JT000001 		- 1 Enquire
3L010B LR061614
PLUG - DRAIN
Drain Plug / From: JT000001 		- 1 Enquire
3L010C LR088566
PLUG - OIL
Hydraulic Control Unit / From: JT000001 		- 1 Enquire
4B416 LR003144
SEAL
Driveshaft / From: JT000001 		- 2 Enquire
4C016 LR051413
CONTROL UNIT - AXLE
Control Module / From: JT000001 		- 1 Enquire
4K007 LR051409
BRACKET - DIFFERENTIAL
Differential Mounting / From: JT000001 		- 1 Enquire
4N053 LR101205
DIFFERENTIAL - REAR
From: JT000001 		- 1 Enquire
7H001 LR094159
HEAT SHIELD - DIFFERENTIAL
From: JT000001 		- 1 Enquire
13N850 LR051411
WIRE - DIFFERENTIAL
Differential / From: JT000001 		- 1 Enquire
18K246 LR061630
CONTROL UNIT - HYDRAULIC
Hydraulic / From: JT000001 		- 1 Enquire
1177 LR051410
SEAL - DRIVING PINION OIL
Propshaft / From: JT000001 		- 1 Enquire
4753A LR051312
PIPE - CONNECTING
Breather Pipe / From: JT000001 		- 1 Enquire
4753B LR051408
PIPE - CONNECTING
Breather / From: JT000001 		- 1 Enquire
4865 LR051414
FLANGE - DIFFERENTIAL
From: JT000001 		- 1 Enquire
6020 LR058370
GASKET - ACTUATOR
Hydraulic Control Unit / From: JT000001 		- 1 Enquire
64802A LR051423
PIPE - HYDRAULIC
Upper / From: JT000001 		- 1 Enquire
64802B LR051453
PIPE - HYDRAULIC
Lower / From: JT000001 		- 1 Enquire
