Name: Exhaust System (Exhaust System Sensors) (2.2L CR DI 16V Diesel, Proconve L6 Emissions, Stage V Plus DPF, EU5 Emission With DPF Type 2)
Rating: 5.0 (1 reviews)

Exhaust System (Exhaust System Sensors) (2.2L CR DI 16V Diesel, Proconve L6 Emissions, Stage V Plus DPF, EU5 Emission With DPF Type 2) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Exhaust System (Exhaust System Sensors) (2.2L CR DI 16V Diesel, Proconve L6 Emissions, Stage V Plus...

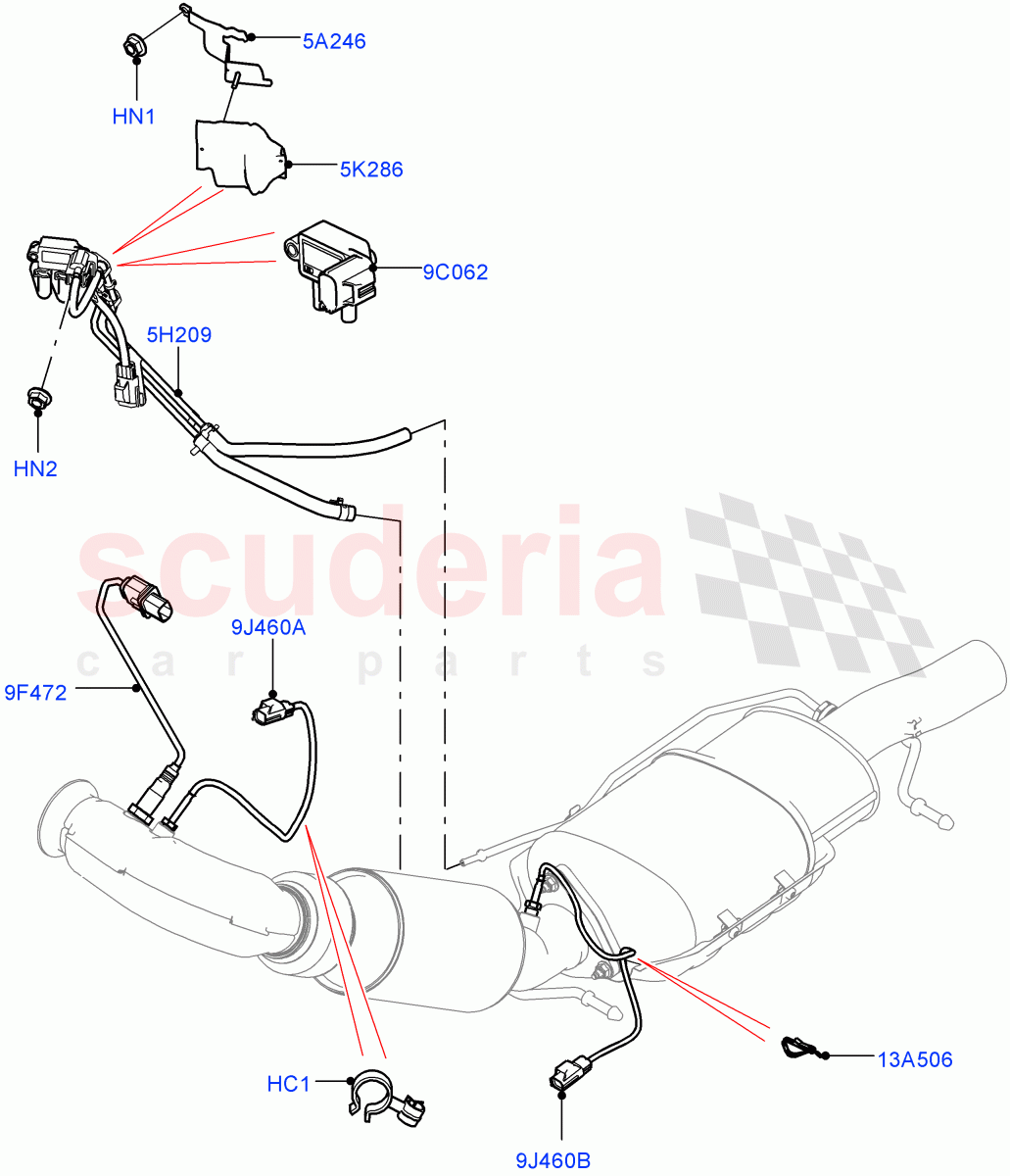

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PYC108170	CLIP	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR067425	BRACKET - SENSOR MOUNTING	$9.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028861	SENSOR - EXHAUST GAS PRESSURE	$256.47	To Order
	LR080117	SENSOR - EXHAUST GAS PRESSURE	$288.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034196	HEAT SHIELD - SENSOR	$30.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133910	SENSOR	$161.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001370	SENSOR - EXHAUST GAS - OXYGEN	$335.39	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015455	SENSOR - EXHAUST GAS - TEMPERATURE	$160.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005499	SENSOR - EXHAUST GAS - TEMPERATURE	$152.14	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	PYC108170	CLIP	PYC108170 CLIP Double, Oxygen Sensor	$1.24	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	1
HN2	FN105042	NUT - HEX. - FLANGED IN STOCK	FN105042 NUT - HEX. - FLANGED M5 IN STOCK	$0.50	1
5A246	LR067425	BRACKET - SENSOR MOUNTING	LR067425 BRACKET - SENSOR MOUNTING For Sensor	$9.75	1
5H209	LR028861	SENSOR - EXHAUST GAS PRESSURE	LR028861 SENSOR - EXHAUST GAS PRESSURE To: FH999999	$256.47	1
5H209	LR080117	SENSOR - EXHAUST GAS PRESSURE	LR080117 SENSOR - EXHAUST GAS PRESSURE From: GH000001	$288.61	1
5K286	LR034196	HEAT SHIELD - SENSOR	LR034196 HEAT SHIELD - SENSOR	$30.21	1
9C062	LR133910	SENSOR	LR133910 SENSOR	$161.34	1
9F472	LR001370	SENSOR - EXHAUST GAS - OXYGEN	LR001370 SENSOR - EXHAUST GAS - OXYGEN	$335.39	1
9J460A	LR015455	SENSOR - EXHAUST GAS - TEMPERATURE	LR015455 SENSOR - EXHAUST GAS - TEMPERATURE	$160.46	1
9J460B	LR005499	SENSOR - EXHAUST GAS - TEMPERATURE	LR005499 SENSOR - EXHAUST GAS - TEMPERATURE 330MM	$152.14	1
13A506	YQR000050	CLIP - WIRING IN STOCK	YQR000050 CLIP - WIRING IN STOCK	$0.76	1
