Exhaust System (Front Section) (2.2L Cr Di 16V Diesel, Eu5 Emission With Dpf Type 2, With 5 Seat...

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Exhaust System (Front Section) (2.2L CR DI 16V Diesel, EU5 Emission With DPF Type 2, With 5 Seat...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
LR000593 INSULATOR - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR001115 CLAMP - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR000954 GASKET - EXHAUST PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR025109 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
WCM500120 GASKET - EXHAUST PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR067416 PIPE - EXHAUST Enquire To Order
LR067414 PIPE - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR068415 FILTER - DIESEL PARTICLE Enquire To Order
Photo Part No Description Price (each) Stock
LR024227 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
LR077874 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
View All

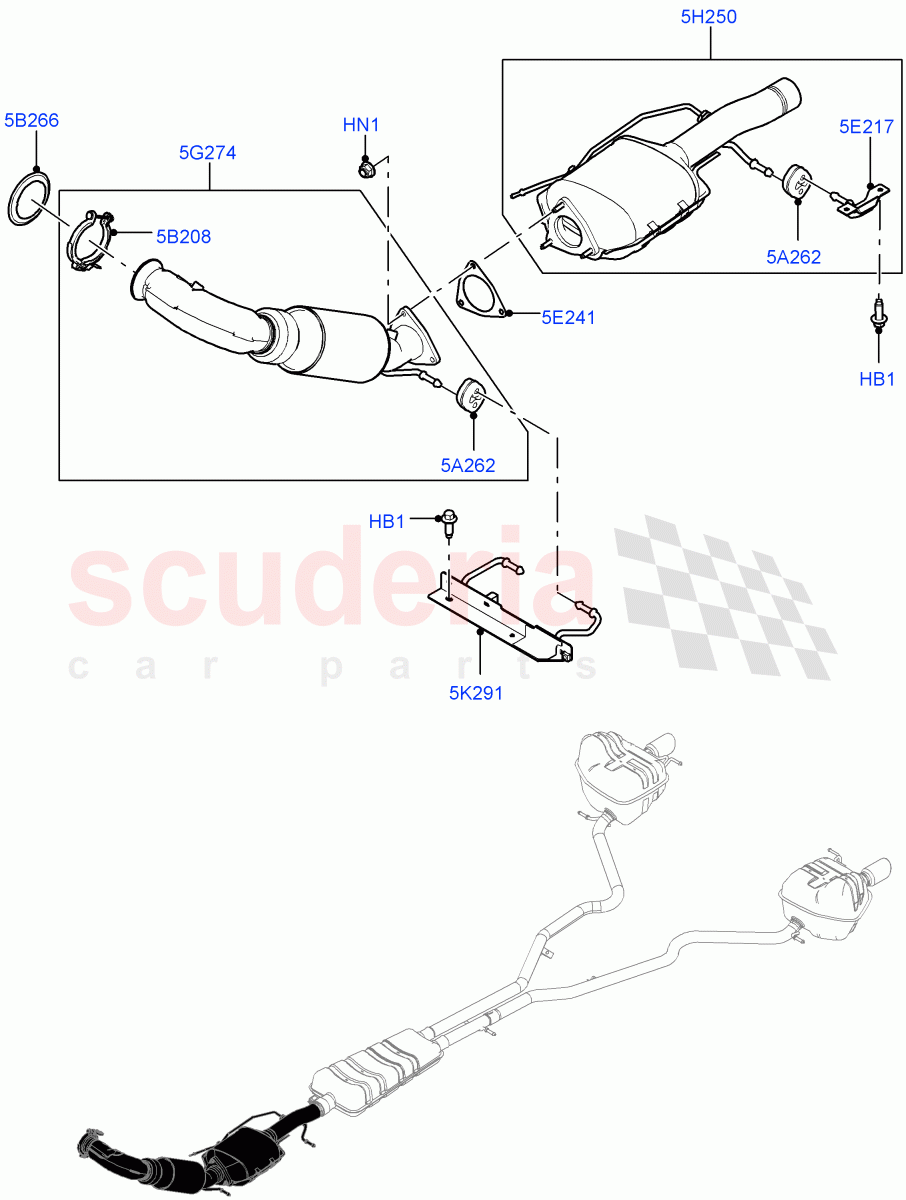

Exhaust System (Front Section) (2.2L CR DI 16V Diesel, EU5 Emission With DPF Type 2, With 5 Seat Configuration, Stage V Plus DPF, Proconve L6 Emissions) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500440
BOLT
Hexagonal Head, M8 X 20MM 		- 2 Enquire
HN1 FX108046
NUT - LOCKING
M8 		- 2 Enquire
5A262 LR000593
INSULATOR - RUBBER 		- 3 Enquire
5B208 LR001115
CLAMP - EXHAUST 		- 1 Enquire
5B266 LR000954
GASKET - EXHAUST PIPE
Front 		- 1 Enquire
5E217 LR025109
BRACKET - EXHAUST PIPE MOUNTING
Front 		- 1 Enquire
5E241 WCM500120
GASKET - EXHAUST PIPE
Catalyst Assy, Rear 		- 1 Enquire
5G274 LR067416
PIPE - EXHAUST
6 Speed Manual Trans-JLR M66 2WD 		- 1 Enquire
5G274 LR067414
PIPE - EXHAUST
6 Speed Manual Trans M66 - AWD 		- 1 Enquire
5H250 LR068415
FILTER - DIESEL PARTICLE
With 5 Seat Configuration 		- 1 Enquire
5K291 LR024227
BRACKET - EXHAUST PIPE MOUNTING
Double, Front / To: GH593043 		- 1 Enquire
5K291 LR077874
BRACKET - EXHAUST PIPE MOUNTING
Double, Front / From: GH593044 		- 1 Enquire
