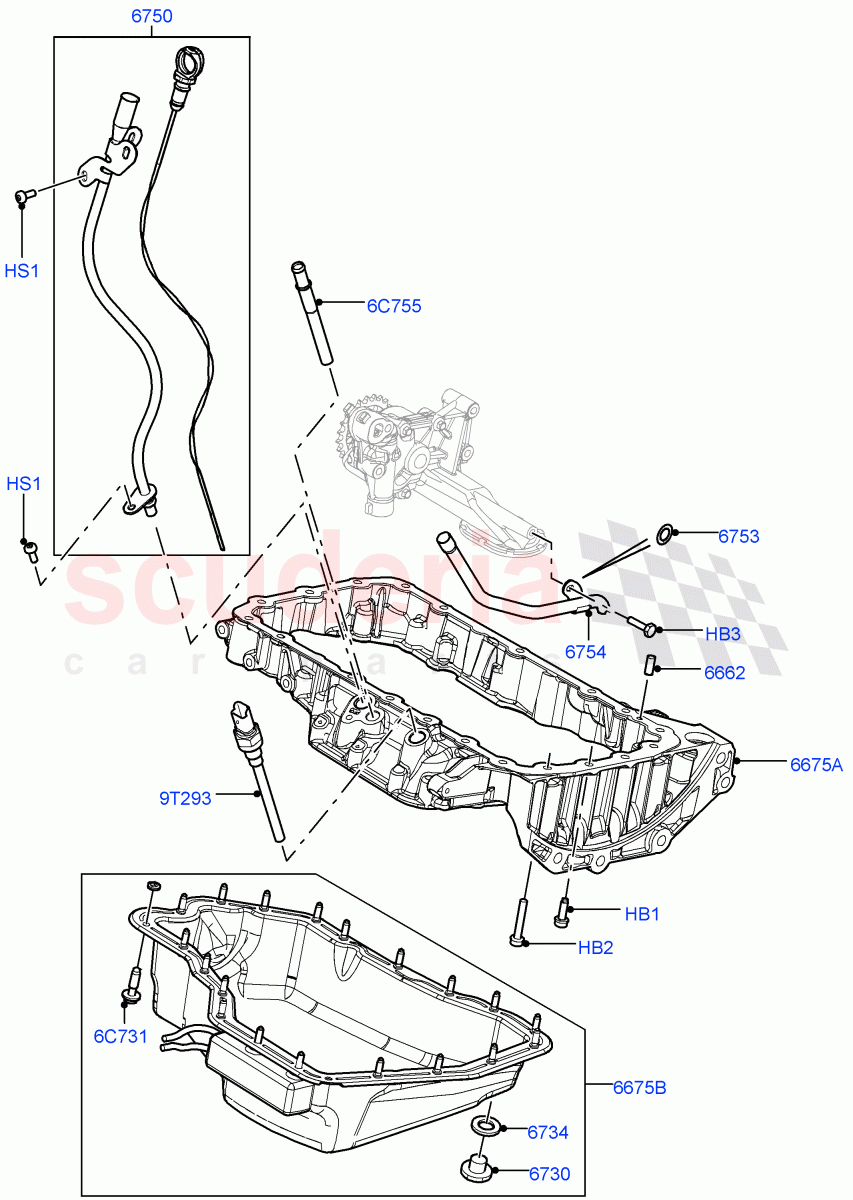

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002832	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019604	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002849	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500950	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000672	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006295	GASKET - DRAIN PLUG - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049657	INDICATOR - OIL LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023045	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001250	TUBE - OIL LEVEL INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022280	PAN - ENGINE OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009410	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006520	TUBE - OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001368	SENSOR - ENGINE TEMPERATURE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR002832	BOLT	LR002832 BOLT M7 X 21MM	-	16	Enquire
HB2	LR019604	BOLT	LR019604 BOLT M7 X 40MM	-	4	Enquire
HB3	LR002849	BOLT - HEX.HEAD	LR002849 BOLT - HEX.HEAD M6 x 12MM	-	1	Enquire
HS1	RYP500950	SCREW	RYP500950 SCREW M6 X 16MM, Torx	-	2	Enquire
6C731	LR009410	SCREW	LR009410 SCREW	-	21	Enquire
6C755	LR006520	TUBE - OIL COOLER	LR006520 TUBE - OIL COOLER	-	1	Enquire
9T293	LR001368	SENSOR - ENGINE TEMPERATURE	LR001368 SENSOR - ENGINE TEMPERATURE	-	1	Enquire
6662	LR000672	STUD	LR000672 STUD 4 X 15MM	-	1	Enquire
6675A	LR022280	PAN - ENGINE OIL	LR022280 PAN - ENGINE OIL Upper	-	1	Enquire
6675B	LR022278	PAN - ENGINE OIL	LR022278 PAN - ENGINE OIL Lower / To: GH584022	-	1	Enquire
6675B	LR115654	PAN - ENGINE OIL	LR115654 PAN - ENGINE OIL Lower / From: GH584023	-	1	Enquire
6730	LR004304	PLUG - OIL DRAIN	LR004304 PLUG - OIL DRAIN Head Size: 21mm, M10 X 1.25	-	1	Enquire
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN Head Size: 13mm, Includes Seal, M14 X 1.5	-	1	Enquire
6734	LR006295	GASKET - DRAIN PLUG - OIL	LR006295 GASKET - DRAIN PLUG - OIL Sealing Washer	-	1	Enquire
6750	LR049657	INDICATOR - OIL LEVEL	LR049657 INDICATOR - OIL LEVEL	-	1	Enquire
6753	LR023045	RING - SEALING	LR023045 RING - SEALING Sealing Ring	-	1	Enquire
6754	LR001250	TUBE - OIL LEVEL INDICATOR	LR001250 TUBE - OIL LEVEL INDICATOR	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Oil Pan/Oil Level Indicator (2.2L Cr Di 16V Diesel, 2.2L Dohc Efi Tc Dw12)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]
