Find Your Part

View All

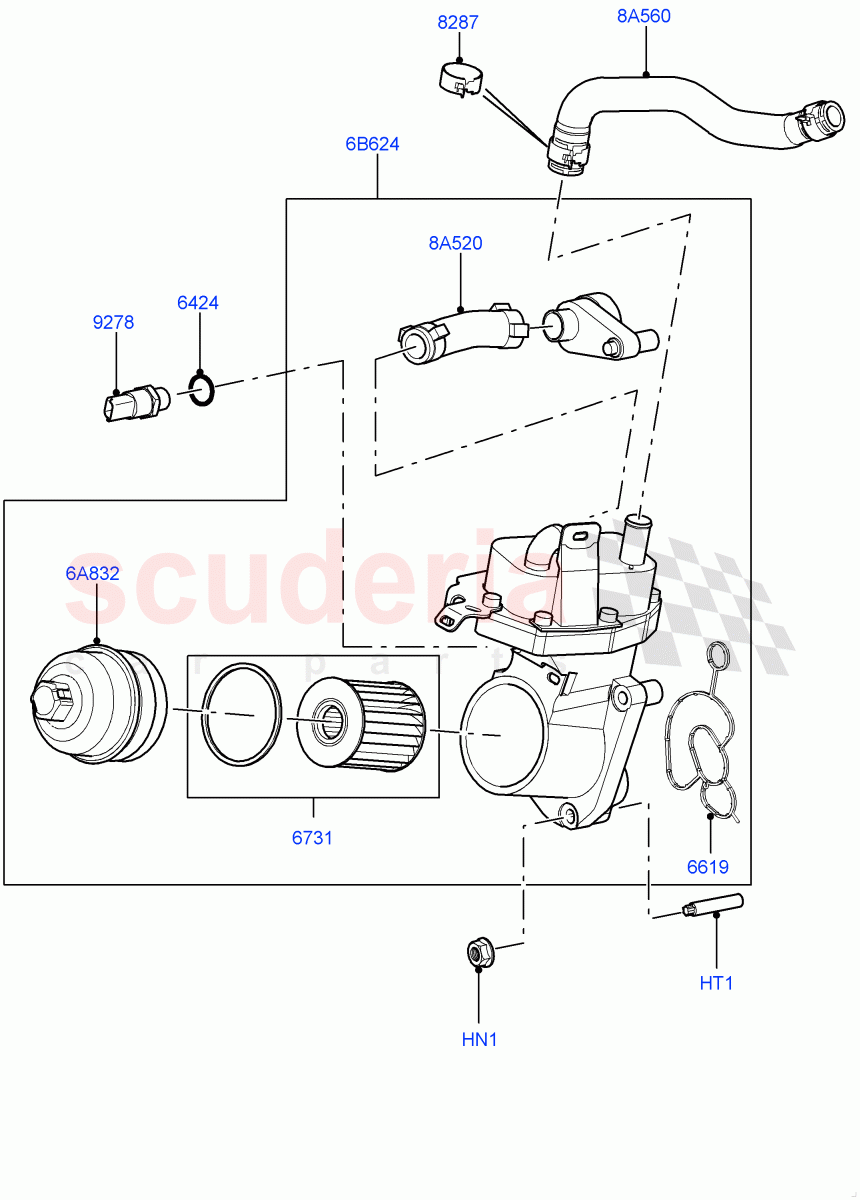

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN108042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009408	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000680	SEAL - PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001262	GASKET - OIL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001247	FILTER - OIL - ELEMENT AND SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002840	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005365	SWITCH - OIL PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006205	COVER - OIL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006653	OIL FILTER AND COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021623	TUBE - WATER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006660	CONNECTOR - OIL COOLER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	FN108042	NUT	FN108042 NUT M8	-	4	Enquire
HT1	LR009408	STUD	LR009408 STUD M8 x 31MM	-	4	Enquire
6A832	LR006205	COVER - OIL FILTER	LR006205 COVER - OIL FILTER	-	1	Enquire
6B624	LR006653	OIL FILTER AND COOLER	LR006653 OIL FILTER AND COOLER	-	1	Enquire
8A520	LR021623	TUBE - WATER INLET	LR021623 TUBE - WATER INLET	-	1	Enquire
8A560	LR006660	CONNECTOR - OIL COOLER	LR006660 CONNECTOR - OIL COOLER Engine, Oil Cooler, Return	-	1	Enquire
6424	LR000680	SEAL - PLUG	LR000680 SEAL - PLUG Sealing Washer	-	1	Enquire
6619	LR001262	GASKET - OIL FILTER	LR001262 GASKET - OIL FILTER	-	1	Enquire
6731	LR001247	FILTER - OIL - ELEMENT AND SEAL	LR001247 FILTER - OIL - ELEMENT AND SEAL Element And Seal	-	1	Enquire
8287	LR002840	CLAMP - HOSE	LR002840 CLAMP - HOSE	-	1	Enquire
9278	LR005365	SWITCH - OIL PRESSURE	LR005365 SWITCH - OIL PRESSURE	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Oil Cooler And Filter (2.2L Cr Di 16V Diesel, 2.2L Dohc Efi Tc Dw12)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]
