Exhaust Gas Recirculation (2.2L CR DI 16V Diesel) ((V) FROMBH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Exhaust Gas Recirculation (2.2L CR DI 16V Diesel) ((V) FROMBH000001)

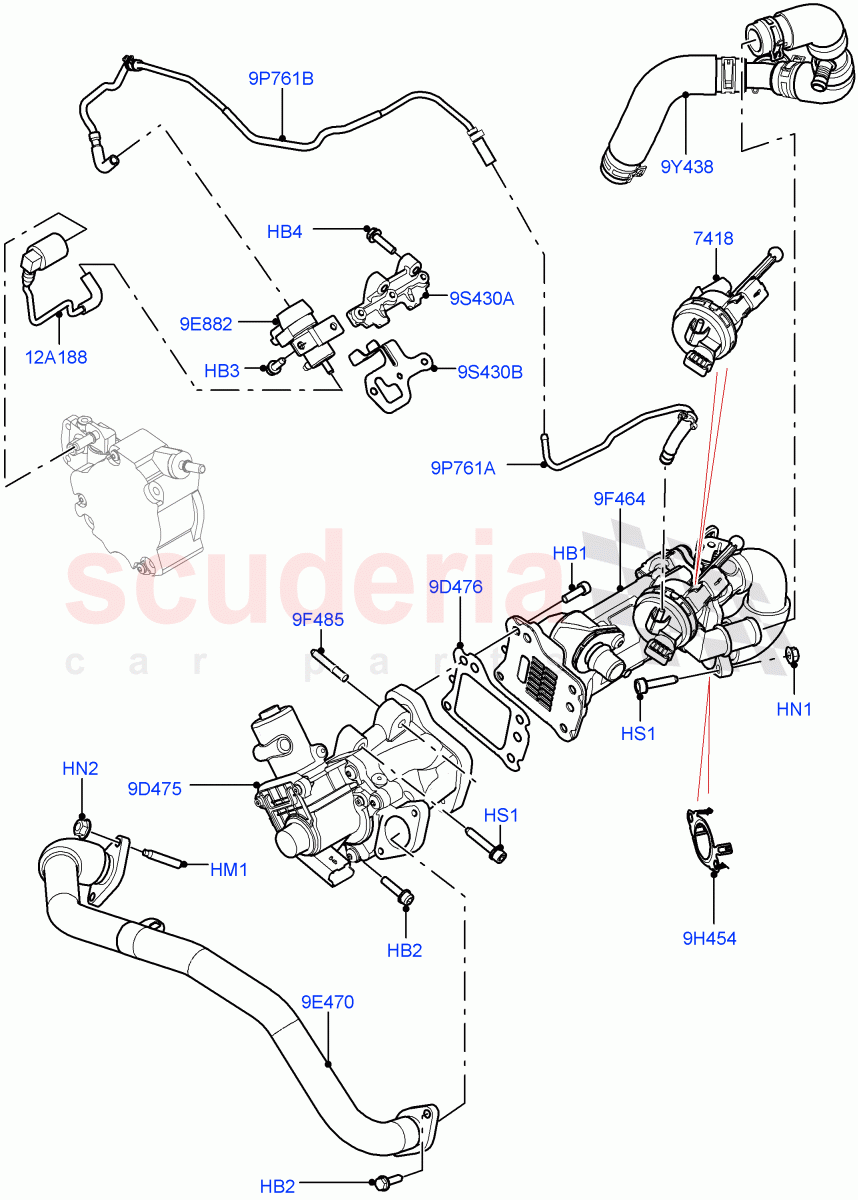

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR003430	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003429	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003426	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013333	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023279	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106047L	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022852	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082289	KIT - EGR COOLER REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000997	VALVE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000998	GASKET - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004245	TUBE - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017782	VALVE - EGR VACUUM CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057662	COOLER - EGR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003652	CONNECTOR - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022515	GASKET - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078480	HOSE - EGR COOLER	Enquire	To Order
	LR078480	HOSE - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009785	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054615	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022516	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006656	BRACKET - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022654	BRACKET - VALVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR003430	SCREW	LR003430 SCREW EGR Cooler To EGR Valve, M6 X 20MM	-	4	Enquire
HB2	LR003429	SCREW	LR003429 SCREW EGR Valve, M6 X 25MM	-	4	Enquire
HB3	LR003426	BOLT	LR003426 BOLT M6 X 20MM	-	2	Enquire
HB4	LR013333	SCREW	LR013333 SCREW M6 x 25MM	-	2	Enquire
HM1	LR023279	STUD	LR023279 STUD M6 X 22.5, Stud	-	2	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	3	Enquire
HN2	FN106047L	NUT - FLANGED	FN106047L NUT - FLANGED M6	-	2	Enquire
HS1	LR022852	SCREW	LR022852 SCREW M6 x 22MM	-	3	Enquire
9D475	LR000997	VALVE - EXHAUST GAS RECIRCULATION	LR000997 VALVE - EXHAUST GAS RECIRCULATION	-	1	Enquire
9D476	LR000998	GASKET - EGR COOLER	LR000998 GASKET - EGR COOLER EGR Cooler To EGR Valve	-	1	Enquire
9E470	LR004245	TUBE - CONNECTING	LR004245 TUBE - CONNECTING EGR Valve To Inlet Manifold	-	1	Enquire
9E882	LR017782	VALVE - EGR VACUUM CONTROL	LR017782 VALVE - EGR VACUUM CONTROL	-	1	Enquire
9F464	LR057662	COOLER - EGR	LR057662 COOLER - EGR	-	1	Enquire
9F485	LR003652	CONNECTOR - EXHAUST	LR003652 CONNECTOR - EXHAUST M6 X 40MM, Stud	-	1	Enquire
9H454	LR022515	GASKET - EGR COOLER	LR022515 GASKET - EGR COOLER Exhaust Manifold To EGR Cooler	-	1	Enquire
9P761A	LR054615	HOSE - VACUUM	LR054615 HOSE - VACUUM Control Valve To EGR Cooler - Shorter	-	1	Enquire
9P761B	LR022516	HOSE - VACUUM	LR022516 HOSE - VACUUM Control Valve To EGR Cooler - Longer	-	1	Enquire
9S430A	LR006656	BRACKET - VALVE	LR006656 BRACKET - VALVE Valve Assembly	-	1	Enquire
9S430B	LR022654	BRACKET - VALVE	LR022654 BRACKET - VALVE Clip, To Vacuum	-	1	Enquire
9Y438	LR078480	HOSE - EGR COOLER	LR078480 HOSE - EGR COOLER Cooled EGR, Inlet / To: FH351657	-	1	Enquire
9Y438	LR078480	HOSE - EGR COOLER	LR078480 HOSE - EGR COOLER Cooled EGR, Inlet / From: FH351658	-	1	Enquire
12A188	LR009785	HOSE - VACUUM	LR009785 HOSE - VACUUM Vacuum Pump To Control Valve	-	1	Enquire
7418	LR082289	KIT - EGR COOLER REPAIR	LR082289 KIT - EGR COOLER REPAIR	-	1	Enquire
