Emission Control - Crankcase (2.2L Cr Di 16V Diesel) ((V) Frombh000001)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Emission Control - Crankcase (2.2L CR DI 16V Diesel) ((V) FROMBH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000640 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
LR003189 BOLT - OIL SEPARATOR $11.74 To Order
Photo Part No Description Price (each) Stock
LR025914 SEPARATOR - OIL $159.89 To Order
Photo Part No Description Price (each) Stock
LR000994 TUBE - OIL COOLER $18.44 To Order
Photo Part No Description Price (each) Stock
LR084364 KIT - CRANKCASE VENTILATION VALVE $288.79 To Order
Photo Part No Description Price (each) Stock
LR022512 BRACKET - ENGINE WIRING $258.21 To Order
Photo Part No Description Price (each) Stock
LR001263 HOSE - CRANKCASE VENTILATION $72.67 To Order
Photo Part No Description Price (each) Stock
LR001264 HOSE - CRANKCASE VENTILATION $29.27 To Order
Photo Part No Description Price (each) Stock
LR065344 TUBE - BREATHER $171.16 To Order
LR065345 HOSE - CRANKCASE VENTILATION $69.28 To Order
Photo Part No Description Price (each) Stock
LR002990 CLAMP - WORM DRIVE $7.58 To Order
Photo Part No Description Price (each) Stock
PYC101900 CLAMP - HOSE $3.85 To Order
View All

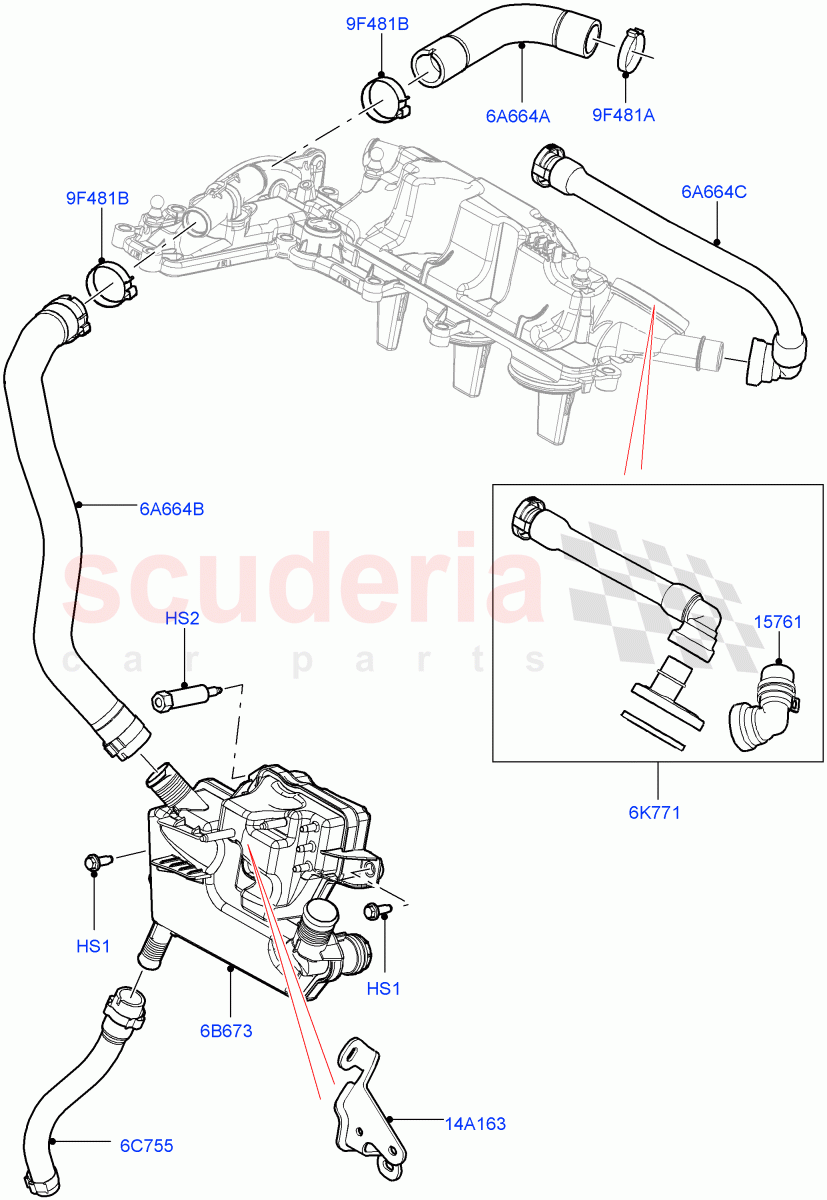

Emission Control - Crankcase (2.2L CR DI 16V Diesel) ((V) FROMBH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR000640
SCREW
M6 x 18MM 		$0.50 3
HS2 LR003189
BOLT - OIL SEPARATOR
M6 		$11.74 1
6A664A LR001263
HOSE - CRANKCASE VENTILATION
Connecting Hose - Cylinder Head Cover 		$72.67 1
6A664B LR001264
HOSE - CRANKCASE VENTILATION
Cylinder Head Cover To Separator 		$29.27 1
6A664C LR065344
TUBE - BREATHER
Engine Vent Hose / Cylinder Head Cover To Air Intake Tube 		$171.16 1
6A664C LR065345
HOSE - CRANKCASE VENTILATION
Engine Vent Hose - Insulated / Cylinder Head Cover To Air Intake Tube 		$69.28 1
6B673 LR025914
SEPARATOR - OIL 		$159.89 1
6C755 LR000994
TUBE - OIL COOLER
Cylinder Block To Separator 		$18.44 1
6K771 LR084364
KIT - CRANKCASE VENTILATION VALVE
From: FH000001 		$288.79 1
9F481A LR002990
CLAMP - WORM DRIVE 		$7.58 1
9F481B PYC101900
CLAMP - HOSE 		$3.85 2
14A163 LR022512
BRACKET - ENGINE WIRING
Separator 		$258.21 1
