Radiator/Coolant Overflow Container (2.2L Cr Di 16V Diesel)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Radiator/Coolant Overflow Container (2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501000 BOLT AND WASHER - HEX.HEAD $1.12 To Order
Photo Part No Description Price (each) Stock
LR041259 CLIP - HOSE $5.63 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $2.97 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.31 IN STOCK
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.32 IN STOCK
Photo Part No Description Price (each) Stock
RYP500770 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR039530 RADIATOR - MAIN $433.47 IN STOCK
LR039623 RADIATOR - MAIN $433.47 To Order
Photo Part No Description Price (each) Stock
LR000243 CAP - RADIATOR $11.17 IN STOCK
Photo Part No Description Price (each) Stock
LR002662 PLUG - RADIATOR DRAIN $5.39 IN STOCK
Photo Part No Description Price (each) Stock
LR000242 INSULATOR - RADIATOR SUPPORT $1.66 IN STOCK
Photo Part No Description Price (each) Stock
LR007399 INSULATOR - RUBBER $1.59 IN STOCK
Photo Part No Description Price (each) Stock
LR060349 TANK - RADIATOR OVERFLOW $117.97 To Order
Photo Part No Description Price (each) Stock
LR044300 BRACKET - RADIATOR UPPER $62.09 IN STOCK
Photo Part No Description Price (each) Stock
LR060346 SUPPORT - RADIATOR $102.45 To Order
Photo Part No Description Price (each) Stock
LR000582 PIN - RADIATOR MOUNTING $52.89 IN STOCK
Photo Part No Description Price (each) Stock
LR000930 SENSOR - COOLANT LEVEL $36.89 IN STOCK
Photo Part No Description Price (each) Stock
LR045248 MOTOR AND FAN - ENGINE COOLING $911.60 To Order
LR094390 MOTOR AND FAN - ENGINE COOLING $911.60 To Order
LR100364 MOTOR AND FAN - ENGINE COOLING $898.14 To Order
Photo Part No Description Price (each) Stock
LR044833 MOTOR FAN ENGINE COOLING $853.61 To Order
Photo Part No Description Price (each) Stock
LR024294 PAD - FOAM $5.70 IN STOCK
View All

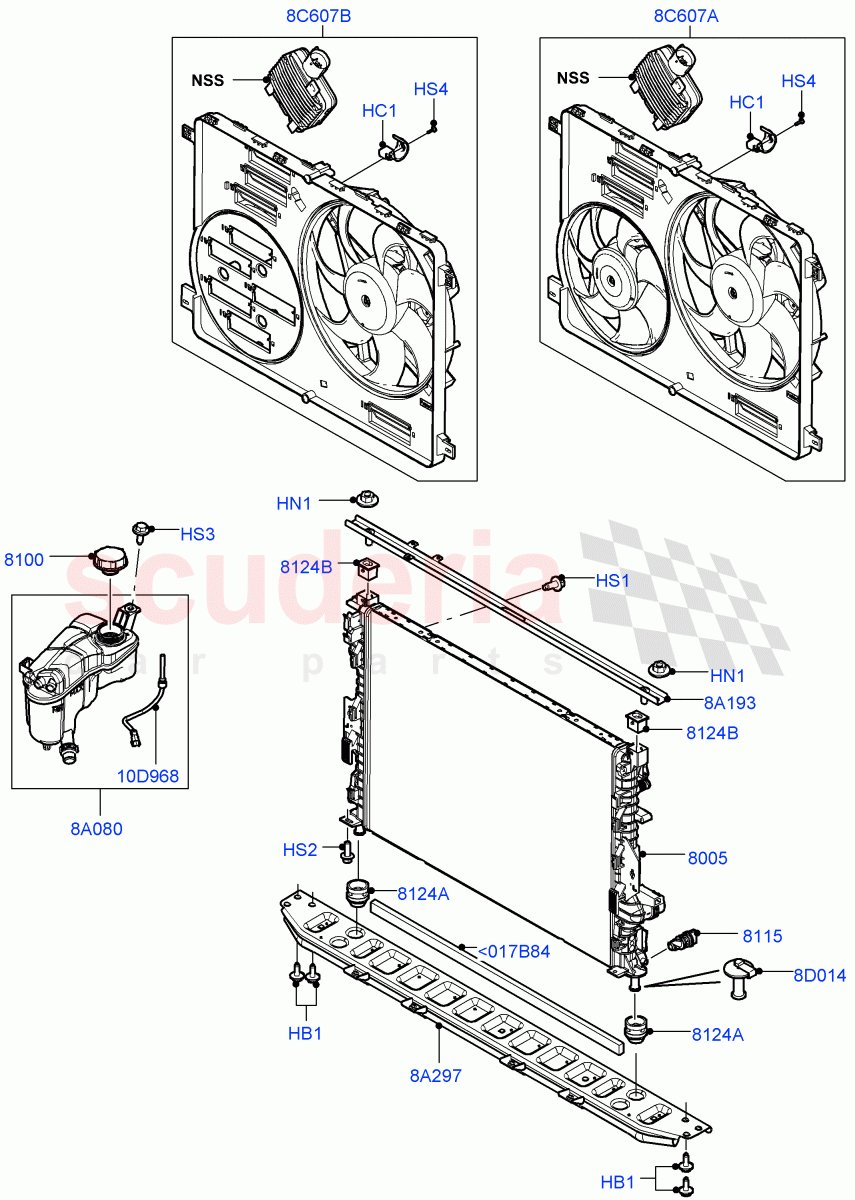

Radiator/Coolant Overflow Container (2.2L CR DI 16V Diesel) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR024294
PAD - FOAM
Self Adhesive
IN STOCK 		$5.70 1
HB1 RYG501000
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 21MM 		$1.12 6
HC1 LR041259
CLIP - HOSE
Single 		$5.63 1
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer
IN STOCK 		$2.97 2
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$3.31 1
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.19 4
HS3 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex
IN STOCK 		$1.32 6
HS4 RYP500770
SCREW
5 X 16MM, Torx 		$0.59 1
8A080 LR060349
TANK - RADIATOR OVERFLOW 		$117.97 1
8A193 LR044300
BRACKET - RADIATOR UPPER
Upper
IN STOCK 		$62.09 1
8A297 LR060346
SUPPORT - RADIATOR
Lower 		$102.45 1
8C607A LR045248
MOTOR AND FAN - ENGINE COOLING
(-)"CHN" / To: HH650559 		$911.60 1
8C607A LR094390
MOTOR AND FAN - ENGINE COOLING
(-)"CHN" / From: HH650560 / To: HH720826 		$911.60 1
8C607A LR100364
MOTOR AND FAN - ENGINE COOLING
(-)"CHN" / From: HH720827 		$898.14 1
8C607B LR044833
MOTOR FAN ENGINE COOLING
(+)"CHN" / To: HH714160 		$853.61 1
8D014 LR000582
PIN - RADIATOR MOUNTING
Repair Kit
IN STOCK 		$52.89 2
10D968 LR000930
SENSOR - COOLANT LEVEL
IN STOCK 		$36.89 1
8005 LR039530
RADIATOR - MAIN
9 Speed Auto AWD
IN STOCK 		$433.47 1
8005 LR039623
RADIATOR - MAIN
6 Speed Manual Trans M66 - AWD 		$433.47 1
8100 LR000243
CAP - RADIATOR
IN STOCK 		$11.17 1
8115 LR002662
PLUG - RADIATOR DRAIN
IN STOCK 		$5.39 1
8124A LR000242
INSULATOR - RADIATOR SUPPORT
Lower
IN STOCK 		$1.66 2
8124B LR007399
INSULATOR - RUBBER
Upper
IN STOCK 		$1.59 2
