Cooling System Pipes And Hoses (2.2L Cr Di 16V Diesel)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Cooling System Pipes And Hoses (2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003010 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR024243 HOSE - COOLING SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR032349 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR000943 HOSE - COOLING SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR000941 HOSE - COOLING SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR049635 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR005300 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR001311 HOSE - WATER BY-PASS Enquire To Order
Photo Part No Description Price (each) Stock
LR060348 HOSE - OVERFLOW CONTAINER Enquire To Order
Photo Part No Description Price (each) Stock
LR060347 HOSE - DEGAS COOLING SYSTEM Enquire To Order
View All

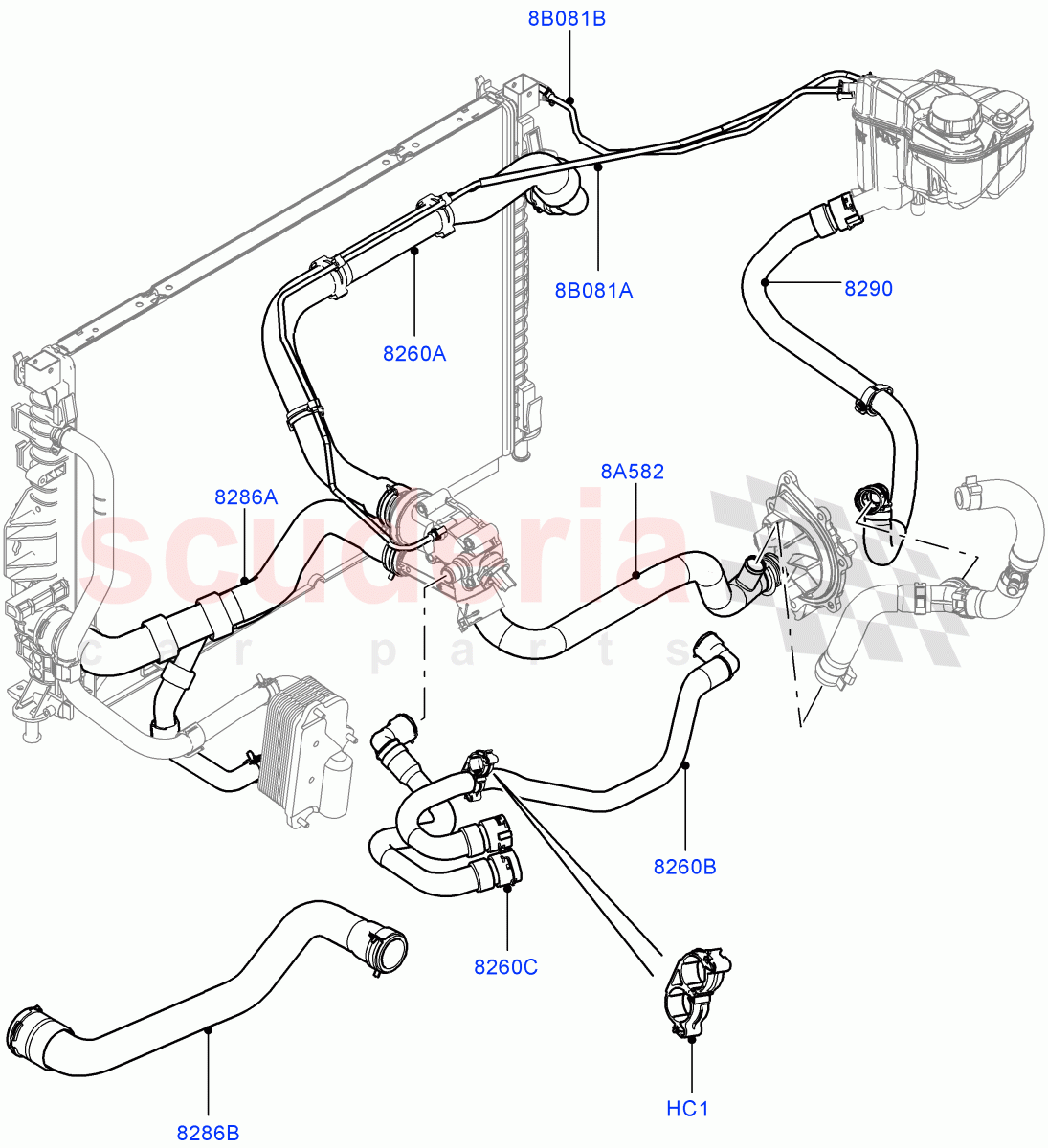

Cooling System Pipes And Hoses (2.2L CR DI 16V Diesel) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR003010
CLIP
19/19MM, Double 		- 1 Enquire
8A582 LR001311
HOSE - WATER BY-PASS
From Water Pump To Thermostat 		- 1 Enquire
8B081A LR060348
HOSE - OVERFLOW CONTAINER
Engine Degas Line 		- 1 Enquire
8B081B LR060347
HOSE - DEGAS COOLING SYSTEM
Radiator Degas Line, Top Of Radiator To Top Of Supply Tank 		- 1 Enquire
8260A LR032349
HOSE - RADIATOR
Radiator Hose, Top 		- 1 Enquire
8260B LR000943
HOSE - COOLING SYSTEM
From EGR Cooler To Heater Inlet 		- 1 Enquire
8260C LR000941
HOSE - COOLING SYSTEM
From Heater Outlet To Thermostat 		- 1 Enquire
8286A LR049635
HOSE - RADIATOR
9 Speed Auto AWD / Bottom, Radiator Hose 		- 1 Enquire
8286B LR005300
HOSE - RADIATOR
6 Speed Manual Trans M66 - AWD / Bottom, Radiator Hose 		- 1 Enquire
8290 LR024243
HOSE - COOLING SYSTEM
Expansion Tank To Pump 		- 1 Enquire
