Rear Seat Base (Halewood (Uk), 60/40 Load Through With Slide) ((V) Fromlh000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Rear Seat Base (Halewood (UK), 60/40 Load Through With Slide) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR059292 BOLT $3.53 To Order
Photo Part No Description Price (each) Stock
LR126482 BOLT $1.70 To Order
Photo Part No Description Price (each) Stock
LR136547 BOLT $2.15 To Order
Photo Part No Description Price (each) Stock
LR007161 CLIP - TRIM $0.93 To Order
Photo Part No Description Price (each) Stock
LR136544 CLIP $1.35 To Order
Photo Part No Description Price (each) Stock
LR114979 CLIP $4.15 To Order
Photo Part No Description Price (each) Stock
LR039505 NUT - FLANGED $18.98 To Order
Photo Part No Description Price (each) Stock
LR136552 SCREW $1.09 To Order
Photo Part No Description Price (each) Stock
LR136550 SCREW $1.94 To Order
Photo Part No Description Price (each) Stock
LR136549 SCREW $1.82 To Order
Photo Part No Description Price (each) Stock
LR085506 WASHER $2.69 To Order
Photo Part No Description Price (each) Stock
LR156813 KIT - CLOCKWORK ASSEMBLY $38.36 To Order
LR156815 KIT - CLOCKWORK ASSEMBLY $41.74 To Order
Photo Part No Description Price (each) Stock
LR159392 KIT - REAR SEAT BACK $488.69 To Order
Photo Part No Description Price (each) Stock
LR079034 COVER - CROSS TUBE ISOFIX $37.39 To Order
Photo Part No Description Price (each) Stock
LR073387 MOTOR - SEAT BACK RECLINING $287.91 To Order
Photo Part No Description Price (each) Stock
LR073389 MOTOR - SEAT BACK RECLINING $282.34 To Order
Photo Part No Description Price (each) Stock
LR117113 COVER - HINGE $14.95 To Order
LR127933 COVER - HINGE $14.95 To Order
LR127934 COVER - HINGE $13.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR127889 COVER - SEAT TRACK $29.69 To Order
LR139480 COVER - SEAT TRACK $29.69 To Order
Photo Part No Description Price (each) Stock
LR127892 COVER - SEAT TRACK $29.69 To Order
LR139483 COVER - SEAT TRACK $29.69 To Order
Photo Part No Description Price (each) Stock
LR127890 COVER - SEAT TRACK $29.69 To Order
LR139482 COVER - SEAT TRACK $29.69 To Order
Photo Part No Description Price (each) Stock
LR127891 COVER - SEAT TRACK $29.69 To Order
LR139481 COVER - SEAT TRACK $29.69 To Order
Photo Part No Description Price (each) Stock
LR127095 COVER - SEAT TRACK $27.61 To Order
Photo Part No Description Price (each) Stock
LR128445 COVER - SEAT TRACK $32.62 To Order
LR139484 COVER - SEAT TRACK $32.62 To Order
Photo Part No Description Price (each) Stock
LR127105 COVER - SEAT TRACK $28.43 To Order
Photo Part No Description Price (each) Stock
LR026762 RETAINER - SEAT $9.48 To Order
Photo Part No Description Price (each) Stock
LR126488 FRAME - SEAT $1,266.43 To Order
LR138413 FRAME - SEAT $1,308.22 To Order
LR144491 FRAME - SEAT $1,106.29 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR126490 FRAME - SEAT $1,563.11 To Order
LR138415 FRAME - SEAT $1,088.57 To Order
LR144493 FRAME - SEAT $1,215.82 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR066134 BRACKET - SEAT SUPPORT $17.21 To Order
Photo Part No Description Price (each) Stock
LR066135 BRACKET - SEAT SUPPORT $15.82 To Order
View All

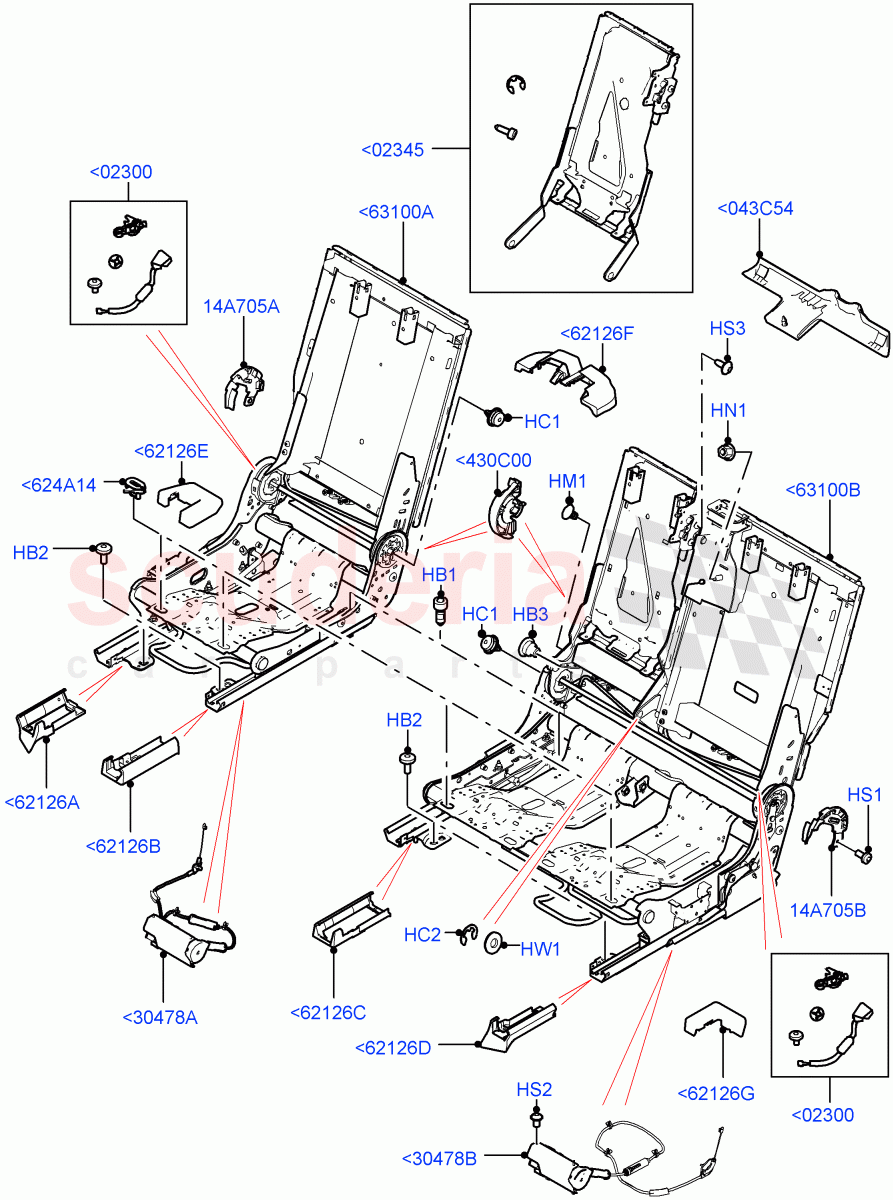

Rear Seat Base (Halewood (UK), 60/40 Load Through With Slide) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<043C54 LR079034
COVER - CROSS TUBE ISOFIX
Ebony Black / From: GH588661 		$37.39 1
<430C00 LR117113
COVER - HINGE
Ebony Black/Ebony Black Interior / LH, 40% Seat, Inner / From: LH000001 / To: NH999999 		$14.95 1
<430C00 LR127933
COVER - HINGE
Oyster Beige / LH, 40% Seat, Inner / From: LH000001 / To: NH999999 		$14.95 1
<430C00 LR127934
COVER - HINGE
Acorn / LH, 40% Seat, Inner / From: LH000001 / To: NH999999 		$13.72 1
<430C00 LR117113
COVER - HINGE
LH, 40% Seat, Inner / From: PH000001 		$14.95 1
<624A14 LR026762
RETAINER - SEAT 		$9.48 4
<02300 LR156813
KIT - CLOCKWORK ASSEMBLY
RH 		$38.36 1
<02300 LR156815
KIT - CLOCKWORK ASSEMBLY
LH 		$41.74 1
<02345 LR159392
KIT - REAR SEAT BACK
Centre, Service Kit 		$488.69 1
<30478A LR073387
MOTOR - SEAT BACK RECLINING
RH / From: LH000001 		$287.91 1
<30478B LR073389
MOTOR - SEAT BACK RECLINING
LH / From: LH000001 		$282.34 1
<62126A LR127889
COVER - SEAT TRACK
Outer, RH Seat / From: LH000001 / To: LH854437 		$29.69 1
<62126A LR139480
COVER - SEAT TRACK
Outer, RH Seat / From: LH854438 		$29.69 1
<62126B LR127892
COVER - SEAT TRACK
Inner, RH Seat / From: LH000001 / To: LH854437 		$29.69 1
<62126B LR139483
COVER - SEAT TRACK
Inner, RH Seat / From: LH854438 		$29.69 1
<62126C LR127890
COVER - SEAT TRACK
Inner, LH Seat / From: LH000001 / To: LH854437 		$29.69 1
<62126C LR139482
COVER - SEAT TRACK
Inner, LH Seat / From: LH854438 		$29.69 1
<62126D LR127891
COVER - SEAT TRACK
LH Seat, Outer / From: LH000001 / To: LH854437 		$29.69 1
<62126D LR139481
COVER - SEAT TRACK
LH Seat, Outer / From: LH854438 		$29.69 1
<62126E LR127095
COVER - SEAT TRACK
RH, Outer / From: LH000001 		$27.61 1
<62126F LR128445
COVER - SEAT TRACK
Centre / From: LH000001 / To: LH862265 		$32.62 1
<62126F LR139484
COVER - SEAT TRACK
Centre / From: LH862266 		$32.62 1
<62126G LR127105
COVER - SEAT TRACK
LH, Outer / From: LH000001 		$28.43 1
<63100A LR126488
FRAME - SEAT
40% Seat, Please Consider Repair Using Repair Component LR156813 / From: LH000001 / To: LH850773 		$1,266.43 1
<63100A LR138413
FRAME - SEAT
40% Seat, Please Consider Repair Using Repair Component LR156813 / From: LH850774 / To: LH870620 		$1,308.22 1
<63100A LR144491
FRAME - SEAT
40% Seat, Please Consider Repair Using Repair Component LR156813 / From: LH870621 / To: NH910036 		$1,106.29 1
<63100A LR166641
FRAME - REAR SEAT BACK RETAINING
40% Seat, Please Consider Repair Using Repair Component LR156813 / From: NH910037 / To: NH999999 		$1,304.36 1
<63100A LR168262
FRAME - SEAT
40% Seat, Please Consider Repair Using Repair Component LR156813 / From: PH000001 		$1,227.06 1
<63100B LR126490
FRAME - SEAT
60% Seat, Please Consider Repair Using Repair Component LR156815 / From: LH000001 / To: LH850773 		$1,563.11 1
<63100B LR138415
FRAME - SEAT
60% Seat, Please Consider Repair Using Repair Component LR156815 / From: LH850774 / To: LH870620 		$1,088.57 1
<63100B LR144493
FRAME - SEAT
60% Seat, Please Consider Repair Using Repair Component LR156815 / From: LH870621 / To: NH910036 		$1,215.82 1
<63100B LR166643
FRAME - REAR SEAT BACK RETAINING
60% Seat, Please Consider Repair Using Repair Component LR156815 / From: NH910037 / To: NH999999 		$1,282.69 1
<63100B LR168263
FRAME - SEAT
60% Seat, Please Consider Repair Using Repair Component LR156815 / From: PH000001 		$1,510.44 1
HB1 LR059292
BOLT
M12 x 25MM 		$3.53 2
HB2 LR126482
BOLT
M10 X 25MM / From: LH000001 		$1.70 4
HB3 LR136547
BOLT
M8 X 12 / From: LH000001 		$2.15 1
HC1 LR007161
CLIP - TRIM
8.5 X 0.8-1.8 / From: LH000001 		$0.93 2
HC2 LR136544
CLIP
From: LH000001 		$1.35 1
HM1 LR114979
CLIP
From: LH000001 		$4.15 1
HN1 LR039505
NUT - FLANGED
60% Seat, Long End / From: LH000001 		$18.98 1
HS1 LR136552
SCREW 		$1.09 2
HS2 LR136550
SCREW 		$1.94 4
HS3 LR136549
SCREW
M5 X 12MM / From: LH000001 		$1.82 8
HW1 LR085506
WASHER
60% Seat, Seat Back / From: GH596011 		$2.69 1
14A705A LR066134
BRACKET - SEAT SUPPORT
RH 		$17.21 1
14A705B LR066135
BRACKET - SEAT SUPPORT
LH 		$15.82 1
