Front Seat Base (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Front Seat Base (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR114894 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR026775 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR029121 SCREW - PAN HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR114982 PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR067428 SCREW Enquire To Order
LR127740 Screw Enquire To Order
Photo Part No Description Price (each) Stock
LR068153 BRACKET - SEAT MOUNTING Enquire To Order
LR118485 BRACKET - SEAT MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR079655 FRAME - SEAT Enquire To Order
LR079656 FRAME - SEAT Enquire To Order
LR079657 FRAME - SEAT Enquire To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR058759 COVER - FRONT SEAT TRACK SUPPORT Enquire To Order
LR058759 COVER - FRONT SEAT TRACK SUPPORT Enquire To Order
LR118506 COVER - FRONT SEAT TRACK SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR058764 COVER - FRONT SEAT TRACK SUPPORT Enquire To Order
LR058764 COVER - FRONT SEAT TRACK SUPPORT Enquire To Order
LR118507 COVER - FRONT SEAT TRACK SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR154975 MOTOR - SEAT ADJUSTER Enquire To Order
LR154976 MOTOR - SEAT ADJUSTER Enquire To Order
Photo Part No Description Price (each) Stock
LR154842 MOTOR - SEAT ADJUSTER Enquire To Order
LR154843 MOTOR - SEAT ADJUSTER Enquire To Order
Photo Part No Description Price (each) Stock
LR077065 TRAY - PACKAGE Enquire To Order
LR116783 TRAY - PACKAGE Enquire To Order
Photo Part No Description Price (each) Stock
LR118221 TRAY - PACKAGE Enquire To Order
Photo Part No Description Price (each) Stock
LR116782 TRAY - PACKAGE Enquire To Order
View All

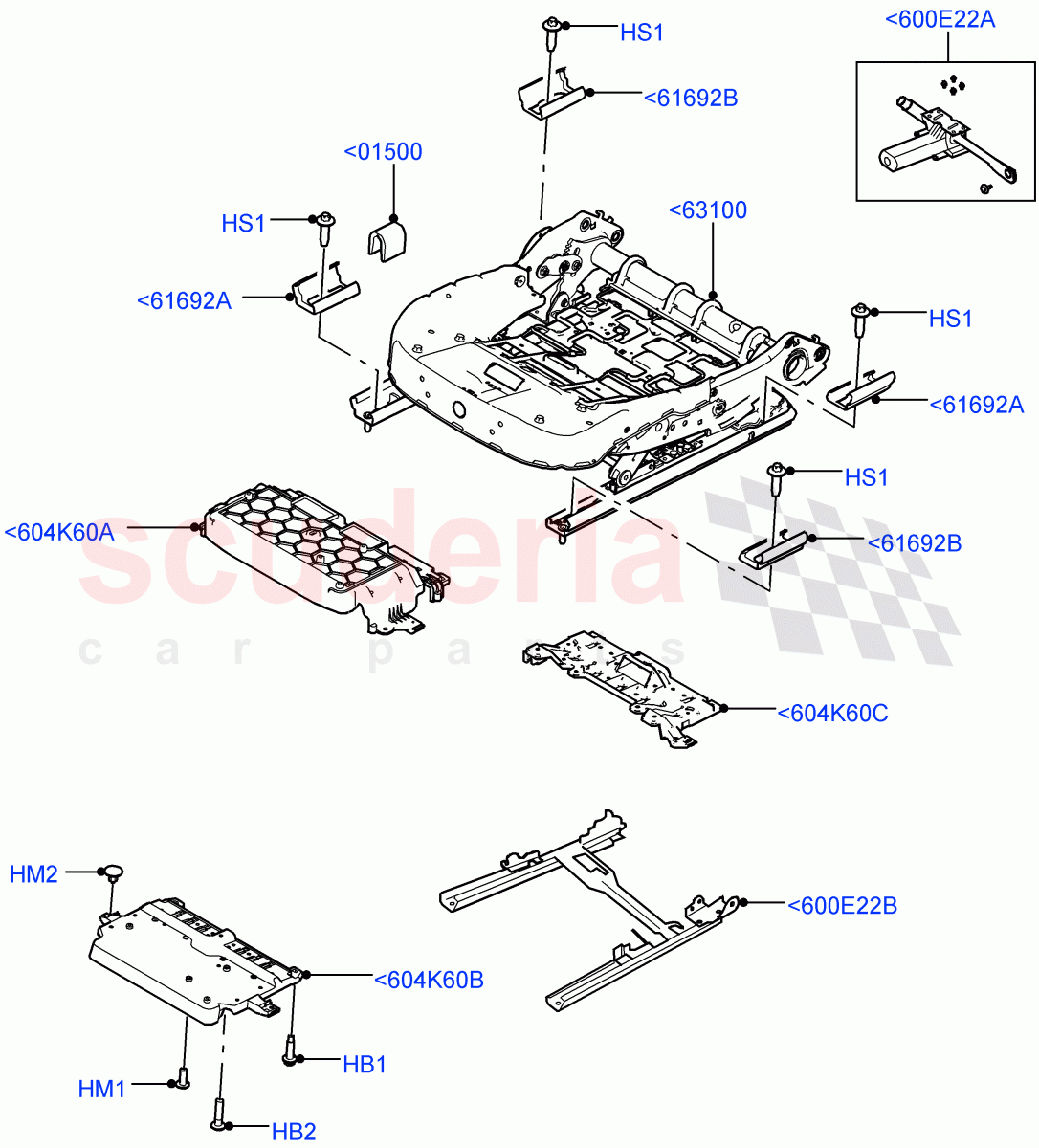

Front Seat Base (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<600E22A LR154975
MOTOR - SEAT ADJUSTER
Electric Front Seat Adj Non-Memory, Seat Cushion Power Fore/Aft / RH, Seat Height Adjust 		- 1 Enquire
<600E22A LR154976
MOTOR - SEAT ADJUSTER
Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft / LH, Seat Height Adjust 		- 1 Enquire
<600E22B LR154842
MOTOR - SEAT ADJUSTER
Electric Front Seat Adj Drv Memory, Seat Cushion Power Fore/Aft / RH, Fore/Aft Adjustment 		- 1 Enquire
<600E22B LR154843
MOTOR - SEAT ADJUSTER
Electric Front Seat Adj Non-Memory, Seat Cushion Power Fore/Aft / LH, Fore/Aft Adjustment 		- 1 Enquire
<604K60A LR077065
TRAY - PACKAGE
Driver/Pass Elec Fr Seat Adj/Memory / RH/LH / From: FG000001 / To: KG422268 		- 2 Enquire
<604K60A LR116783
TRAY - PACKAGE
Driver/Pass Elec Fr Seat Adj/Memory / RH/LH / From: KG422269 		- 2 Enquire
<604K60B LR118221
TRAY - PACKAGE
Seat Cushion Power Fore/Aft / ECU, RH/LH / From: KG446856 		- 2 Enquire
<604K60C LR116782
TRAY - PACKAGE
Manual Front Seat Adj Driver & Pass, Seat Cushion Power Fore/Aft / ECU, RH/LH / From: KG422269 		- 2 Enquire
<01500 LR068153
BRACKET - SEAT MOUNTING
From: FG000001 / To: KG422268 		- 1 Enquire
<01500 LR118485
BRACKET - SEAT MOUNTING
From: KG422269 		- 2 Enquire
<61692A LR058759
COVER - FRONT SEAT TRACK SUPPORT
Front RH, LH Rear, RH Seat / From: FG000001 / To: KG422268 		- 2 Enquire
<61692A LR058759
COVER - FRONT SEAT TRACK SUPPORT
LH Rear, LH Seat / From: FG000001 / To: KG422268 		- 1 Enquire
<61692A LR118506
COVER - FRONT SEAT TRACK SUPPORT
RH / From: KG422269 		- 3 Enquire
<61692B LR058764
COVER - FRONT SEAT TRACK SUPPORT
LH Front, LH Seat, RH Rear / From: FG000001 / To: KG422268 		- 2 Enquire
<61692B LR058764
COVER - FRONT SEAT TRACK SUPPORT
RH Rear, RH Seat / From: FG000001 / To: KG422268 		- 1 Enquire
<61692B LR118507
COVER - FRONT SEAT TRACK SUPPORT
LH / From: KG422269 		- 3 Enquire
<63100 LR079655
FRAME - SEAT
Electric Front Seat Adj Non-Memory / RH / From: FG000001 / To: HG354824 		- 1 Enquire
<63100 LR079656
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory / RH / From: FG000001 / To: HG354824 		- 1 Enquire
<63100 LR079657
FRAME - SEAT
Electric Front Seat Adj Non-Memory / LH / From: FG000001 / To: HG354824 		- 1 Enquire
<63100 LR079658
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory / LH / From: FG000001 / To: HG354824 		- 1 Enquire
<63100 LR087291
FRAME - SEAT
Electric Front Seat Adj Non-Memory / RH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / From: HG354825 / To: KG422268 		- 1 Enquire
<63100 LR087292
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory / RH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment / From: HG354825 / To: KG422268 		- 1 Enquire
<63100 LR087294
FRAME - SEAT
Electric Front Seat Adj Non-Memory / LH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: HG354825 / To: KG422268 		- 1 Enquire
<63100 LR087295
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory / LH, Includes Seat Motors, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: HG354825 / To: KG422268 		- 1 Enquire
<63100 LR116387
FRAME
Electric Front Seat Adj Non-Memory / LH, Includes Seat Motors / From: KG422269 / To: KG446856 		- 1 Enquire
<63100 LR116388
FRAME
Driver/Pass Elec Fr Seat Adj/Memory / LH, Includes Seat Motors / From: KG422269 / To: KG446856 		- 1 Enquire
<63100 LR116383
FRAME
Electric Front Seat Adj Non-Memory / RH, Includes Seat Motors / From: KG422269 / To: KG446856 		- 1 Enquire
<63100 LR116384
FRAME
Driver/Pass Elec Fr Seat Adj/Memory / RH, Includes Seat Motors / From: KG422269 / To: KG446856 		- 1 Enquire
<63100 LR127725
FRAME - SEAT
Electric Front Seat Adj Drv Memory, Less Front Seat Bolster, Seat Cushion Power Fore/Aft / LH, Includes Seat Motors / From: KG446857 		- 1 Enquire
<63100 LR127734
FRAME - SEAT
Less Seat Adjuster, Seat Cushion Power Fore/Aft / LH / From: KG446857 		- 1 Enquire
<63100 LR127735
FRAME - SEAT
Electric Front Seat Adj Drv Memory, Seat Cushion Power Fore/Aft / LH, Includes Seat Motors / From: KG446857 		- 1 Enquire
<63100 LR128559
FRAME
Less Seat Adjuster, Seat Cushion Power Fore/Aft, With Pass 6 Way Power Seat Adjuster / RH, Includes Seat Motors / From: KG446857 		- 1 Enquire
<63100 LR127732
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft / RH, Includes Seat Motors / From: KG446857 		- 1 Enquire
<63100 LR127754
FRAME - SEAT
Electric Front Seat Adj Non-Memory, Seat Cushion Power Fore/Aft, With Driver 6 Way Pwr.Seat Adjuster / LH, Includes Seat Motors / From: KG446857 		- 1 Enquire
HB1 LR114894
BOLT
ECU / From: MG140569 		- 4 Enquire
HB2 LR026775
SCREW
ECU, M6 X 25MM / From: MG140569 		- 4 Enquire
HM1 LR029121
SCREW - PAN HEAD
Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft / M6X16, Pan Head / From: MG140569 		- 4 Enquire
HM2 LR114982
PIN
Seat Cushion Power Fore/Aft / ECU, Rivet - Push Pin / From: MG140569 		- 4 Enquire
HS1 LR067428
SCREW
M10 x 32MM / From: FG000001 / To: JG421298 		- 8 Enquire
HS1 LR127740
Screw
M10 x 32MM / From: JG421299 		- 8 Enquire
