Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V)...

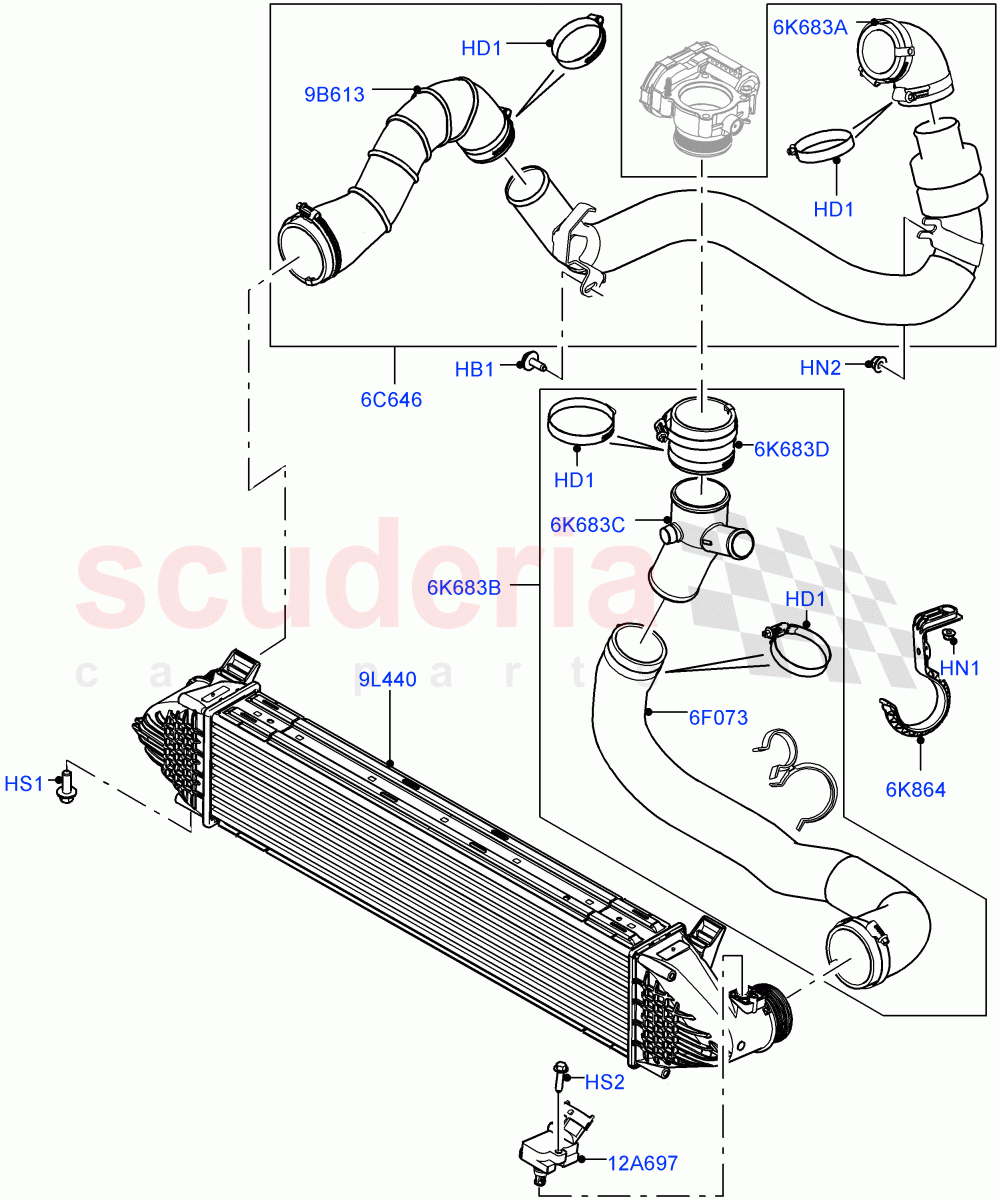

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024636	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049696	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050248	TUBE - OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056322	BRACKET - CHARGE AIR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024516	TUBE - WATER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031467	INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050236	HOSE - INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063269	CONNECTION - AIR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031917	HOSE - AIR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063268	HOSE - CONNECTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM / From: FG000001	-	1	Enquire
HD1	LR024636	CLAMP - HOSE	LR024636 CLAMP - HOSE 50-70MM / From: FG000001	-	4	Enquire
HN1	FX106046	NUT - FLANGED	FX106046 NUT - FLANGED Hexagonal Head, M6 / From: FG000001	-	1	Enquire
HN2	FX108046	NUT - LOCKING	FX108046 NUT - LOCKING M8 / From: FG000001	-	1	Enquire
HS1	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: FG000001	-	2	Enquire
HS2	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor / From: FG000001	-	1	Enquire
6C646	LR049696	DUCT - AIR	LR049696 DUCT - AIR Turbocharger To Intercooler / From: FG000001	-	1	Enquire
6F073	LR050248	TUBE - OUTLET	LR050248 TUBE - OUTLET From: FG000001	-	1	Enquire
6K683A	LR050236	HOSE - INTERCOOLER	LR050236 HOSE - INTERCOOLER Turbocharger Outlet / From: FG000001	-	1	Enquire
6K683B	LR063269	CONNECTION - AIR INLET	LR063269 CONNECTION - AIR INLET Intercooler To Throttle Body / From: FG000001	-	1	Enquire
6K683C	LR031917	HOSE - AIR INLET	LR031917 HOSE - AIR INLET Air Tube Connector, Small - To Purge Valve / From: FG000001	-	1	Enquire
6K683D	LR063268	HOSE - CONNECTING	LR063268 HOSE - CONNECTING Connection, Upper / From: FG000001	-	1	Enquire
6K864	LR056322	BRACKET - CHARGE AIR COOLER	LR056322 BRACKET - CHARGE AIR COOLER From: FG000001	-	1	Enquire
9B613	LR024516	TUBE - WATER INLET	LR024516 TUBE - WATER INLET Intercooler Inlet / From: FG000001	-	1	Enquire
9L440	LR031467	INTERCOOLER	LR031467 INTERCOOLER From: FG000001	-	1	Enquire
12A697	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	LR021587 SENSOR - AIR TEMPERATURE & PRESSURE Sensor - Air Temperature And Pressure / From: FG000001	-	1	Enquire
