Name: Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol)
Rating: 4.5 (1 reviews)

Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C...

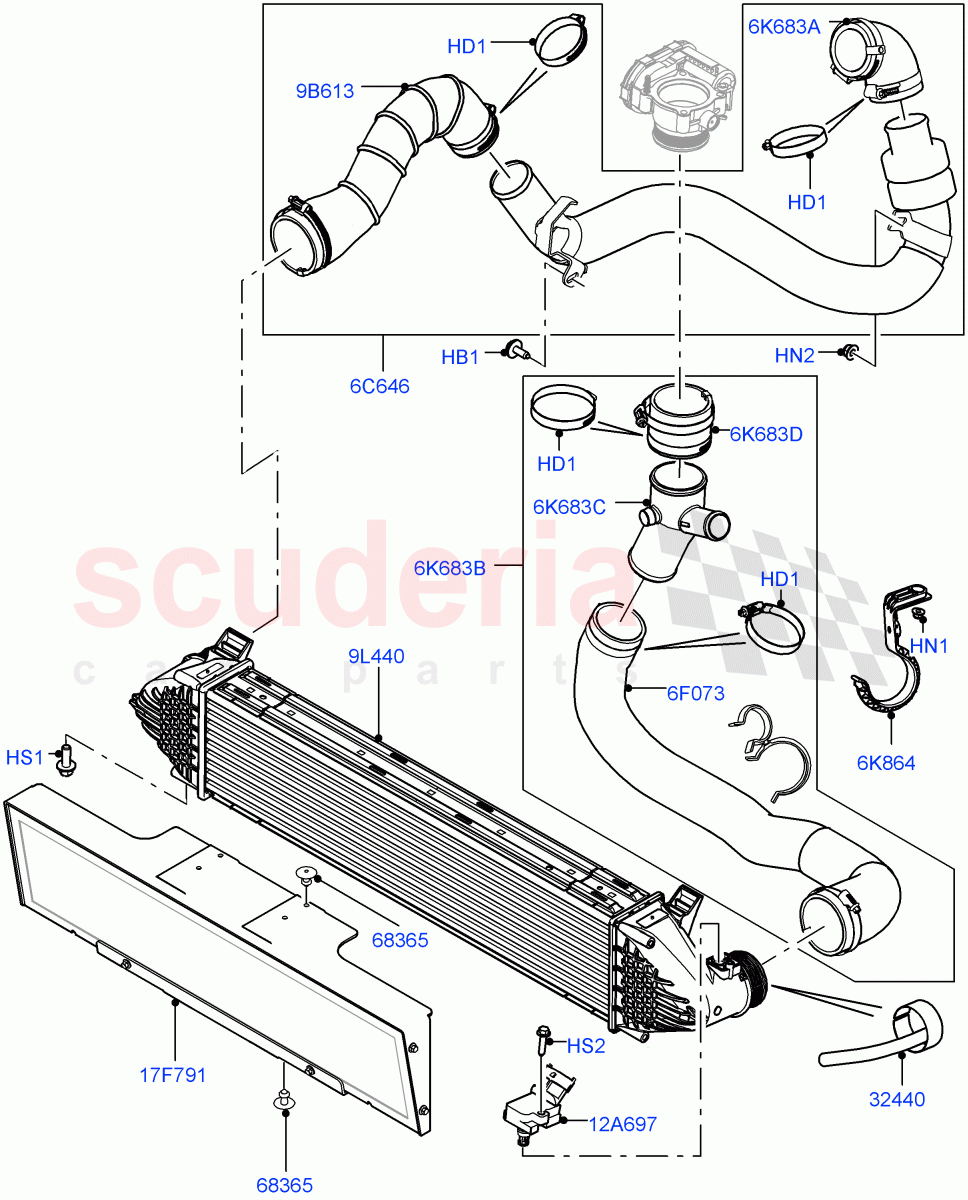

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024636	CLAMP - HOSE	$14.90	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048122	PIPE - AIR INLET	$13.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049458	RIVET - BLIND	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049696	DUCT - AIR	$626.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050248	TUBE - OUTLET	$123.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR056322	BRACKET - CHARGE AIR COOLER	$17.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024516	TUBE - WATER INLET	$149.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031467	INTERCOOLER	$459.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	$62.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067362	MESH - RADIATOR GRILLE	$111.09	To Order
	LR072623	MESH - RADIATOR GRILLE	$212.74	To Order
	LR089147	MESH - RADIATOR GRILLE	$212.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050236	HOSE - INTERCOOLER	$132.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063269	CONNECTION - AIR INLET	$245.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031917	HOSE - AIR INLET	$14.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063268	HOSE - CONNECTING	$56.88	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM	$1.12	1
HD1	LR024636	CLAMP - HOSE	LR024636 CLAMP - HOSE 50-70MM	$14.90	4
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 IN STOCK	$0.61	1
HN2	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 IN STOCK	$0.41	2
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM IN STOCK	$1.19	2
HS2	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor	$0.59	1
6C646	LR049696	DUCT - AIR	LR049696 DUCT - AIR Turbocharger To Intercooler	$626.31	1
6F073	LR050248	TUBE - OUTLET IN STOCK	LR050248 TUBE - OUTLET IN STOCK	$123.32	1
6K683A	LR050236	HOSE - INTERCOOLER	LR050236 HOSE - INTERCOOLER Turbocharger Outlet	$132.38	1
6K683B	LR063269	CONNECTION - AIR INLET	LR063269 CONNECTION - AIR INLET Intercooler To Throttle Body	$245.34	1
6K683C	LR031917	HOSE - AIR INLET	LR031917 HOSE - AIR INLET Air Tube Connector, Small - To Purge Valve	$14.97	1
6K683D	LR063268	HOSE - CONNECTING	LR063268 HOSE - CONNECTING Connection, Upper	$56.88	1
6K864	LR056322	BRACKET - CHARGE AIR COOLER	LR056322 BRACKET - CHARGE AIR COOLER	$17.26	1
9B613	LR024516	TUBE - WATER INLET	LR024516 TUBE - WATER INLET Intercooler Inlet	$149.60	1
9L440	LR031467	INTERCOOLER	LR031467 INTERCOOLER	$459.42	1
12A697	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	LR021587 SENSOR - AIR TEMPERATURE & PRESSURE Sensor - Air Temperature And Pressure	$62.25	1
17F791	LR067362	MESH - RADIATOR GRILLE	LR067362 MESH - RADIATOR GRILLE To: FH505292	$111.09	1
17F791	LR072623	MESH - RADIATOR GRILLE	LR072623 MESH - RADIATOR GRILLE From: FH505293 / To: GH617832	$212.74	1
17F791	LR089147	MESH - RADIATOR GRILLE	LR089147 MESH - RADIATOR GRILLE From: GH617833	$212.74	1
32440	LR048122	PIPE - AIR INLET	LR048122 PIPE - AIR INLET 2.0L 16V TIVCT T/C Gen2 Petrol	$13.57	1
68365	LR049458	RIVET - BLIND	LR049458 RIVET - BLIND 2.0L 16V TIVCT T/C Gen2 Petrol	$0.99	8
