Front Brake Discs And Calipers (Changsu (China), Disc And Caliper Size-Frt 18/RR 16, Disc And Caliper Size-Frt 18/RR 17) ((V) FROMMG140569) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Front Brake Discs And Calipers (Changsu (China), Disc And Caliper Size-Frt 18/RR 16, Disc And...

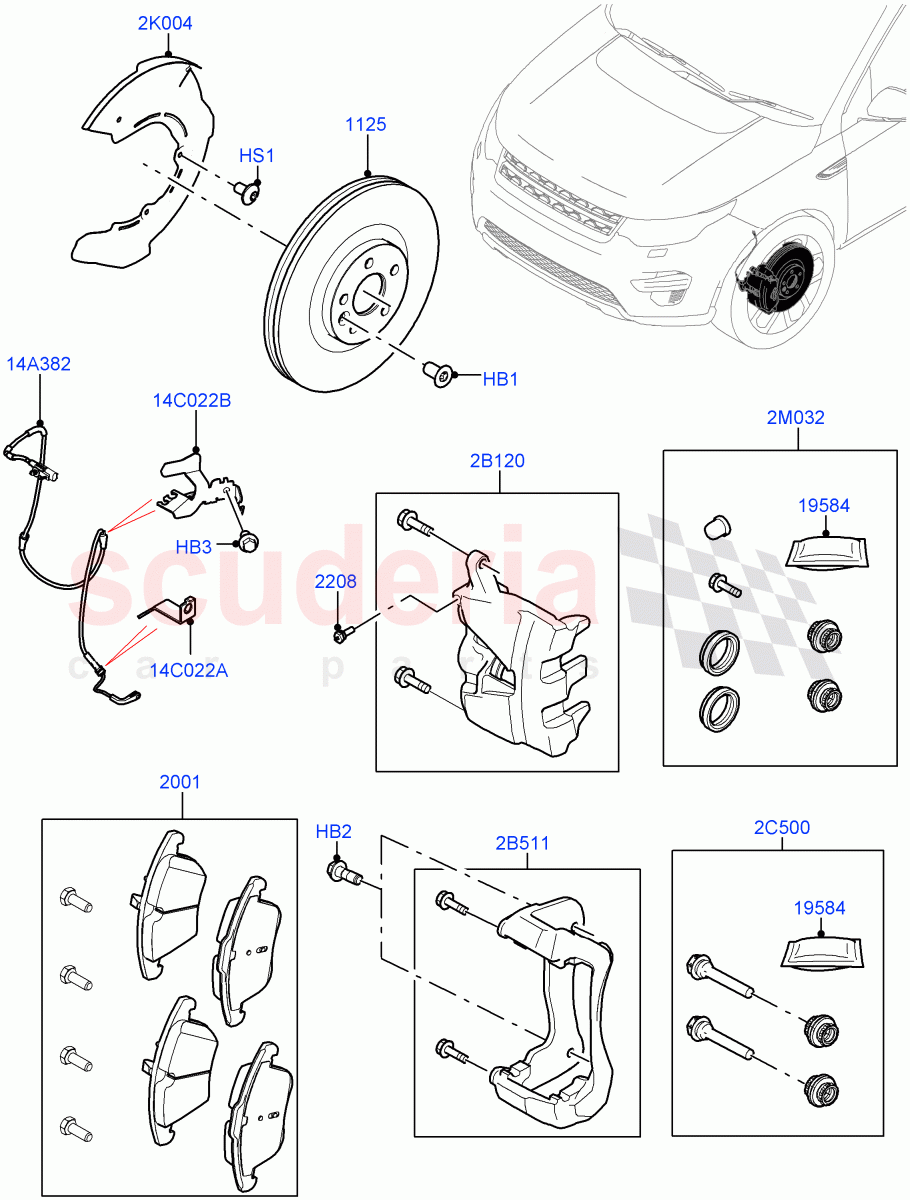

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR139520	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090697	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115006	DISC - BRAKE - VENTED	Enquire	To Order
	LR115005	DISC - BRAKE - VENTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160477	BRAKE PADS - WITH SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140694	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090821	GREASE - CHASSIS LUBRICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140645	CALIPER - BRAKE	Enquire	To Order
	LR140647	CALIPER - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140643	BRACKET - BRAKE CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140649	KIT - LOCATING PIN BOLTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118813	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR118814	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR118812	SHIELD - SPLASH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR140732	KIT - CALIPER BRAKE PAD MTG PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115018	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order
	LR115019	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064690	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115016	BRACKET - WIRING	Enquire	To Order
	LR115017	BRACKET - WIRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR139520	BOLT	LR139520 BOLT M8 X 12, Torx / From: MG140569	-	2	Enquire
HB2	LR090697	BOLT	LR090697 BOLT Hexagonal Head, M14 X 43mm / From: MG140569	-	4	Enquire
HB3	FS108166	BOLT	FS108166 BOLT Hexagonal Head, M8 X 16MM / From: MG140569	-	2	Enquire
HS1	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Torx / From: MG140569	-	6	Enquire
2B120	LR140645	CALIPER - BRAKE	LR140645 CALIPER - BRAKE Disc And Caliper Size-Frt 18/RR 16 / RH, For 18" Brakes / From: MG140569	-	1	Enquire
2B120	LR140647	CALIPER - BRAKE	LR140647 CALIPER - BRAKE Disc And Caliper Size-Frt 18/RR 17 / LH, For 18" Brakes / From: MG140569	-	1	Enquire
2B511	LR140643	BRACKET - BRAKE CALIPER	LR140643 BRACKET - BRAKE CALIPER Disc And Caliper Size-Frt 18/RR 17 / RH/LH / From: MG140569	-	2	Enquire
2C500	LR140649	KIT - LOCATING PIN BOLTS	LR140649 KIT - LOCATING PIN BOLTS Caliper Set, Pin And Boot / From: MG140569	-	2	Enquire
2K004	LR118813	SHIELD - BRAKE DISC SPLASH	LR118813 SHIELD - BRAKE DISC SPLASH Disc Brake Size Frt 17/RR 16 / RH / From: MG140569	-	1	Enquire
2K004	LR118814	SHIELD - BRAKE DISC SPLASH	LR118814 SHIELD - BRAKE DISC SPLASH Disc Brake Size Frt 17/RR 16 / LH / From: MG140569	-	1	Enquire
2K004	LR118812	SHIELD - SPLASH	LR118812 SHIELD - SPLASH Disc And Caliper Size-Frt 18/RR 16 / RH / From: MG140569	-	1	Enquire
2K004	LR118811	SHIELD - SPLASH	LR118811 SHIELD - SPLASH Disc And Caliper Size-Frt 18/RR 16 / LH / From: MG140569	-	1	Enquire
2M032	LR140732	KIT - CALIPER BRAKE PAD MTG PARTS	LR140732 KIT - CALIPER BRAKE PAD MTG PARTS Caliper Set / From: MG140569	-	2	Enquire
14A382	LR115018	WIRE - BRAKE PAD WEAR WARNING	LR115018 WIRE - BRAKE PAD WEAR WARNING Disc And Caliper Size-Frt 18/RR 16 / From: MG140569	-	1	Enquire
14A382	LR115019	WIRE - BRAKE PAD WEAR WARNING	LR115019 WIRE - BRAKE PAD WEAR WARNING Disc Brake Size Frt 17/RR 17 / From: MG140569	-	1	Enquire
14C022A	LR064690	BRACKET - WIRING	LR064690 BRACKET - WIRING Front Disc And Caliper Size 17 / From: MG140569	-	1	Enquire
14C022B	LR115016	BRACKET - WIRING	LR115016 BRACKET - WIRING RH, Front, Mounted To Damper / From: MG140569	-	1	Enquire
14C022B	LR115017	BRACKET - WIRING	LR115017 BRACKET - WIRING LH, Front, Mounted To Damper / From: MG140569	-	1	Enquire
1125	LR115006	DISC - BRAKE - VENTED	LR115006 DISC - BRAKE - VENTED Disc And Caliper Size-Frt 18/RR 17 / 349MM, RH/LH / From: MG140569	-	2	Enquire
1125	LR115005	DISC - BRAKE - VENTED	LR115005 DISC - BRAKE - VENTED Front Disc And Caliper Size 17 / 325MM, RH/LH / From: MG140569	-	2	Enquire
2001	LR160477	BRAKE PADS - WITH SPRINGS	LR160477 BRAKE PADS - WITH SPRINGS Disc And Caliper Size-Frt 18/RR 17 / Axle Set, For 18" Brakes, Less Clips, Standard Performance / From: MG140569	-	1	Enquire
2208	LR140694	SCREW - BLEED	LR140694 SCREW - BLEED From: MG140569	-	2	Enquire
19584	LR090821	GREASE - CHASSIS LUBRICATION	LR090821 GREASE - CHASSIS LUBRICATION From: MG140569	-	1	Enquire
