Front Brake Discs And Calipers (Halewood (UK), Front Disc And Caliper Size 17, Disc Brake Size Frt 17/RR 17) ((V) FROMHH000001, (V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Front Brake Discs And Calipers (Halewood (UK), Front Disc And Caliper Size 17, Disc Brake Size Frt...

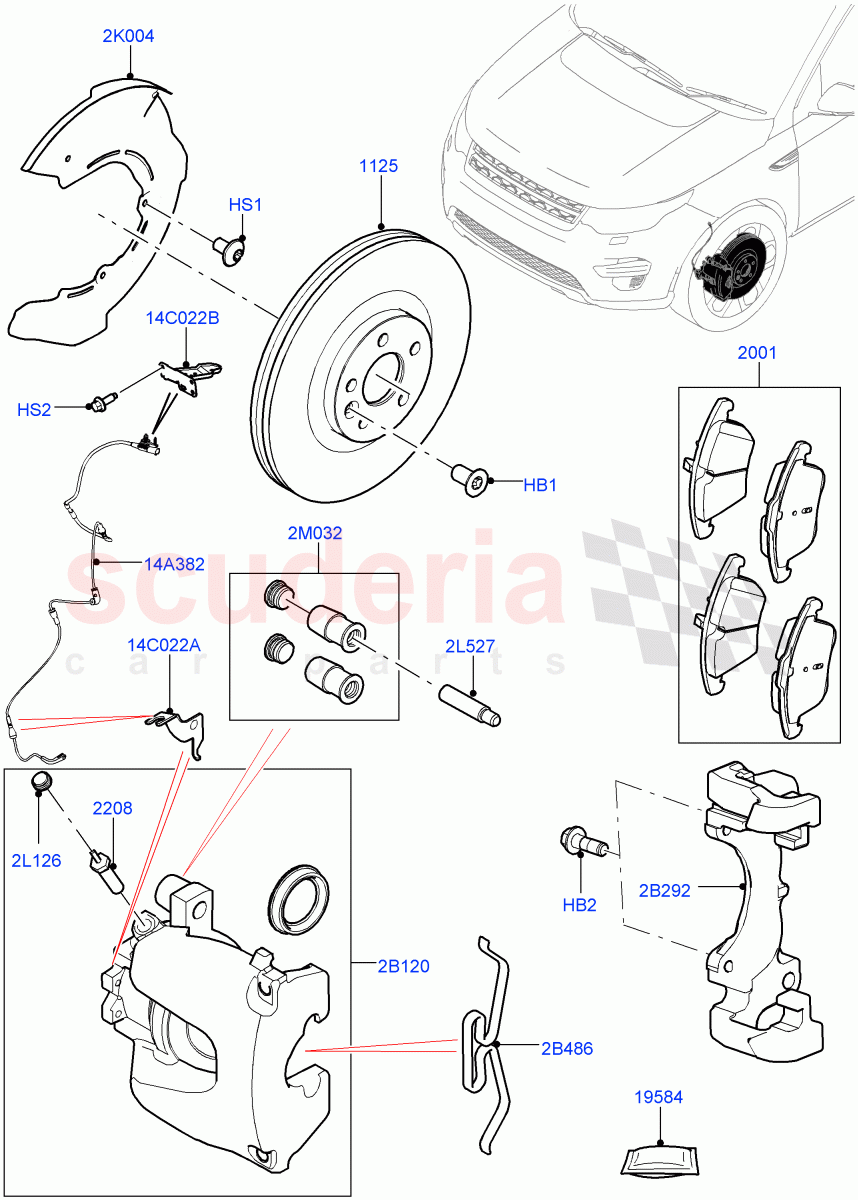

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058339	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059122	DISC - BRAKE - VENTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128263	BRAKE PADS - LESS SPRINGS	Enquire	To Order
	LR160540	BRAKE PADS - LESS SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061377	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090821	GREASE - CHASSIS LUBRICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061369	CALIPER - BRAKE	Enquire	To Order
	LR061370	CALIPER - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061366	BRACKET - BRAKE CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061374	SPRING - BRAKE CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057825	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR057826	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR118813	SHIELD - BRAKE DISC SPLASH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027312	CAP - BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061375	KIT - RETAINING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061376	KIT - BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061365	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order
	LR121267	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064690	BRACKET - WIRING	Enquire	To Order
	LR118035	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079314	BRACKET - WIRING CONNECTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR002080	BOLT	LR002080 BOLT M10 X 20MM, Torx / From: HH000001	-	2	Enquire
HB2	LR058339	BOLT	LR058339 BOLT M12 X 42MM / From: HH000001	-	4	Enquire
HS1	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Torx / From: HH000001	-	6	Enquire
HS2	RYG500190	SCREW	RYG500190 SCREW Hexagonal Head, M6 X 16MM / From: HH000001 / To: KH999999	-	2	Enquire
2B120	LR061369	CALIPER - BRAKE	LR061369 CALIPER - BRAKE RH, For 17" Brakes / From: HH000001	-	1	Enquire
2B120	LR061370	CALIPER - BRAKE	LR061370 CALIPER - BRAKE LH, For 17" Brakes / From: HH000001	-	1	Enquire
2B292	LR061366	BRACKET - BRAKE CALIPER	LR061366 BRACKET - BRAKE CALIPER RH/LH, To Caliper / From: HH000001	-	2	Enquire
2B486	LR061374	SPRING - BRAKE CALIPER	LR061374 SPRING - BRAKE CALIPER From: HH000001	-	2	Enquire
2K004	LR057825	SHIELD - BRAKE DISC SPLASH	LR057825 SHIELD - BRAKE DISC SPLASH RH / From: HH000001 / To: KH822266	-	1	Enquire
2K004	LR057826	SHIELD - BRAKE DISC SPLASH	LR057826 SHIELD - BRAKE DISC SPLASH LH / From: HH000001 / To: KH822266	-	1	Enquire
2K004	LR118813	SHIELD - BRAKE DISC SPLASH	LR118813 SHIELD - BRAKE DISC SPLASH RH / From: KH822267	-	1	Enquire
2K004	LR118814	SHIELD - BRAKE DISC SPLASH	LR118814 SHIELD - BRAKE DISC SPLASH LH / From: KH822267	-	1	Enquire
2L126	LR027312	CAP - BLEED SCREW	LR027312 CAP - BLEED SCREW From: HH000001	-	2	Enquire
2L527	LR061375	KIT - RETAINING PIN	LR061375 KIT - RETAINING PIN Pin - Slide / From: HH000001	-	4	Enquire
2M032	LR061376	KIT - BUSH	LR061376 KIT - BUSH Includes 2 Slide Pin Bushes And 2 Caps / From: HH000001	-	2	Enquire
14A382	LR061365	WIRE - BRAKE PAD WEAR WARNING	LR061365 WIRE - BRAKE PAD WEAR WARNING From: HH000001 / To: KH803030	-	1	Enquire
14A382	LR121267	WIRE - BRAKE PAD WEAR WARNING	LR121267 WIRE - BRAKE PAD WEAR WARNING From: KH803031 / To: KH999999	-	1	Enquire
14C022A	LR064690	BRACKET - WIRING	LR064690 BRACKET - WIRING From: HH000001 / To: KH803030	-	2	Enquire
14C022A	LR118035	BRACKET - WIRING	LR118035 BRACKET - WIRING From: KH803031	-	1	Enquire
14C022B	LR079314	BRACKET - WIRING CONNECTOR	LR079314 BRACKET - WIRING CONNECTOR From: HH000001 / To: KH999999	-	1	Enquire
1125	LR059122	DISC - BRAKE - VENTED	LR059122 DISC - BRAKE - VENTED 325MM, For 17" Brakes, RH/LH / From: HH000001 / To: KH999999	-	2	Enquire
2001	LR128263	BRAKE PADS - LESS SPRINGS	LR128263 BRAKE PADS - LESS SPRINGS From: HH000001 / To: KH826531	-	1	Enquire
2001	LR160540	BRAKE PADS - LESS SPRINGS	LR160540 BRAKE PADS - LESS SPRINGS From: KH826532	-	1	Enquire
2208	LR061377	SCREW - BLEED	LR061377 SCREW - BLEED With Cap / From: HH000001	-	2	Enquire
19584	LR090821	GREASE - CHASSIS LUBRICATION	LR090821 GREASE - CHASSIS LUBRICATION From: HH000001	-	1	Enquire
