Rear Suspension Arms (Halewood (Uk))

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Rear Suspension Arms (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR060782 BOLT - FLANGED HEX. Enquire To Order
LR060782 BOLT - FLANGED HEX. Enquire To Order
LR072613 BOLT - FLANGED HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR060781 BOLT - FLANGED HEX. Enquire To Order
LR139259 BOLT - FLANGED HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR065396 BOLT - FLANGED HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR065710 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR033244 NUT Enquire To Order
LR033244 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FY110056 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR090533 NUT - FLAG TYPE Enquire To Order
Photo Part No Description Price (each) Stock
LR090556 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR140095 NUT - FLAG TYPE Enquire To Order
LR145207 NUT - FLAG TYPE Enquire To Order
Photo Part No Description Price (each) Stock
LR060780 WASHER - ADJUSTING Enquire To Order
Photo Part No Description Price (each) Stock
LR068229 COVER - SUSPENSION ARM Enquire To Order
Photo Part No Description Price (each) Stock
LR060768 ARM - REAR SUSPENSION Enquire To Order
LR060763 ARM - REAR SUSPENSION Enquire To Order
LR073525 ARM - REAR SUSPENSION Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060775 ARM - REAR SUSPENSION Enquire To Order
LR060774 ARM - REAR SUSPENSION Enquire To Order
LR076679 ARM - REAR SUSPENSION Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR068167 ARM - REAR SUSPENSION Enquire To Order
LR068166 ARM - REAR SUSPENSION Enquire To Order
LR113740 ARM - REAR SUSPENSION Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060773 LINK - SUSPENSION ARM Enquire To Order
View All

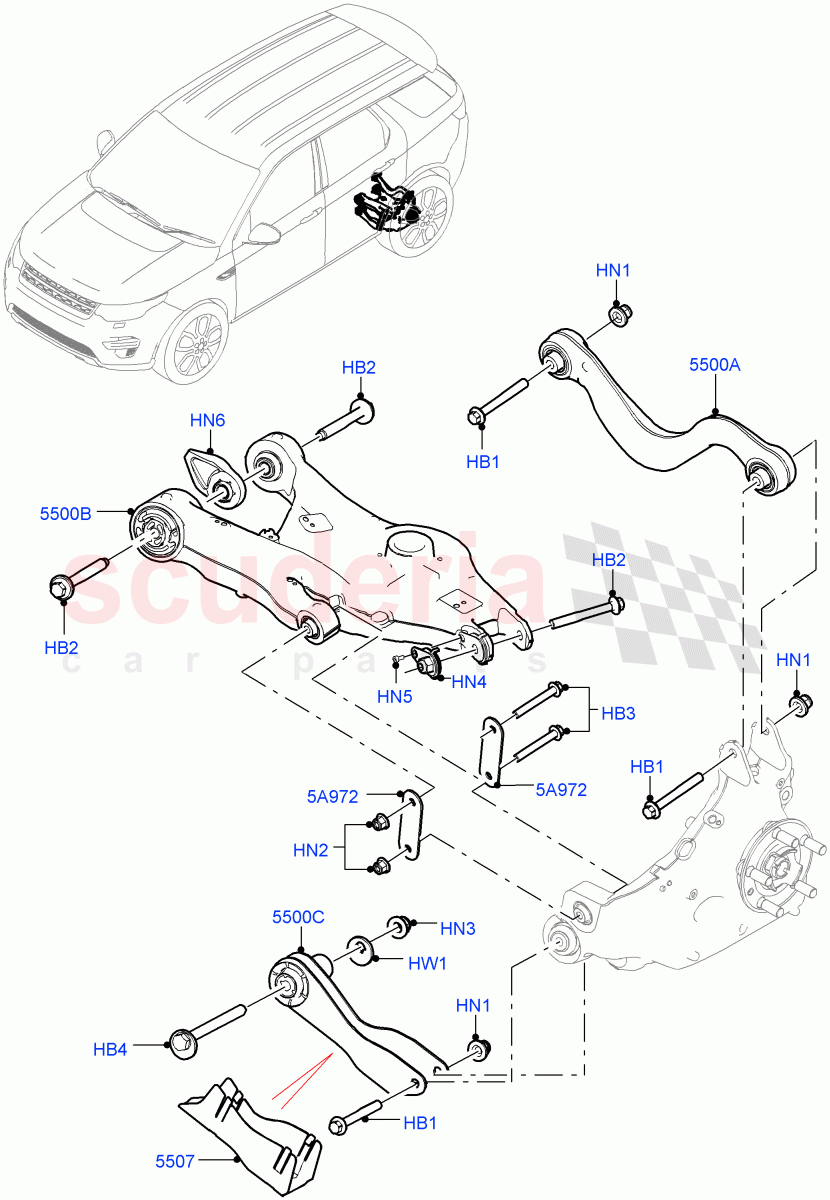

Rear Suspension Arms (Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR060782
BOLT - FLANGED HEX.
M12 x 100MM, Upper Arm 		- 4 Enquire
HB1 LR060782
BOLT - FLANGED HEX.
Lower Arm, M12 x 100MM / To: GH562598 		- 2 Enquire
HB1 LR072613
BOLT - FLANGED HEX.
Lower Arm, M12 x 100MM / From: GH562599 		- 2 Enquire
HB2 LR060781
BOLT - FLANGED HEX.
M14 x 110MM / To: KH999999 		- 6 Enquire
HB2 LR139259
BOLT - FLANGED HEX.
Hexagonal Head, M14 x 115 / From: LH000001 		- 6 Enquire
HB3 LR065396
BOLT - FLANGED HEX.
M10 x 70MM 		- 4 Enquire
HB4 LR065710
BOLT
Adjusting, Hexagonal Head, M14 X 130MM 		- 2 Enquire
HN1 LR033244
NUT
Hexagonal Head, Lower Arm, M12 		- 2 Enquire
HN1 LR033244
NUT
Hexagonal Head, M12, Upper Arm 		- 4 Enquire
HN2 FY110056
NUT
M10 		- 4 Enquire
HN3 FY114056
NUT - HEX.
Hexagonal Head, M14 		- 2 Enquire
HN4 LR090533
NUT - FLAG TYPE
Flag Type, Hexagonal Head, M14X2.0 		- 2 Enquire
HN5 LR090556
SCREW
M5X0.8X10 		- 2 Enquire
HN6 LR140095
NUT - FLAG TYPE
Electric Engine Battery-PHEV / From: LH000001 / To: LH999999 		- 4 Enquire
HN6 LR145207
NUT - FLAG TYPE
Electric Engine Battery-PHEV / Flag Type / From: MH000001 		- 4 Enquire
HW1 LR060780
WASHER - ADJUSTING
Adjusting 		- 2 Enquire
5A972 LR060773
LINK - SUSPENSION ARM
Suspension Arm To Knuckle 		- 4 Enquire
5500A LR060768
ARM - REAR SUSPENSION
LH Upper / To: FH511118 		- 1 Enquire
5500A LR060763
ARM - REAR SUSPENSION
RH Upper / To: FH511118 		- 1 Enquire
5500A LR073525
ARM - REAR SUSPENSION
RH Upper / From: FH511119 / To: FH543634 		- 1 Enquire
5500A LR073526
ARM - REAR SUSPENSION
LH Upper / From: FH511119 / To: FH543634 		- 1 Enquire
5500A LR078519
ARM - REAR SUSPENSION
RH Upper / From: FH543635 / To: KH999999 		- 1 Enquire
5500A LR078520
ARM - REAR SUSPENSION
LH Upper / From: FH543635 / To: KH999999 		- 1 Enquire
5500A LR078519
ARM - REAR SUSPENSION
Less 3rd Row Rear Seat, Less Electric Engine Battery / RH Upper / From: LH000001 		- 1 Enquire
5500A LR078520
ARM - REAR SUSPENSION
Less 3rd Row Rear Seat, Less Electric Engine Battery / LH Upper / From: LH000001 		- 1 Enquire
5500A LR137509
ARM - REAR SUSPENSION
Less Adaptive Damping, With 3rd Row Double Seat / RH Upper / From: LH000001 		- 1 Enquire
5500A LR137510
ARM - REAR SUSPENSION
Less Adaptive Damping, With 3rd Row Double Seat / LH Upper / From: LH000001 		- 1 Enquire
5500B LR060775
ARM - REAR SUSPENSION
LH Lower, Rear / To: FH535143 		- 1 Enquire
5500B LR060774
ARM - REAR SUSPENSION
Rear, RH Lower / To: FH533971 		- 1 Enquire
5500B LR076679
ARM - REAR SUSPENSION
LH Lower, Rear / From: FH535144 / To: GH635151 		- 1 Enquire
5500B LR076678
ARM - REAR SUSPENSION
Rear, RH Lower / From: FH533972 / To: GH635151 		- 1 Enquire
5500B LR088530
ARM - REAR SUSPENSION
LH Lower, Rear / From: GH635152 / To: HH705952 		- 1 Enquire
5500B LR088535
M - REAR SUSPENSION
Rear, RH Lower / From: GH635152 / To: HH705952 		- 1 Enquire
5500B LR098947
ARM - REAR SUSPENSION
Rear, RH Lower / From: HH705953 / To: KH999999 		- 1 Enquire
5500B LR098947
ARM - REAR SUSPENSION
Less 3rd Row Rear Seat, Less Electric Engine Battery / Rear, RH Lower / From: LH000001 		- 1 Enquire
5500B LR098944
ARM - REAR SUSPENSION
LH Lower, Rear / From: HH705953 / To: KH999999 		- 1 Enquire
5500B LR098944
ARM - REAR SUSPENSION
Less 3rd Row Rear Seat, Less Electric Engine Battery / LH Lower, Rear / From: LH000001 		- 1 Enquire
5500B LR137507
ARM - REAR SUSPENSION
Less Adaptive Damping, With 3rd Row Double Seat / Rear, RH Lower / From: LH000001 		- 1 Enquire
5500B LR137508
ARM - REAR SUSPENSION
Less Adaptive Damping, With 3rd Row Double Seat / LH Lower, Rear / From: LH000001 		- 1 Enquire
5500C LR068167
ARM - REAR SUSPENSION
(-)"CDN/MEX/USA" / (+) ROW, Front, LH Lower / To: HH670157 		- 1 Enquire
5500C LR068166
ARM - REAR SUSPENSION
(-)"CDN/MEX/USA" / (+) ROW, Front, RH Lower / To: HH670157 		- 1 Enquire
5500C LR113740
ARM - REAR SUSPENSION
(+)"CDN/MEX/USA", With Standard Suspension / Front, LH Lower / To: KH826835 		- 1 Enquire
5500C LR113739
ARM - REAR SUSPENSION
(+)"CDN/MEX/USA", With Standard Suspension / Front, RH Lower / To: KH826835 		- 1 Enquire
5500C LR097279
ARM - REAR SUSPENSION
(-)"CDN/MEX/USA", With Standard Suspension / (+) ROW, Front, RH Lower / From: HH670158 / To: KH999999 		- 1 Enquire
5500C LR095330
ARM - REAR SUSPENSION
Heavy Duty Suspension / Front, RH Lower / From: HH670158 / To: KH999999 		- 1 Enquire
5500C LR097278
ARM - REAR SUSPENSION
(-)"CDN/MEX/USA", With Standard Suspension / (+) ROW, Front, LH Lower / From: HH670158 / To: KH999999 		- 1 Enquire
5500C LR095329
ARM - REAR SUSPENSION
Heavy Duty Suspension / Front, LH Lower / From: HH670158 / To: KH999999 		- 1 Enquire
5500C LR124618
ARM - REAR SUSPENSION
Front, LH Lower / From: LH000001 		- 1 Enquire
5500C LR124617
ARM - REAR SUSPENSION
Front, RH Lower / From: LH000001 		- 1 Enquire
5500C LR125868
ARM - REAR SUSPENSION
(+)"CDN/MEX/USA", With Standard Suspension / Front, LH Lower / From: KH826836 / To: KH999999 		- 1 Enquire
5500C LR125871
ARM - REAR SUSPENSION
(+)"CDN/MEX/USA", With Standard Suspension / Front, RH Lower / From: KH826836 / To: KH999999 		- 1 Enquire
5507 LR068229
COVER - SUSPENSION ARM 		- 2 Enquire
