Rear Axle (Itatiaia (Brazil), Efficient Driveline) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

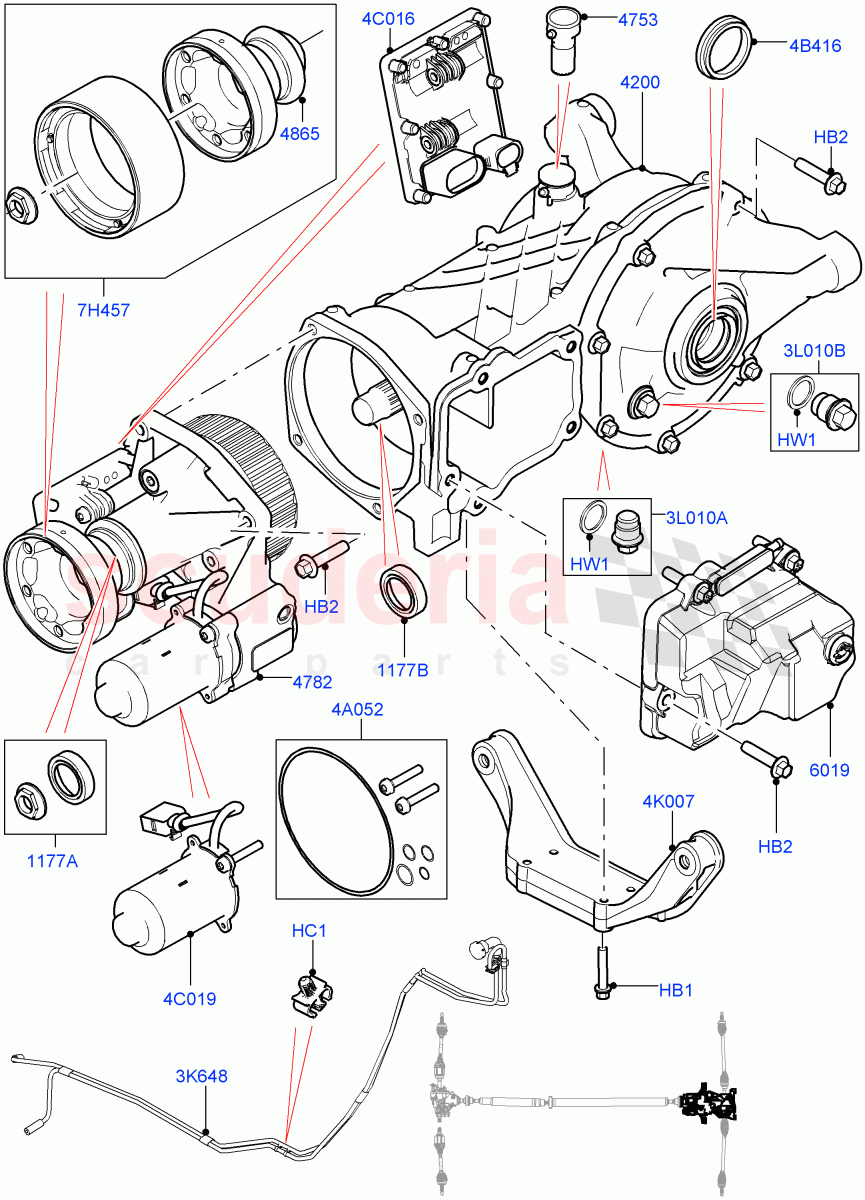

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Rear Axle (Itatiaia (Brazil), Efficient Driveline) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR003777	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004136	BOLT - HEX.HEAD	Enquire	To Order
	LR004136	BOLT - HEX.HEAD	Enquire	To Order
	LR004136	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037085	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001949	WASHER - DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072726	DIFFERENTIAL AND CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051312	PIPE - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073538	COUPLING - DRIVE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101752	FLANGE - COUPLING SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051320	COVER - OIL RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076676	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003148	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060388	TUBE - BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051347	KIT - OIL SEALS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003144	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073537	CONTROL UNIT - HALDEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051321	PUMP - HALDEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051311	BRACKET - DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031697	FLANGE - DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061614	PLUG - DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076677	PLUG - FILLER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR003777	BOLT	LR003777 BOLT M8 x 50MM / From: GT000001	-	4	Enquire
HB2	LR004136	BOLT - HEX.HEAD	LR004136 BOLT - HEX.HEAD M8 X 35MM, Oil Pan / From: GT000001	-	5	Enquire
HB2	LR004136	BOLT - HEX.HEAD	LR004136 BOLT - HEX.HEAD Differential Cover, M8 X 35MM / From: GT000001	-	7	Enquire
HB2	LR004136	BOLT - HEX.HEAD	LR004136 BOLT - HEX.HEAD For Haldex, M8 X 35MM / From: GT000001	-	4	Enquire
HC1	LR037085	CLIP - DOUBLE	LR037085 CLIP - DOUBLE 6MM, Double / From: GT000001	-	1	Enquire
HW1	LR001949	WASHER - DRAIN PLUG	LR001949 WASHER - DRAIN PLUG 18 X 24 X 1.5, Sealing Washer / From: GT000001	-	2	Enquire
3K648	LR060388	TUBE - BREATHER	LR060388 TUBE - BREATHER From: GT000001	-	1	Enquire
3L010A	LR061614	PLUG - DRAIN	LR061614 PLUG - DRAIN Drain Plug / From: GT000001	-	1	Enquire
3L010B	LR076677	PLUG - FILLER	LR076677 PLUG - FILLER Filler Plug / From: GT000001	-	1	Enquire
4A052	LR051347	KIT - OIL SEALS	LR051347 KIT - OIL SEALS Includes Seals For Haldex Coupling, Pump And Overflow Valve / From: GT000001	-	1	Enquire
4B416	LR003144	SEAL	LR003144 SEAL Driveshaft / From: GT000001	-	2	Enquire
4C016	LR073537	CONTROL UNIT - HALDEX	LR073537 CONTROL UNIT - HALDEX For Haldex, Kit - Includes Fixings / From: GT000001	-	1	Enquire
4C019	LR051321	PUMP - HALDEX	LR051321 PUMP - HALDEX Kit - Includes Fixings / From: GT000001	-	1	Enquire
4K007	LR051311	BRACKET - DIFFERENTIAL	LR051311 BRACKET - DIFFERENTIAL From: GT000001	-	1	Enquire
7H457	LR031697	FLANGE - DIFFERENTIAL	LR031697 FLANGE - DIFFERENTIAL From: GT000001	-	1	Enquire
1177A	LR076676	RING - SEALING	LR076676 RING - SEALING For Haldex, Includes Seal, Nut, Please Refer To TOPIX Bulletin LTB00825v3 Before Ordering / From: GT000001	-	1	Enquire
1177B	LR003148	RING - SEALING	LR003148 RING - SEALING For Differential Flange / From: GT000001	-	1	Enquire
4200	LR072726	DIFFERENTIAL AND CARRIER	LR072726 DIFFERENTIAL AND CARRIER From: GT000001	-	1	Enquire
4753	LR051312	PIPE - CONNECTING	LR051312 PIPE - CONNECTING Breather Pipe / From: GT000001	-	1	Enquire
4782	LR073538	COUPLING - DRIVE SHAFT	LR073538 COUPLING - DRIVE SHAFT Haldex Coupling, Please Refer To TOPIX Bulletin LTB00825v3 Before Ordering / From: GT000001	-	1	Enquire
4865	LR101752	FLANGE - COUPLING SHAFT	LR101752 FLANGE - COUPLING SHAFT From: GT000001	-	1	Enquire
6019	LR051320	COVER - OIL RESERVOIR	LR051320 COVER - OIL RESERVOIR Oil Pan / From: GT000001	-	1	Enquire
