Name: Turbocharger (2.0L AJ20P4 Petrol E100 PTA, Itatiaia (Brazil)) ((V) FROMLT000001)
Rating: 5.0 (1 reviews)

View All

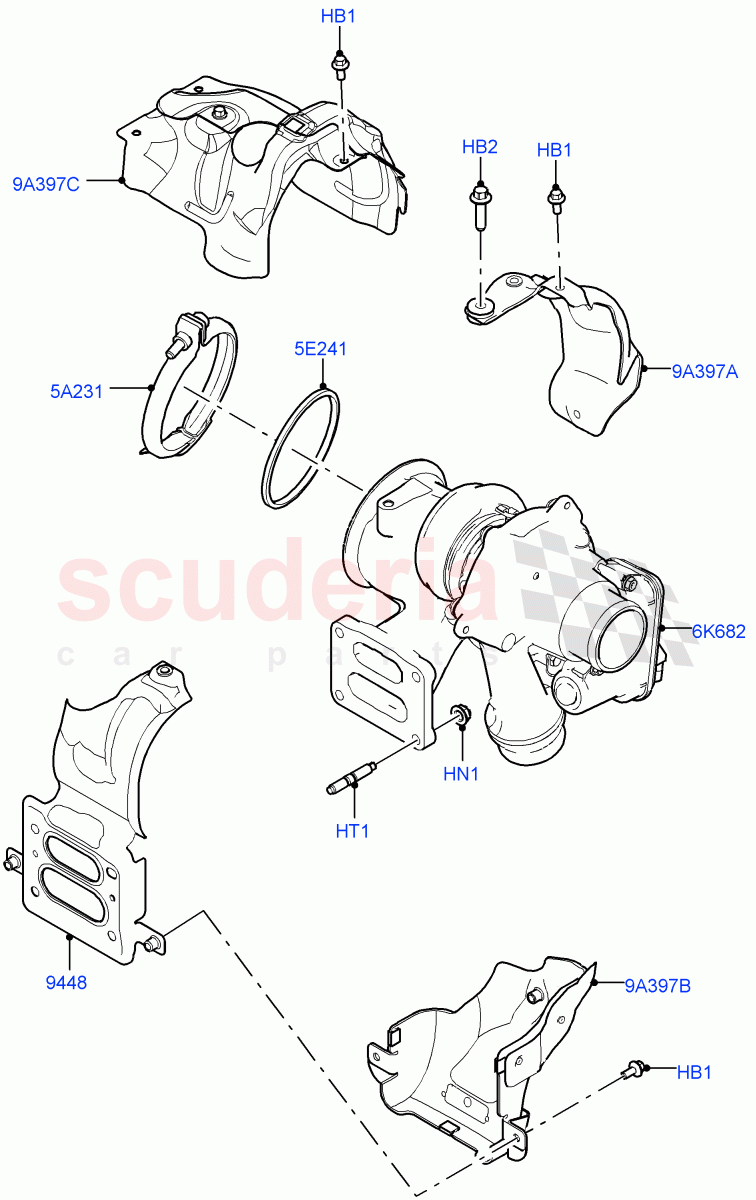

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094452	BOLT - HEX.HEAD	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092112	NUT	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092114	STUD	$3.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094404	GASKET - EXHAUST MANIFOLD	$28.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106799	CLAMP - EXHAUST	$37.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105411	GASKET - TURBOCHARGER	$19.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112021	TURBOCHARGER	$2,440.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107290	HEAT SHIELD - TURBOCHARGER	$25.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094413	HEAT SHIELD - TURBOCHARGER	$32.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094088	HEAT SHIELD - TURBOCHARGER	$50.30	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield / From: LT000001	$2.65	6
HB2	LR094452	BOLT - HEX.HEAD	LR094452 BOLT - HEX.HEAD Hi temp, M8 x 30MM / From: LT000001	$2.36	2
HN1	LR092112	NUT	LR092112 NUT M8, Turbocharger / From: LT000001	$2.07	4
HT1	LR092114	STUD	LR092114 STUD M8 X 17.5 + M8 X 20 / From: LT000001	$3.43	4
5A231	LR106799	CLAMP - EXHAUST	LR106799 CLAMP - EXHAUST From: LT000001	$37.05	1
5E241	LR105411	GASKET - TURBOCHARGER	LR105411 GASKET - TURBOCHARGER From: LT000001	$19.81	1
6K682	LR112021	TURBOCHARGER	LR112021 TURBOCHARGER 2.0L AJ20P4 Petrol E100 PTA / From: LT000001	$2,440.92	1
9A397A	LR107290	HEAT SHIELD - TURBOCHARGER	LR107290 HEAT SHIELD - TURBOCHARGER Top / From: LT000001	$25.34	1
9A397B	LR094413	HEAT SHIELD - TURBOCHARGER	LR094413 HEAT SHIELD - TURBOCHARGER Lower / From: LT000001	$32.28	1
9A397C	LR094088	HEAT SHIELD - TURBOCHARGER	LR094088 HEAT SHIELD - TURBOCHARGER EXHAUST SIDE, Top / From: LT000001	$50.30	1
9448	LR094404	GASKET - EXHAUST MANIFOLD	LR094404 GASKET - EXHAUST MANIFOLD With Heatshield / From: LT000001	$28.77	1

Turbocharger (2.0L Aj20P4 Petrol E100 Pta, Itatiaia (Brazil)) ((V) Fromlt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]
