Turbocharger (Lubrication And Cooling) (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol Mid PTA) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Turbocharger (Lubrication And Cooling) (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4...

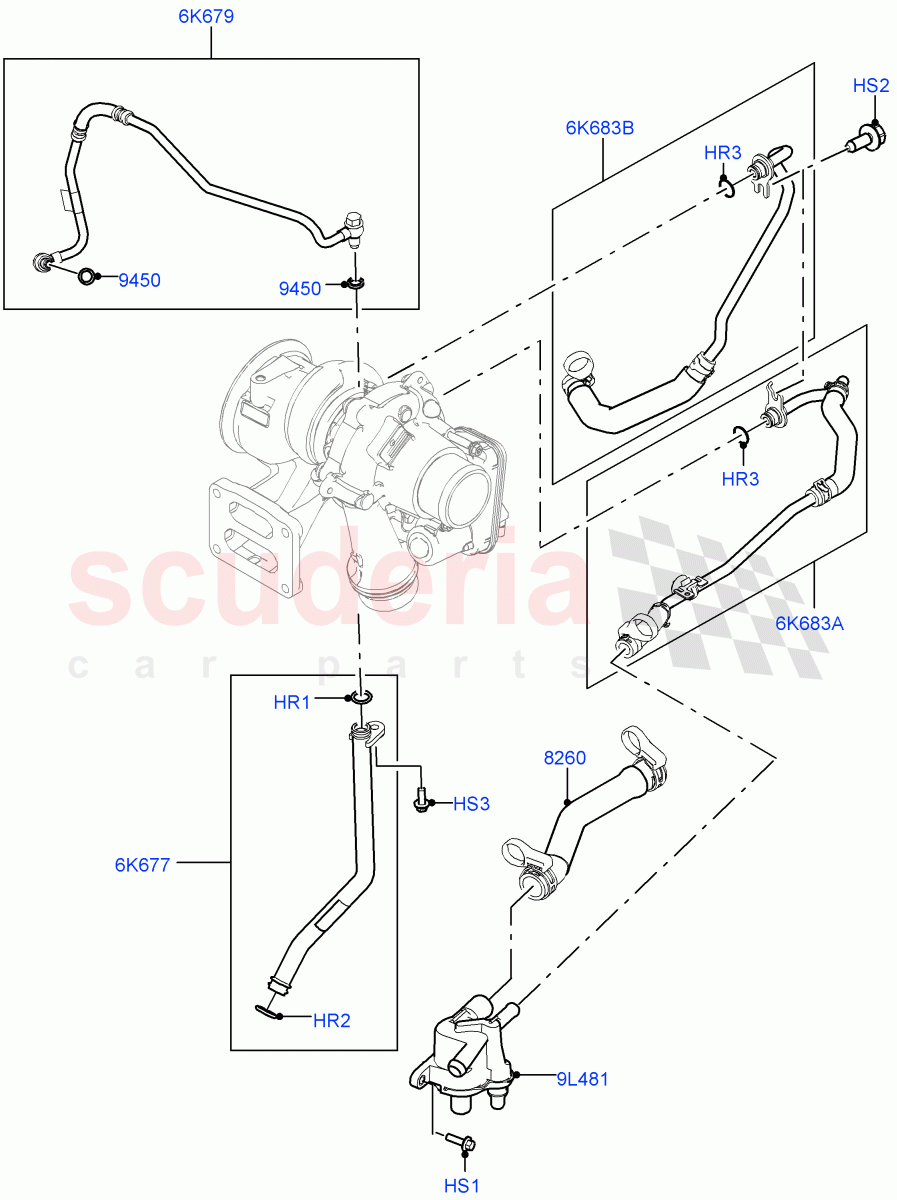

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR136779	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123818	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122683	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094426	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098033	PIPE - OIL DRAIN	Enquire	To Order
	LR094437	HOSE - OIL RETURN	Enquire	To Order
	LR159866	PIPE - OIL DRAIN	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR118385	PIPE - OIL FEED	Enquire	To Order
	LR159869	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093489	SEPARATOR - COOLANT DEGAS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094406	HOSE - INTERCOOLER	Enquire	To Order
	LR161887	CONNECTION - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094410	HOSE - COOLING SYSTEM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR136779	RING - SEALING	LR136779 RING - SEALING 13.8 x 2.5, Drain, Upper / From: LH000001	-	1	Enquire
HR2	LR073688	O-RING	LR073688 O-RING 15 X 3MM, Drain, Lower / From: LH000001	-	1	Enquire
HR3	LR123818	O-RING	LR123818 O-RING Cooling For Turbocharger,	-	2	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: LH000001	-	2	Enquire
HS2	LR122683	SCREW	LR122683 SCREW M6 X 16MM / From: LH000001	-	1	Enquire
HS3	LR073686	SCREW	LR073686 SCREW M6 X 16MM / From: LH000001	-	1	Enquire
6K677	LR098033	PIPE - OIL DRAIN	LR098033 PIPE - OIL DRAIN 2.0L AJ20P4 Petrol High PTA / From: LH000001 / To: MH898614	-	1	Enquire
6K677	LR094437	HOSE - OIL RETURN	LR094437 HOSE - OIL RETURN 2.0L AJ20P4 Petrol Mid PTA / From: LH000001 / To: MH898614	-	1	Enquire
6K677	LR159866	PIPE - OIL DRAIN	LR159866 PIPE - OIL DRAIN 2.0L AJ20P4 Petrol High PTA / From: MH898615	-	1	Enquire
6K677	LR159867	HOSE - OIL RETURN	LR159867 HOSE - OIL RETURN 2.0L AJ20P4 Petrol Mid PTA / From: MH898615	-	1	Enquire
6K679	LR118385	PIPE - OIL FEED	LR118385 PIPE - OIL FEED From: LH000001 / To: MH898641	-	1	Enquire
6K679	LR159869	PIPE - OIL FEED	LR159869 PIPE - OIL FEED From: MH898642	-	1	Enquire
6K683A	LR094406	HOSE - INTERCOOLER	LR094406 HOSE - INTERCOOLER Cooling For Turbocharger, Feed / From: LH000001 / To: MH899476	-	1	Enquire
6K683A	LR161887	CONNECTION - WATER	LR161887 CONNECTION - WATER Cooling For Turbocharger, Feed / From: MH899477	-	1	Enquire
6K683B	LR094410	HOSE - COOLING SYSTEM	LR094410 HOSE - COOLING SYSTEM Cooling For Turbocharger, Return / From: LH000001	-	1	Enquire
9L481	LR093489	SEPARATOR - COOLANT DEGAS	LR093489 SEPARATOR - COOLANT DEGAS From: LH000001	-	1	Enquire
8260	LR094426	HOSE - WATER	LR094426 HOSE - WATER Tube Water By-Pass / From: LH000001	-	1	Enquire
9450	LR073671	WASHER - COPPER	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt, Turbocharger Oil Feed / From: LH000001	-	4	Enquire
