Splash And Heat Shields (Body, Rear Section) (Changsu (China)) ((V) Fromkg446857)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Splash And Heat Shields (Body, Rear Section) (Changsu (China)) ((V) FROMKG446857)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000059 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR019197 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR127388 SHIELD - REAR FLOOR PAN Enquire To Order
LR139123 SHIELD - REAR FLOOR PAN Enquire To Order
Photo Part No Description Price (each) Stock
LR127778 SHIELD - SPLASH Enquire To Order
Photo Part No Description Price (each) Stock
LR062432 BRACKET - HEATSHIELD Enquire To Order
LR062434 BRACKET - HEATSHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR127389 SHIELD - FLOOR Enquire To Order
LR139514 SHIELD - FLOOR Enquire To Order
LR146845 SHIELD - FLOOR Enquire To Order
Photo Part No Description Price (each) Stock
LR127723 SHIELD - REAR FLOOR PAN Enquire To Order
LR127724 SHIELD - REAR FLOOR PAN Enquire To Order
Photo Part No Description Price (each) Stock
LR062450 BRACKET - HEATSHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR134540 BRACKET - HEATSHIELD Enquire To Order
LR139920 BRACKET - HEATSHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR140613 INSULATOR - AIR VENT Enquire To Order
LR140614 INSULATOR - AIR VENT Enquire To Order
LR166058 INSULATOR - AIR VENT Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

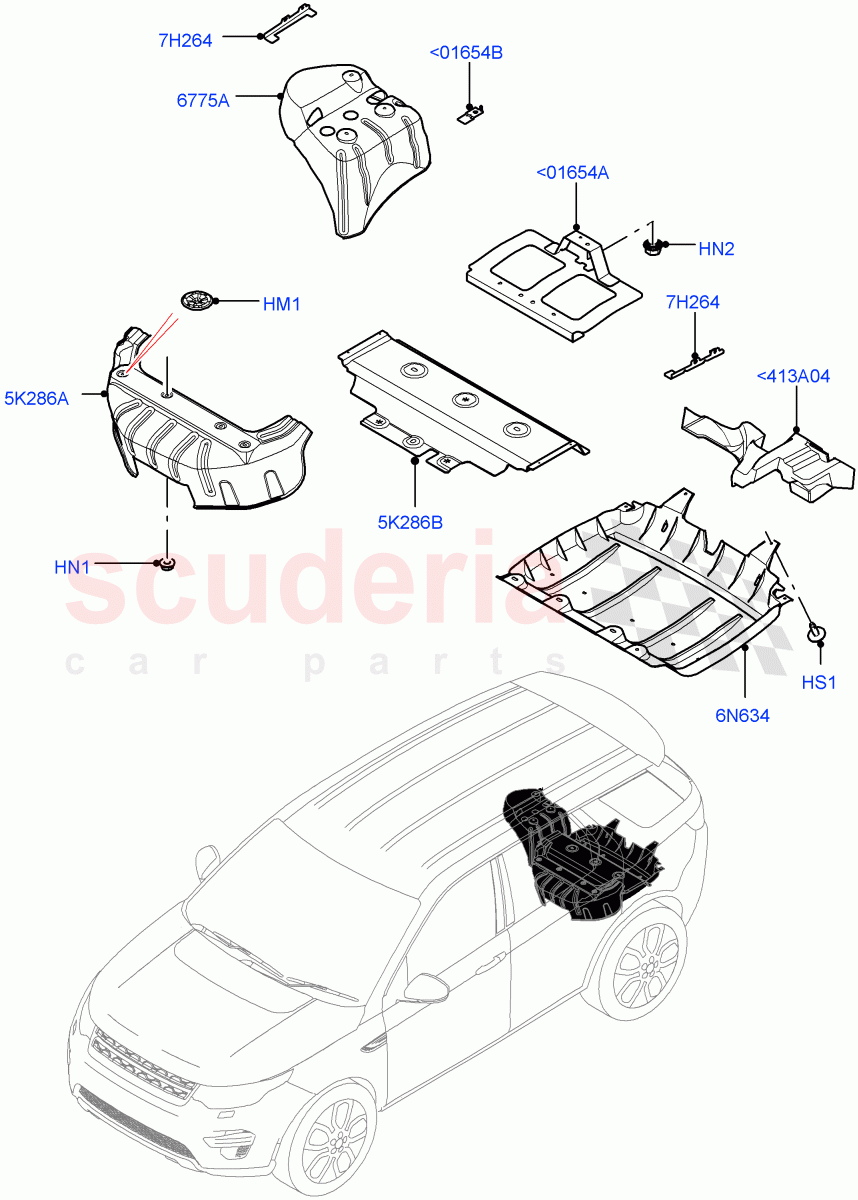

Splash And Heat Shields (Body, Rear Section) (Changsu (China)) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<413A04 LR140613
INSULATOR - AIR VENT
1.5L AJ20P3 Petrol High PHEV / RH / From: LG000001 / To: MG146622 		- 1 Enquire
<413A04 LR140614
INSULATOR - AIR VENT
1.5L AJ20P3 Petrol High PHEV / LH / From: LG000001 / To: MG146622 		- 1 Enquire
<413A04 LR166058
INSULATOR - AIR VENT
1.5L AJ20P3 Petrol High PHEV / RH / From: MG146623 		- 1 Enquire
<413A04 LR166057
INSULATOR - AIR VENT
1.5L AJ20P3 Petrol High PHEV / LH / From: MG146623 		- 1 Enquire
<01654A LR062450
BRACKET - HEATSHIELD
Instant Mobility System - High / From: KG446857 		- 1 Enquire
<01654B LR134540
BRACKET - HEATSHIELD
2.0L AJ20P4 Petrol High PTA, Spare Wheel - Reduced Section Steel / From: KG446857 / To: LG105709 		- 1 Enquire
<01654B LR139920
BRACKET - HEATSHIELD
2.0L AJ20P4 Petrol Mid PTA, Spare Wheel - Reduced Section Steel / From: LG105709 		- 1 Enquire
HM1 LR000059
CLIP
3.5MM / From: KG446857 		- 2 Enquire
HN1 LR003643
NUT - SPECIAL
M5 / From: KG446857 		- 4 Enquire
HN2 LR019197
NUT - FLANGED
Instant Mobility System - High / Domed Type, M8 / From: KG446857 		- 2 Enquire
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex, Middle - Rear, Undertray / From: KG446857 		- 4 Enquire
5K286A LR127389
SHIELD - FLOOR
Spare Wheel - Reduced Section Steel, With 3rd Row Double Seat / From: KG446857 / To: LG111613 		- 1 Enquire
5K286A LR139514
SHIELD - FLOOR
Spare Wheel - Reduced Section Steel, With 3rd Row Double Seat / From: LG111614 / To: MG140012 		- 1 Enquire
5K286A LR146845
SHIELD - FLOOR
Spare Wheel - Reduced Section Steel, With 3rd Row Double Seat / From: MG140013 		- 1 Enquire
5K286B LR127723
SHIELD - REAR FLOOR PAN
Tow Hitch Receiver 12 Pin Elec / From: KG446857 		- 1 Enquire
5K286B LR127724
SHIELD - REAR FLOOR PAN
Less Trailer Towing Hitch / From: KG446857 		- 1 Enquire
6N634 LR127778
SHIELD - SPLASH
With 3rd Row Double Seat / Middle - Rear / From: KG446857 		- 1 Enquire
7H264 LR062432
BRACKET - HEATSHIELD
Less Emission Tank / RH / From: KG446857 		- 1 Enquire
7H264 LR062434
BRACKET - HEATSHIELD
LH / From: KG446857 		- 1 Enquire
6775A LR127388
SHIELD - REAR FLOOR PAN
2.0L AJ20P4 Petrol High PTA, Spare Wheel - Reduced Section Steel / RH / From: KG446857 		- 1 Enquire
6775A LR139123
SHIELD - REAR FLOOR PAN
2.0L AJ20P4 Petrol Mid PTA, Less Trailer Towing Hitch, Spare Wheel - Reduced Section Steel, With 3rd Row Double Seat / LH / From: KG446857 		- 1 Enquire
