Front Panels, Aprons & Side Members (Wheelhouse) (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Front Panels, Aprons & Side Members (Wheelhouse) (Changsu (China)) ((V) FROMFG000001)

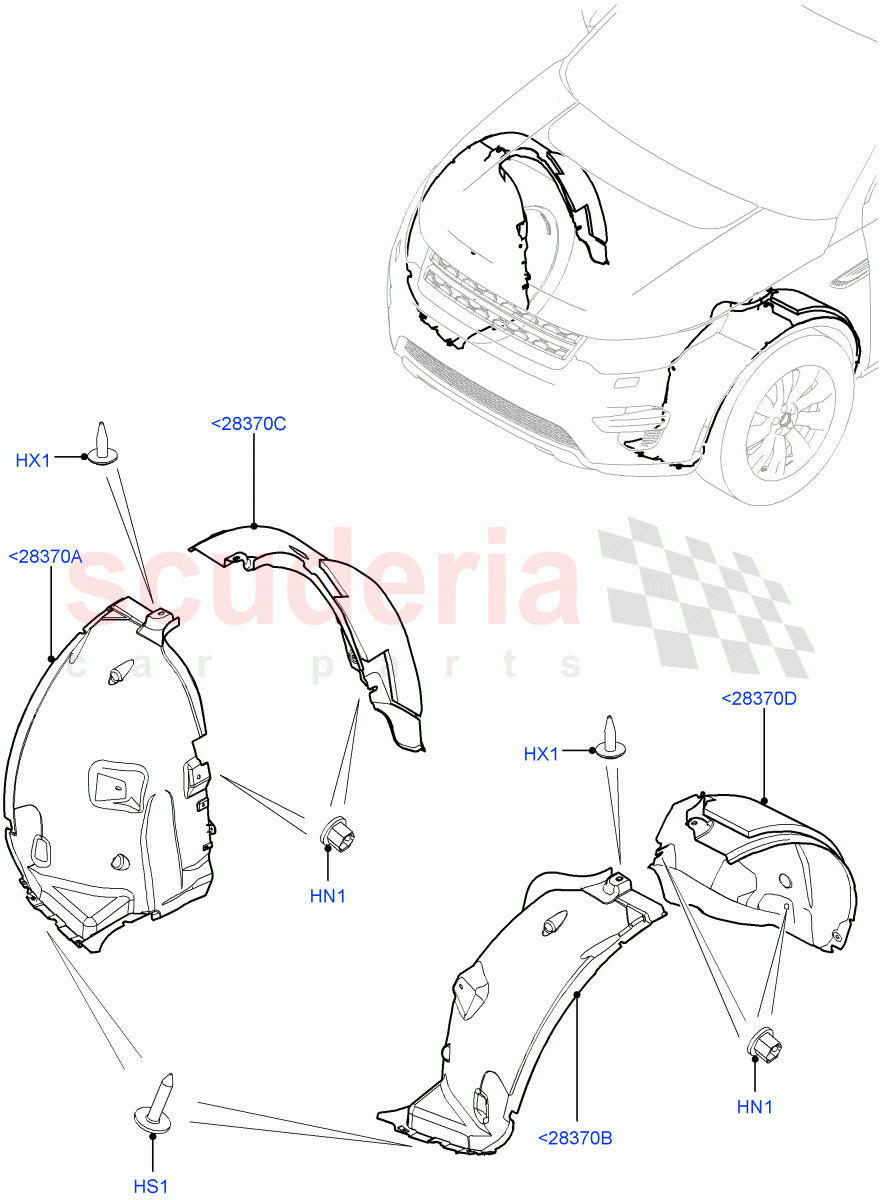

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYH500780	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP100791	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073058	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR070414	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR127161	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073060	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR127164	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074800	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR127157	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR137667	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR073062	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR127159	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR137668	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<28370A	LR073058	SHIELD - SPLASH - WHEELHOUSE	LR073058 SHIELD - SPLASH - WHEELHOUSE RH, Front / From: FG000001 / To: HG347883	-	1	Enquire
<28370A	LR070414	SHIELD - SPLASH - WHEELHOUSE	LR070414 SHIELD - SPLASH - WHEELHOUSE RH, Front / From: HG347884 / To: KG446856	-	1	Enquire
<28370A	LR127161	SHIELD - SPLASH - WHEELHOUSE	LR127161 SHIELD - SPLASH - WHEELHOUSE 1.5L AJ20P3 Petrol High / RH, Front / From: KG446857	-	1	Enquire
<28370B	LR073060	SHIELD - SPLASH - WHEELHOUSE	LR073060 SHIELD - SPLASH - WHEELHOUSE LH, Front / From: FG000001 / To: KG446856	-	1	Enquire
<28370B	LR127164	SHIELD - SPLASH - WHEELHOUSE	LR127164 SHIELD - SPLASH - WHEELHOUSE 2.0L AJ20P4 Petrol Mid PTA / LH, Front / From: KG446857	-	1	Enquire
<28370C	LR074800	SHIELD - SPLASH - WHEELHOUSE	LR074800 SHIELD - SPLASH - WHEELHOUSE RH, Rear / From: FG000001 / To: KG446856	-	1	Enquire
<28370C	LR127157	SHIELD - SPLASH - WHEELHOUSE	LR127157 SHIELD - SPLASH - WHEELHOUSE RH, Rear / From: KG446857 / To: KG449856	-	1	Enquire
<28370C	LR137667	SHIELD - SPLASH - WHEELHOUSE	LR137667 SHIELD - SPLASH - WHEELHOUSE RH, Rear / From: KG449857 / To: MG140568	-	1	Enquire
<28370C	LR140043	SHIELD - SPLASH - WHEELHOUSE	LR140043 SHIELD - SPLASH - WHEELHOUSE RH, Rear / From: MG140569 / To: MG140699	-	1	Enquire
<28370C	LR167097	SHIELD - SPLASH - WHEELHOUSE	LR167097 SHIELD - SPLASH - WHEELHOUSE RH, Rear / From: MG140700	-	1	Enquire
<28370D	LR073062	SHIELD - SPLASH - WHEELHOUSE	LR073062 SHIELD - SPLASH - WHEELHOUSE LH, Rear / From: FG000001 / To: KG446856	-	1	Enquire
<28370D	LR127159	SHIELD - SPLASH - WHEELHOUSE	LR127159 SHIELD - SPLASH - WHEELHOUSE LH, Rear / From: KG446857 / To: KG449856	-	1	Enquire
<28370D	LR137668	SHIELD - SPLASH - WHEELHOUSE	LR137668 SHIELD - SPLASH - WHEELHOUSE LH, Rear / From: KG449857	-	1	Enquire
HN1	RYH500780	NUT - HEX.	RYH500780 NUT - HEX. M6, Plastic Nut / From: FG000001	-	6	Enquire
HS1	CYP100791	SCREW	CYP100791 SCREW M5, Rear Bumper / From: FG000001	-	4	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin / From: FG000001	-	12	Enquire
