Name: Front Exhaust System (2.0L AJ21D4 Diesel Mid, J-WLTP Emission, Halewood (UK), EU6D - Final (Diesel) Emission, Bharat VI Emission, L7 Emission - Brazil) ((V) FROMMH000001)
Rating: 4.7 (1 reviews)

Front Exhaust System (2.0L AJ21D4 Diesel Mid, J-WLTP Emission, Halewood (UK), EU6D - Final (Diesel) Emission, Bharat VI Emission, L7 Emission - Brazil) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Front Exhaust System (2.0L AJ21D4 Diesel Mid, J-WLTP Emission, Halewood (UK), EU6D - Final (Diesel)...

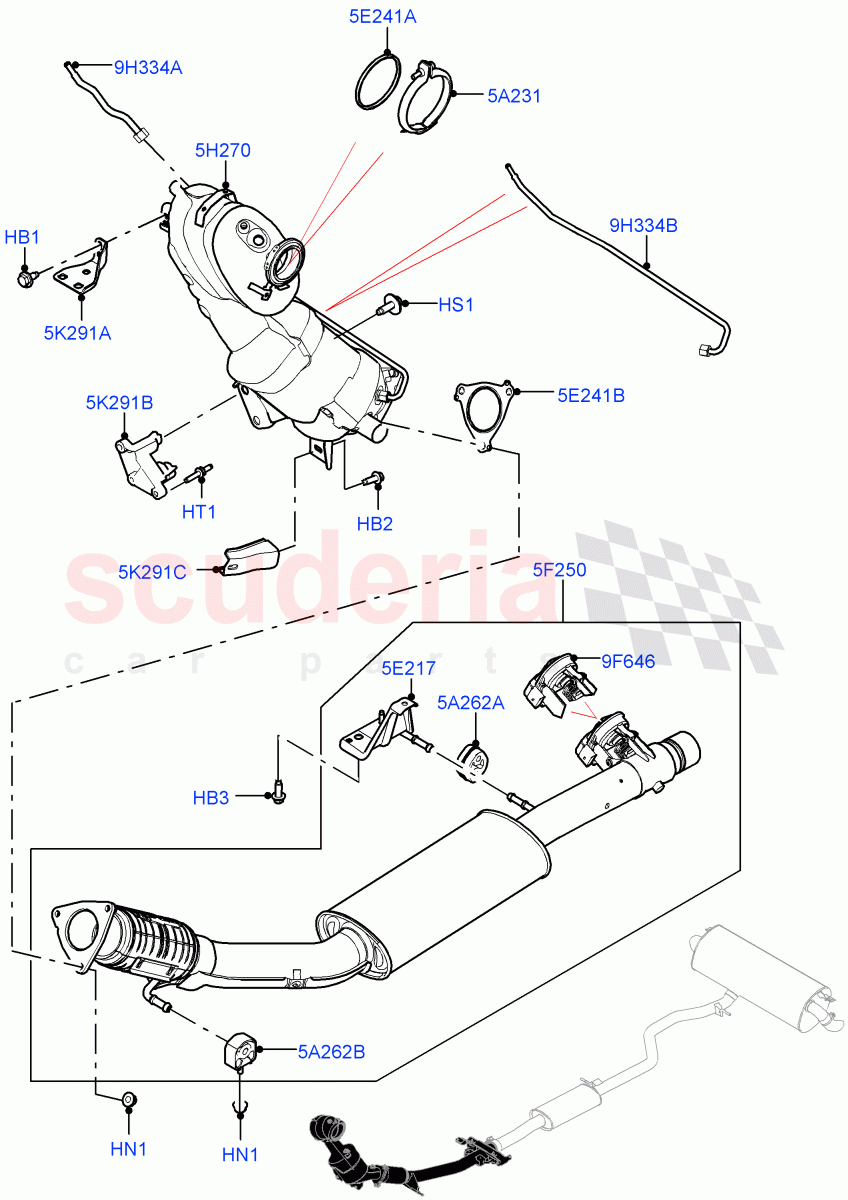

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008026	BOLT	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	$1.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	PYG500050	SCREW	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023448	STUD	$4.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139767	CLAMP - EXHAUST	$17.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144867	BRACKET - EXHAUST PIPE MOUNTING	$44.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139765	CATALYST - EXHAUST	$1,682.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139755	FILTER - DIESEL PARTICLE	$2,190.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159166	ACTUATOR - ELECTRONIC EXHAUST VALVE	$256.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100224	INSULATOR - RUBBER	$31.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125286	GASKET - EXHAUST PIPE	$28.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139746	GASKET - EXHAUST PIPE	$16.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139760	BRACKET - EXHAUST PIPE MOUNTING	$20.04	To Order
	LR159155	BRACKET - EXHAUST PIPE MOUNTING	$20.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114108	BRACKET - EXHAUST PIPE MOUNTING	$46.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114109	BRACKET - EXHAUST PIPE MOUNTING	$30.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150741	PIPE - EXHAUST PRESSURE	$48.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150744	TUBE - EXHAUST PRESSURE	$49.85	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR008026	BOLT IN STOCK	LR008026 BOLT Bolt And Washer, Bracket, M8 X 17MM, Upper / From: MH000001 IN STOCK	$1.12	1
HB2	RYG500230	BOLT - HEX.HEAD IN STOCK	RYG500230 BOLT - HEX.HEAD Bracket, Hexagonal Head, Lower, M8 X 20MM / From: MH000001 IN STOCK	$1.36	2
HB3	RYG500440	BOLT	RYG500440 BOLT Bracket To BIW, Hexagonal Head, M8 X 20MM / From: MH000001	$0.99	2
HN1	FX108046	NUT - LOCKING IN STOCK	FX108046 NUT - LOCKING M8 / From: MH000001 IN STOCK	$0.41	4
HS1	PYG500050	SCREW	PYG500050 SCREW Bracket, Centre, M8 X 20MM / From: MH000001	$1.01	2
HT1	LR023448	STUD	LR023448 STUD M8 X 30 + M8 X 16MM, To Engine / From: MH000001	$4.82	3
5A231	LR139767	CLAMP - EXHAUST	LR139767 CLAMP - EXHAUST Turbocharger Outlet / From: MH000001	$17.19	1
5A262A	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER RH Rear / From: MH000001	$11.29	1
5A262B	LR100224	INSULATOR - RUBBER	LR100224 INSULATOR - RUBBER Front / From: MH000001	$31.44	1
5E217	LR144867	BRACKET - EXHAUST PIPE MOUNTING	LR144867 BRACKET - EXHAUST PIPE MOUNTING Rear RH / From: MH000001	$44.34	1
5E241A	LR125286	GASKET - EXHAUST PIPE	LR125286 GASKET - EXHAUST PIPE Turbocharger Outlet / From: MH000001	$28.70	1
5E241B	LR139746	GASKET - EXHAUST PIPE	LR139746 GASKET - EXHAUST PIPE Catalyst, Outlet / From: MH000001	$16.15	1
5F250	LR139765	CATALYST - EXHAUST	LR139765 CATALYST - EXHAUST From: MH000001	$1,682.84	1
5H270	LR139755	FILTER - DIESEL PARTICLE	LR139755 FILTER - DIESEL PARTICLE From: MH000001	$2,190.06	1
5K291A	LR139760	BRACKET - EXHAUST PIPE MOUNTING	LR139760 BRACKET - EXHAUST PIPE MOUNTING Upper / From: MH000001 / To: MH897750	$20.04	1
5K291A	LR159155	BRACKET - EXHAUST PIPE MOUNTING	LR159155 BRACKET - EXHAUST PIPE MOUNTING Upper / From: MH897751	$20.04	1
5K291B	LR114108	BRACKET - EXHAUST PIPE MOUNTING	LR114108 BRACKET - EXHAUST PIPE MOUNTING Centre / From: MH000001	$46.15	1
5K291C	LR114109	BRACKET - EXHAUST PIPE MOUNTING	LR114109 BRACKET - EXHAUST PIPE MOUNTING Lower / From: MH000001	$30.92	1
9F646	LR159166	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR159166 ACTUATOR - ELECTRONIC EXHAUST VALVE From: MH000001	$256.59	1
9H334A	LR150741	PIPE - EXHAUST PRESSURE	LR150741 PIPE - EXHAUST PRESSURE Front, Pressure / From: MH000001	$48.29	1
9H334B	LR150744	TUBE - EXHAUST PRESSURE	LR150744 TUBE - EXHAUST PRESSURE Pressure, Rear / From: MH000001	$49.85	1
