Front Exhaust System (2.0L AJ21D4 Diesel Mid, Stage V Plus DPF, Halewood (UK), Proconve L6 Emissions) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Front Exhaust System (2.0L AJ21D4 Diesel Mid, Stage V Plus DPF, Halewood (UK), Proconve L6...

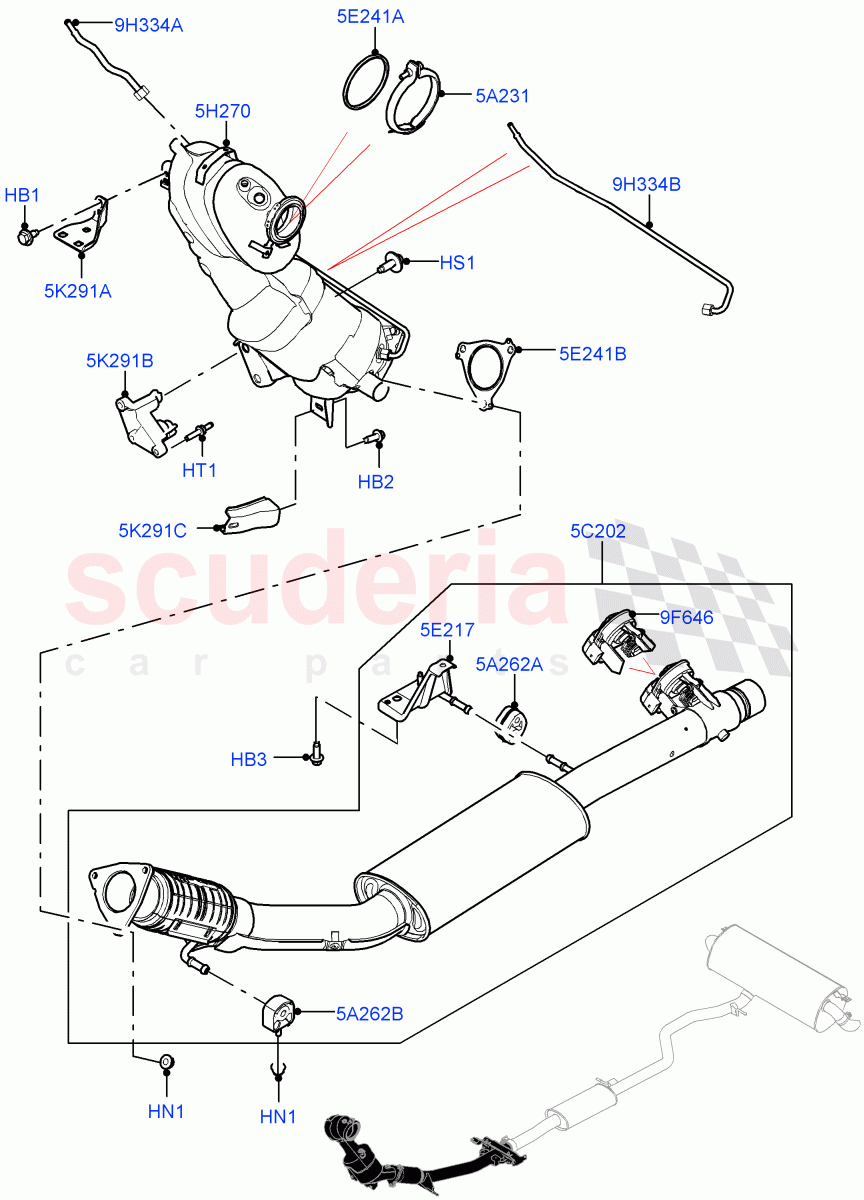

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008026	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYG500050	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023448	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139767	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139737	PIPE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144867	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139757	FILTER - DIESEL PARTICLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159166	ACTUATOR - ELECTRONIC EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100224	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125286	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139746	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139760	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR159155	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114108	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114109	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150741	PIPE - EXHAUST PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150744	TUBE - EXHAUST PRESSURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR008026	BOLT	LR008026 BOLT Bolt And Washer, Bracket, M8 X 17MM, Upper / From: MH000001	-	1	Enquire
HB2	RYG500230	BOLT - HEX.HEAD	RYG500230 BOLT - HEX.HEAD Bracket, Hexagonal Head, Lower, M8 X 20MM / From: MH000001	-	2	Enquire
HB3	RYG500440	BOLT	RYG500440 BOLT Bracket To BIW, Hexagonal Head, M8 X 20MM / From: MH000001	-	2	Enquire
HN1	FX108046	NUT - LOCKING	FX108046 NUT - LOCKING M8 / From: MH000001	-	4	Enquire
HS1	PYG500050	SCREW	PYG500050 SCREW Bracket, Centre, M8 X 20MM / From: MH000001	-	2	Enquire
HT1	LR023448	STUD	LR023448 STUD M8 X 30 + M8 X 16MM, To Engine / From: MH000001	-	3	Enquire
5A231	LR139767	CLAMP - EXHAUST	LR139767 CLAMP - EXHAUST Turbocharger Outlet / From: MH000001	-	1	Enquire
5A262A	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER RH Rear / From: MH000001	-	1	Enquire
5A262B	LR100224	INSULATOR - RUBBER	LR100224 INSULATOR - RUBBER Front / From: MH000001	-	1	Enquire
5C202	LR139737	PIPE - EXHAUST	LR139737 PIPE - EXHAUST From: MH000001	-	1	Enquire
5E217	LR144867	BRACKET - EXHAUST PIPE MOUNTING	LR144867 BRACKET - EXHAUST PIPE MOUNTING Rear RH / From: MH000001	-	1	Enquire
5E241A	LR125286	GASKET - EXHAUST PIPE	LR125286 GASKET - EXHAUST PIPE Turbocharger Outlet / From: MH000001	-	1	Enquire
5E241B	LR139746	GASKET - EXHAUST PIPE	LR139746 GASKET - EXHAUST PIPE Catalyst, Outlet / From: MH000001	-	1	Enquire
5H270	LR139757	FILTER - DIESEL PARTICLE	LR139757 FILTER - DIESEL PARTICLE From: MH000001	-	1	Enquire
5K291A	LR139760	BRACKET - EXHAUST PIPE MOUNTING	LR139760 BRACKET - EXHAUST PIPE MOUNTING Upper / From: MH000001 / To: MH897750	-	1	Enquire
5K291A	LR159155	BRACKET - EXHAUST PIPE MOUNTING	LR159155 BRACKET - EXHAUST PIPE MOUNTING Upper / From: MH897751	-	1	Enquire
5K291B	LR114108	BRACKET - EXHAUST PIPE MOUNTING	LR114108 BRACKET - EXHAUST PIPE MOUNTING Centre / From: MH000001	-	1	Enquire
5K291C	LR114109	BRACKET - EXHAUST PIPE MOUNTING	LR114109 BRACKET - EXHAUST PIPE MOUNTING Lower / From: MH000001	-	1	Enquire
9F646	LR159166	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR159166 ACTUATOR - ELECTRONIC EXHAUST VALVE From: MH000001	-	1	Enquire
9H334A	LR150741	PIPE - EXHAUST PRESSURE	LR150741 PIPE - EXHAUST PRESSURE Front, Pressure / From: MH000001	-	1	Enquire
9H334B	LR150744	TUBE - EXHAUST PRESSURE	LR150744 TUBE - EXHAUST PRESSURE Pressure, Rear / From: MH000001	-	1	Enquire
