Fuel Filter (2.0L Aj20D4 Diesel Mid Pta, Itatiaia (Brazil), Fuel Tank-Diesel With Filters) ((V)...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Fuel Filter (2.0L AJ20D4 Diesel Mid PTA, Itatiaia (Brazil), Fuel Tank-Diesel With Filters) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR051520 CLIP - SINGLE Enquire To Order
Photo Part No Description Price (each) Stock
LR049401 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR105597 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR019197 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR043873 SCREW - PAN - TORX Enquire To Order
Photo Part No Description Price (each) Stock
LR082730 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR084092 TUBE - FUEL FILTER TO FUEL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR155579 FILTER - FUEL - PRIMARY Enquire To Order
Photo Part No Description Price (each) Stock
LR137039 BRACKET - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR084123 TUBE - FUEL FEED Enquire To Order
Photo Part No Description Price (each) Stock
LR079995 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR110242 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR154224 FUEL PUMP AND FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR095802 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR139135 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR084122 TUBE - FUEL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
LR089534 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR095803 KIT - FUEL INLET/OUTLET Enquire To Order
View All

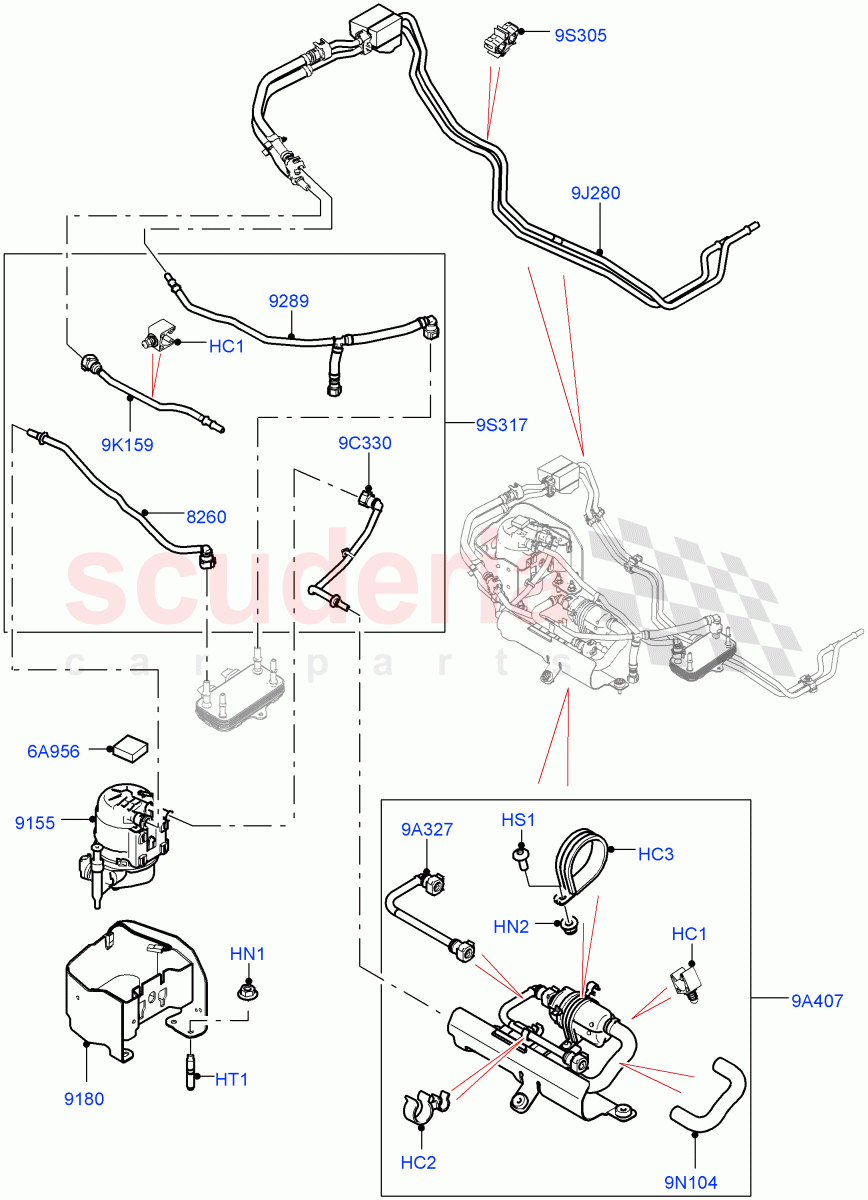

Fuel Filter (2.0L AJ20D4 Diesel Mid PTA, Itatiaia (Brazil), Fuel Tank-Diesel With Filters) ((V) FROMLT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR051520
CLIP - SINGLE
For Fuel Tube / From: LT000001 		- 2 Enquire
HC2 LR049401
CLIP - DOUBLE
Double / From: LT000001 		- 1 Enquire
HC3 LR105597
CLIP
For Fuel Filter / From: LT000001 		- 1 Enquire
HN1 LR019197
NUT - FLANGED
Domed Type, M8 / From: LT000001 		- 3 Enquire
HN2 FY106046
NUT - HEX.
Hexagonal Head, M6 / From: LT000001 		- 3 Enquire
HS1 LR043873
SCREW - PAN - TORX
M6 X 16MM, Torx / From: LT000001 		- 3 Enquire
HT1 LR082730
STUD
M8 X 21.5MM + M8 X 22MM / From: LT000001 		- 3 Enquire
6A956 LR079995
FOAM PAD - ENERGY ABSORBING
From: LT000001 		- 1 Enquire
9A327 LR110242
TUBE - FUEL FILTER TO FUEL PUMP
From Auxiliary Fuel Filter To High Pressure Fuel Pump / From: LT000001 		- 1 Enquire
9A407 LR154224
FUEL PUMP AND FILTER
From: LT000001 		- 1 Enquire
9C330 LR095802
TUBE - FUEL FILTER TO FUEL PUMP
From Fuel Filter To Auxiliary Fuel Pump / From: LT000001 		- 1 Enquire
9J280 LR139135
PIPE - FUEL
Fuel Supply And Fuel Return / From: LT000001 		- 1 Enquire
9K159 LR084122
TUBE - FUEL RETURN
From High Pressure Fuel Pump To Fuel Tank, Middle / From: LT000001 		- 1 Enquire
9N104 LR089534
TUBE - FUEL FILTER TO FUEL PUMP
From Auxiliary Fuel Pump To Auxiliary Fuel Filter / From: LT000001 		- 1 Enquire
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) / From: LT000001 		- 3 Enquire
9S317 LR095803
KIT - FUEL INLET/OUTLET
4 Piece Kit / From: LT000001 		- 1 Enquire
8260 LR084092
TUBE - FUEL FILTER TO FUEL COOLER
From Fuel Cooler To Fuel Filter / From: LT000001 		- 1 Enquire
9155 LR155579
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / From: LT000001 		- 1 Enquire
9180 LR137039
BRACKET - FUEL FILTER
With Earthing Cable / From: LT000001 		- 1 Enquire
9289 LR084123
TUBE - FUEL FEED
Fuel Cooler Inlet / From: LT000001 		- 1 Enquire
