Fuel Filter (2.0L Aj20D4 Diesel High Pta, Halewood (Uk), Fuel Tank-Diesel)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Fuel Filter (2.0L AJ20D4 Diesel High PTA, Halewood (UK), Fuel Tank-Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR094259 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR126221 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR019197 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR082730 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR114312 TUBE - FUEL FILTER TO FUEL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR155579 FILTER - FUEL - PRIMARY Enquire To Order
LR155579 FILTER - FUEL - PRIMARY Enquire To Order
Photo Part No Description Price (each) Stock
LR116053 BRACKET - FUEL FILTER Enquire To Order
LR137039 BRACKET - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR114291 TUBE - FUEL FEED Enquire To Order
Photo Part No Description Price (each) Stock
LR079995 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR083488 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR096552 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR115336 PIPE - FUEL Enquire To Order
LR139135 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR095136 TUBE - FUEL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
LR072004 TUBE - FUEL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR071922 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR121075 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR073771 BRACKET - FUEL TUBE SUPPORT Enquire To Order
View All

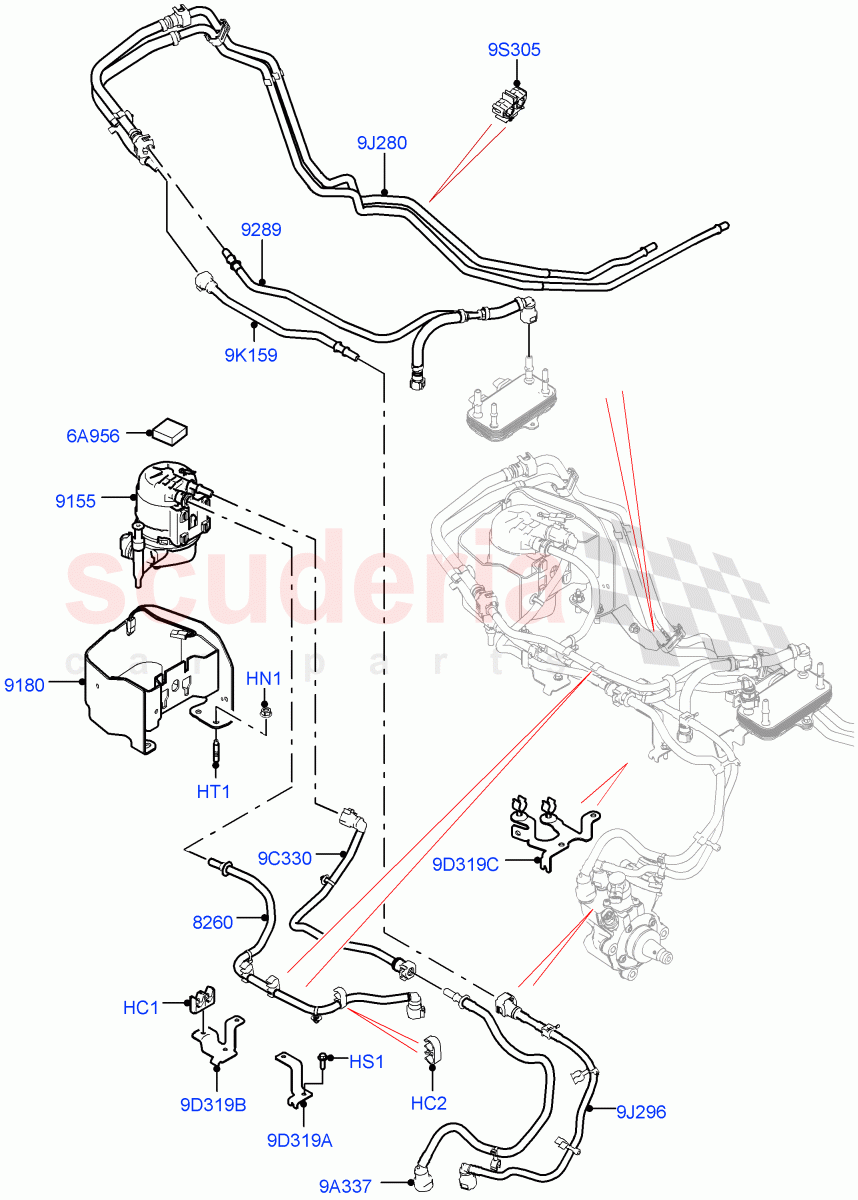

Fuel Filter (2.0L AJ20D4 Diesel High PTA, Halewood (UK), Fuel Tank-Diesel) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR094259
CLIP - HOSE
Clip 8 - 13 X 2 X 0.7 / From: LH000001 		- 1 Enquire
HC2 LR126221
CLIP - DOUBLE
Double / From: LH000001 		- 3 Enquire
HN1 LR019197
NUT - FLANGED
Domed Type, M8 / From: LH000001 		- 3 Enquire
HS1 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: LH000001 		- 2 Enquire
HT1 LR082730
STUD
M8 X 21.5MM + M8 X 22MM / From: LH000001 		- 3 Enquire
6A956 LR079995
FOAM PAD - ENERGY ABSORBING
From: LH000001 		- 1 Enquire
9A337 LR083488
TUBE - FUEL FILTER TO FUEL PUMP
Fuel Filter To High Pressure Pump, Pump Side / From: LH000001 		- 1 Enquire
9C330 LR096552
TUBE - FUEL FILTER TO FUEL PUMP
Fuel Filter To High Pressure Pump, Middle / From: LH000001 		- 1 Enquire
9D319A LR071922
BRACKET - SUPPORT
RH / From: LH000001 		- 1 Enquire
9D319B LR121075
BRACKET - SUPPORT
LH / From: LH000001 		- 1 Enquire
9D319C LR073771
BRACKET - FUEL TUBE SUPPORT
For Fuel Pump, Inlet Pipe / From: LH000001 		- 1 Enquire
9J280 LR115336
PIPE - FUEL
Fuel Supply And Fuel Return / From: LH000001 / To: LH854836 		- 1 Enquire
9J280 LR139135
PIPE - FUEL
Fuel Supply And Fuel Return / From: LH854837 		- 1 Enquire
9J296 LR095136
TUBE - FUEL RETURN
From High Pressure Fuel Pump To Fuel Tank, Pump Side / From: LH000001 		- 1 Enquire
9K159 LR072004
TUBE - FUEL RETURN
From High Pressure Fuel Pump To Fuel Tank, Middle / From: LH000001 		- 1 Enquire
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) / From: LH000001 		- 3 Enquire
8260 LR114312
TUBE - FUEL FILTER TO FUEL COOLER
From Fuel Cooler To Fuel Filter / From: LH000001 		- 1 Enquire
9155 LR155579
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / From: LH000001 / To: MH896338 		- 1 Enquire
9155 LR155579
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / From: MH896339 		- 1 Enquire
9180 LR116053
BRACKET - FUEL FILTER
With Earthing Cable / From: LH000001 / To: LH846505 		- 1 Enquire
9180 LR137039
BRACKET - FUEL FILTER
With Earthing Cable / From: LH846506 		- 1 Enquire
9289 LR114291
TUBE - FUEL FEED
Fuel Cooler Inlet / From: LH000001 		- 1 Enquire
