Name: Rear Exhaust System (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel LF PTA) ((V) FROMLH000001)
Rating: 5.0 (1 reviews)

Rear Exhaust System (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel LF PTA) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Rear Exhaust System (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel High PTA, 2.0L...

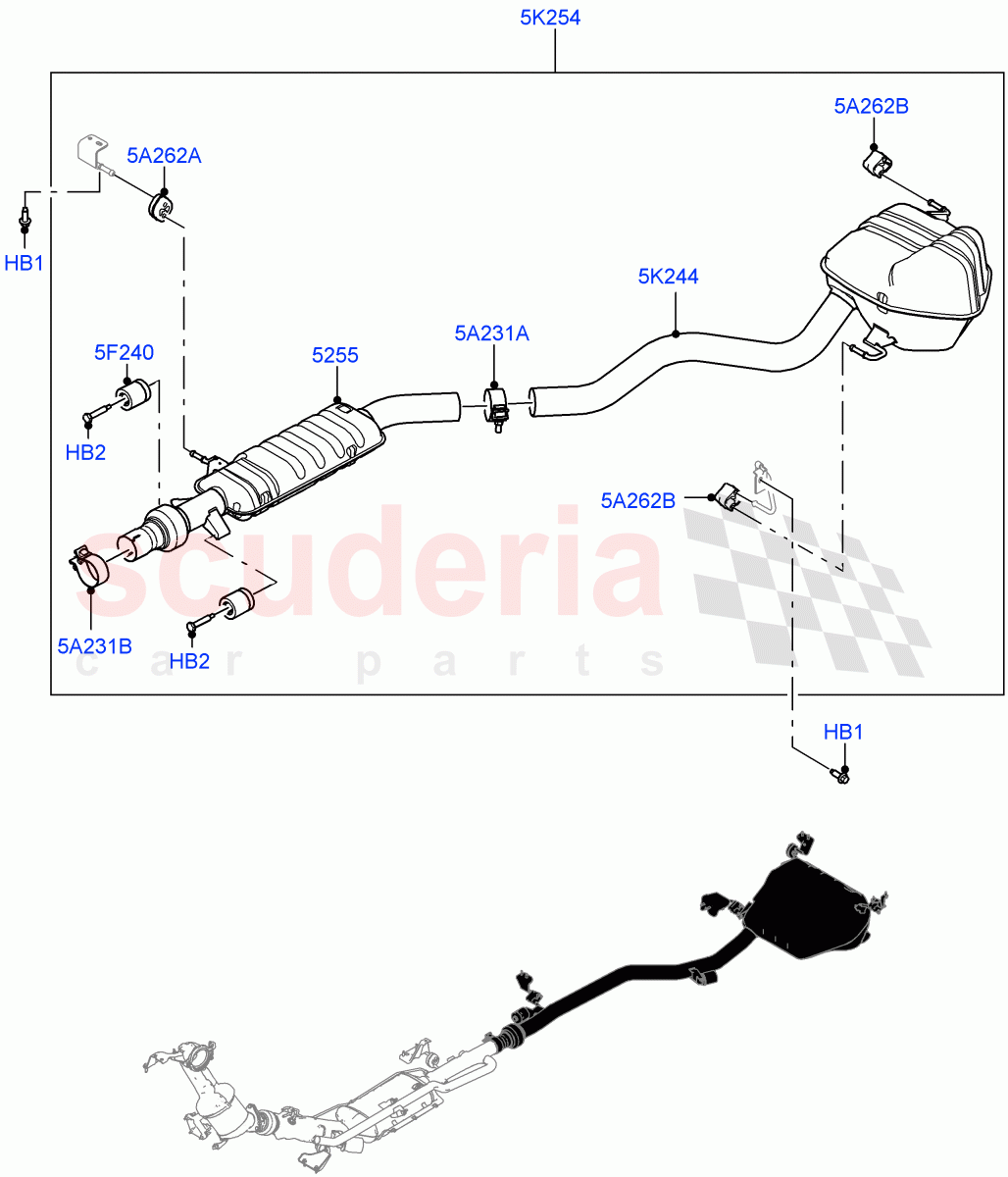

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128659	PIPE - EXHAUST	$569.85	To Order
	LR128630	PIPE - EXHAUST	$587.08	To Order
	LR139170	PIPE - EXHAUST	$455.23	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR148075	DAMPER - EXHAUST SYSTEM	$73.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139819	PIPE - EXHAUST	$809.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126570	MUFFLER - REAR	$1,410.34	To Order
	LR126571	MUFFLER - REAR	$1,480.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128613	CLAMP - EXHAUST	$84.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003178	CLAMP - EXHAUST	$27.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM / From: LH000001	$0.99	3
HB2	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking / From: LH000001	$2.53	2
5A231A	LR128613	CLAMP - EXHAUST	LR128613 CLAMP - EXHAUST 65MM, Rear / From: LH000001	$84.62	1
5A231B	LR003178	CLAMP - EXHAUST	LR003178 CLAMP - EXHAUST 60MM, Front / From: LH000001	$27.57	1
5A262A	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Front / From: LH000001	$11.29	1
5A262B	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER For Rear Muffler / From: LH000001	$23.23	2
5F240	LR148075	DAMPER - EXHAUST SYSTEM	LR148075 DAMPER - EXHAUST SYSTEM RH / From: LH000001	$73.27	1
5K244	LR139819	PIPE - EXHAUST	LR139819 PIPE - EXHAUST From: LH000001	$809.39	1
5K254	LR126570	MUFFLER - REAR	LR126570 MUFFLER - REAR Stage V Plus DPF / From: LH000001	$1,410.34	1
5K254	LR126571	MUFFLER - REAR	LR126571 MUFFLER - REAR Japanese Emission + DPF / From: LH000001	$1,480.86	1
5255	LR128659	PIPE - EXHAUST	LR128659 PIPE - EXHAUST EU6D Diesel + DPF Emissions / From: LH000001 / To: LH863278	$569.85	1
5255	LR128630	PIPE - EXHAUST	LR128630 PIPE - EXHAUST Stage V Plus DPF / From: LH000001 / To: LH863278	$587.08	1
5255	LR139170	PIPE - EXHAUST	LR139170 PIPE - EXHAUST EU6 + DPF Emissions / From: LH863279	$455.23	1
5255	LR139171	PIPE - EXHAUST	LR139171 PIPE - EXHAUST Stage V Plus DPF / From: LH863279	$421.50	1
