Exhaust System (Front) (2.0L I4 DSL MID DOHC AJ200, EU6D Diesel + DPF Emissions, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200, Japanese Emission + DPF, EU6 + DPF Emissions) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Exhaust System (Front) (2.0L I4 DSL MID DOHC AJ200, EU6D Diesel + DPF Emissions, Halewood (UK),...

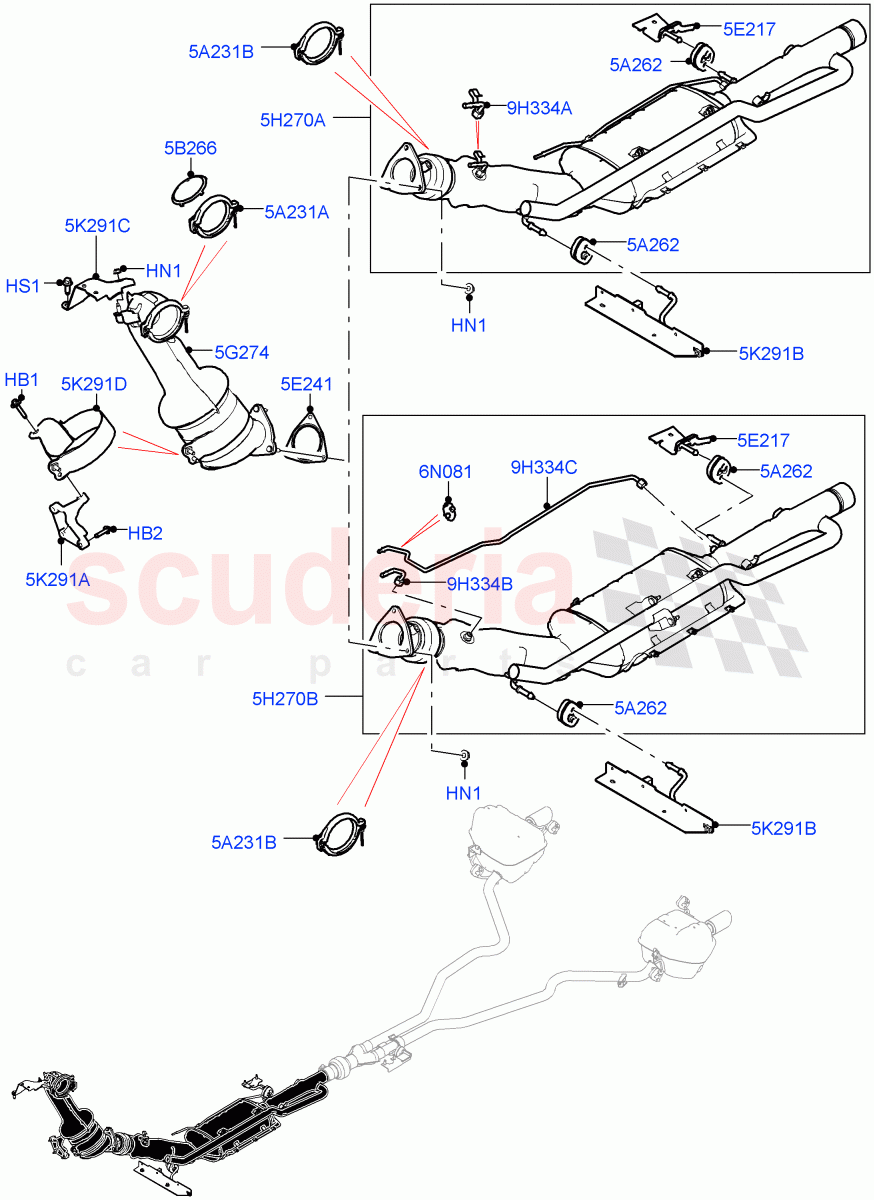

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR057202	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500290	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX108046	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116038	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072729	GASKET - EXHAUST PIPE	Enquire	To Order
	LR081471	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072208	PIPE - EXHAUST	Enquire	To Order
	LR086931	PIPE - EXHAUST	Enquire	To Order
	LR088326	PIPE - EXHAUST	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR136723	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082692	CLAMP - EXHAUST	Enquire	To Order
	LR111338	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146354	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072157	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR086934	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR104397	FILTER - DIESEL PARTICLE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR117082	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR126707	FILTER - DIESEL PARTICLE	Enquire	To Order
	LR134738	FILTER - DIESEL PARTICLE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR072210	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR134739	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072222	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR107787	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072211	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR079603	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094258	BELLY BAND BRACKET - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092772	PIPE - EXHAUST PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136719	PIPE - EXHAUST PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136721	PIPE - EXHAUST PRESSURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR057202	BOLT AND WASHER - HEX.HEAD	LR057202 BOLT AND WASHER - HEX.HEAD M8 x 40MM / From: GH000001	-	1	Enquire
HB2	RYG500290	BOLT - HEX.HEAD	RYG500290 BOLT - HEX.HEAD Hexagonal Head, M8 x 30MM / From: GH000001	-	3	Enquire
HN1	FX108046	NUT - LOCKING	FX108046 NUT - LOCKING M8 / From: GH000001	-	3	Enquire
HS1	RYP500900	SCREW	RYP500900 SCREW M6 x 12MM, Torx / From: GH000001	-	4	Enquire
5A231A	LR082692	CLAMP - EXHAUST	LR082692 CLAMP - EXHAUST 101 mm / From: GH000001 / To: GH999999	-	1	Enquire
5A231A	LR111338	CLAMP - EXHAUST	LR111338 CLAMP - EXHAUST 101 mm / From: HH000001	-	1	Enquire
5A231B	LR146354	CLAMP	LR146354 CLAMP Heat Shield / From: GH000001	-	1	Enquire
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER From: GH000001	-	2	Enquire
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm / From: GH000001	-	1	Enquire
5E217	LR116038	BRACKET	LR116038 BRACKET Rear / From: GH000001	-	1	Enquire
5E241	LR072729	GASKET - EXHAUST PIPE	LR072729 GASKET - EXHAUST PIPE From: GH000001 / To: GH567407	-	1	Enquire
5E241	LR081471	GASKET - EXHAUST PIPE	LR081471 GASKET - EXHAUST PIPE From: GH567408	-	1	Enquire
5G274	LR072208	PIPE - EXHAUST	LR072208 PIPE - EXHAUST From: GH000001 / To: GH607701	-	1	Enquire
5G274	LR086931	PIPE - EXHAUST	LR086931 PIPE - EXHAUST From: GH607702 / To: GH631891	-	1	Enquire
5G274	LR088326	PIPE - EXHAUST	LR088326 PIPE - EXHAUST From: GH631892 / To: HH999999	-	1	Enquire
5G274	LR094190	PIPE - EXHAUST	LR094190 PIPE - EXHAUST 2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001	-	1	Enquire
5G274	LR088326	PIPE - EXHAUST	LR088326 PIPE - EXHAUST 2.0L I4 DSL MID DOHC AJ200 / From: JH000001	-	1	Enquire
5H270A	LR072157	FILTER - DIESEL PARTICLE	LR072157 FILTER - DIESEL PARTICLE From: GH000001 / To: GH632327	-	1	Enquire
5H270A	LR086934	FILTER - DIESEL PARTICLE	LR086934 FILTER - DIESEL PARTICLE From: GH632328 / To: HH717429	-	1	Enquire
5H270A	LR104397	FILTER - DIESEL PARTICLE	LR104397 FILTER - DIESEL PARTICLE From: HH717430 / To: HH999999	-	1	Enquire
5H270A	LR116037	FILTER - DIESEL PARTICLE	LR116037 FILTER - DIESEL PARTICLE EU6 + DPF Emissions / Please Follow TOPIx Section 309-00A Before Ordering This Part. More Efficient Repair That Can Be Performed / From: JH000001 / To: KH803037	-	1	Enquire
5H270A	LR113629	FILTER - DIESEL PARTICLE	LR113629 FILTER - DIESEL PARTICLE EU6D Diesel + DPF Emissions / From: KH000001 / To: KH803037	-	1	Enquire
5H270B	LR117082	FILTER - DIESEL PARTICLE	LR117082 FILTER - DIESEL PARTICLE Japanese Emission + DPF / From: KH803038 / To: KH811477	-	1	Enquire
5H270B	LR126707	FILTER - DIESEL PARTICLE	LR126707 FILTER - DIESEL PARTICLE EU6D Diesel + DPF Emissions / From: KH803038 / To: LH846505	-	1	Enquire
5H270B	LR134738	FILTER - DIESEL PARTICLE	LR134738 FILTER - DIESEL PARTICLE EU6D Diesel + DPF Emissions / From: LH846506 / To: LH851365	-	1	Enquire
5H270B	LR134916	FILTER - DIESEL PARTICLE	LR134916 FILTER - DIESEL PARTICLE Japanese Emission + DPF / From: KH811478	-	1	Enquire
5H270B	LR137748	FILTER - DIESEL PARTICLE	LR137748 FILTER - DIESEL PARTICLE EU6D Diesel + DPF Emissions / From: LH851366	-	1	Enquire
5K291A	LR072210	BRACKET - EXHAUST PIPE MOUNTING	LR072210 BRACKET - EXHAUST PIPE MOUNTING From: GH000001 / To: LH830147	-	1	Enquire
5K291A	LR134739	BRACKET - EXHAUST PIPE MOUNTING	LR134739 BRACKET - EXHAUST PIPE MOUNTING From: LH830148	-	1	Enquire
5K291B	LR072222	BRACKET - EXHAUST PIPE MOUNTING	LR072222 BRACKET - EXHAUST PIPE MOUNTING From: GH000001 / To: JH726071	-	1	Enquire
5K291B	LR107787	BRACKET - EXHAUST PIPE MOUNTING	LR107787 BRACKET - EXHAUST PIPE MOUNTING From: JH726072	-	1	Enquire
5K291C	LR072211	BRACKET - EXHAUST PIPE MOUNTING	LR072211 BRACKET - EXHAUST PIPE MOUNTING From: GH000001 / To: GH609724	-	1	Enquire
5K291C	LR079603	BRACKET - EXHAUST PIPE MOUNTING	LR079603 BRACKET - EXHAUST PIPE MOUNTING From: GH609725	-	1	Enquire
5K291D	LR094258	BELLY BAND BRACKET - EXHAUST	LR094258 BELLY BAND BRACKET - EXHAUST Belly Band / From: GH000001	-	1	Enquire
6N081	LR136723	BRACKET - EXHAUST PIPE MOUNTING	LR136723 BRACKET - EXHAUST PIPE MOUNTING Exhaust pipe / From: KH803038	-	1	Enquire
9H334A	LR092772	PIPE - EXHAUST PRESSURE	LR092772 PIPE - EXHAUST PRESSURE Exhaust Gas Pressure / From: GH000001 / To: KH803037	-	1	Enquire
9H334B	LR136719	PIPE - EXHAUST PRESSURE	LR136719 PIPE - EXHAUST PRESSURE Exhaust Gas Pressure, Inlet / From: KH803038	-	1	Enquire
9H334C	LR136721	PIPE - EXHAUST PRESSURE	LR136721 PIPE - EXHAUST PRESSURE Exhaust Gas Pressure, Outlet / From: KH803038	-	1	Enquire
