Oil Pan/Oil Level Indicator (2.0L Aj20D4 Diesel High Pta, Halewood (Uk), 2.0L Aj20D4 Diesel Mid...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Oil Pan/Oil Level Indicator (2.0L AJ20D4 Diesel High PTA, Halewood (UK), 2.0L AJ20D4 Diesel Mid...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR074127 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073677 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR074137 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073635 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073724 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR089234 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC Enquire To Order
Photo Part No Description Price (each) Stock
LR087669 PAN - ENGINE OIL Enquire To Order
LR140954 PAN - ENGINE OIL Enquire To Order
LR154106 PAN - ENGINE OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR154091 PLUG - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR117522 TUBE - OIL LEVEL INDICATOR Enquire To Order
LR117523 TUBE - OIL LEVEL INDICATOR Enquire To Order
LR140666 TUBE - OIL LEVEL INDICATOR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR073634 TRAY - WINDAGE Enquire To Order
LR137476 TRAY - WINDAGE Enquire To Order
Photo Part No Description Price (each) Stock
LR124586 INSULATOR - OIL SUMP Enquire To Order
View All

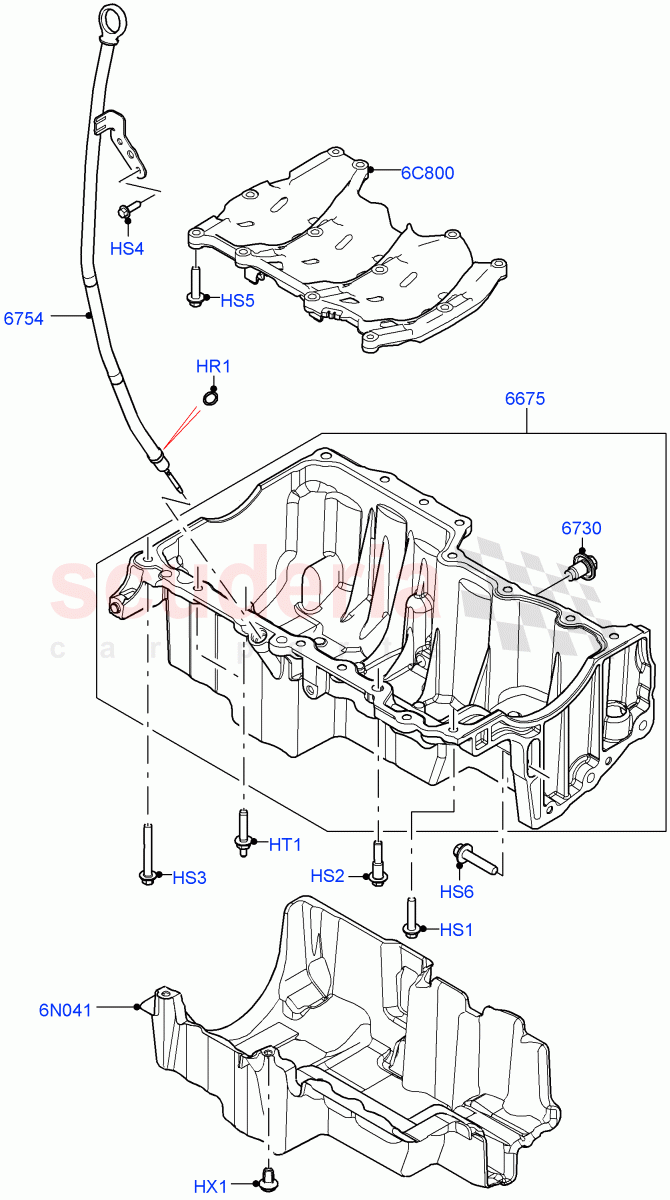

Oil Pan/Oil Level Indicator (2.0L AJ20D4 Diesel High PTA, Halewood (UK), 2.0L AJ20D4 Diesel Mid PTA, 2.0L AJ20D4 Diesel LF PTA) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR074127
O-RING
11.5 x 2 mm, Tube Indicator / From: LH000001 		- 1 Enquire
HS1 LR073676
SCREW
M8 x 35mm / From: LH000001 		- 11 Enquire
HS2 LR073677
SCREW
M8 x 42mm / From: LH000001 		- 2 Enquire
HS3 LR074137
SCREW
M8 x 60mm / From: LH000001 		- 1 Enquire
HS4 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: LH000001 		- 1 Enquire
HS5 LR073635
SCREW
M6 x 35MM, Windage Tray / From: LH000001 		- 12 Enquire
HS6 LR073724
SCREW
M8 X 25MM, Timing Chain Lower Cover / From: LH000001 		- 1 Enquire
HT1 LR089234
STUD
M8 X 35 + M6 X 12 / From: LH000001 		- 2 Enquire
HX1 LR071767
RIVET - PLASTIC
7.8-9.1 x 4.5-10.5, Insulator / From: LH000001 		- 3 Enquire
6C800 LR073634
TRAY - WINDAGE
From: LH000001 / To: LH840665 		- 1 Enquire
6C800 LR137476
TRAY - WINDAGE
From: LH840666 		- 1 Enquire
6N041 LR124586
INSULATOR - OIL SUMP
Oil Pan / From: LH000001 		- 1 Enquire
6675 LR087669
PAN - ENGINE OIL
From: LH000001 / To: LH869720 		- 1 Enquire
6675 LR140954
PAN - ENGINE OIL
From: LH869721 / To: MH883305 		- 1 Enquire
6675 LR154106
PAN - ENGINE OIL
From: MH883306 		- 1 Enquire
6730 LR154091
PLUG - OIL DRAIN
From: LH000001 		- 1 Enquire
6754 LR117522
TUBE - OIL LEVEL INDICATOR
2.0L AJ20D4 Diesel Mid PTA / From: LH000001 / To: LH867940 		- 1 Enquire
6754 LR117523
TUBE - OIL LEVEL INDICATOR
2.0L AJ20D4 Diesel High PTA / From: LH000001 / To: LH867940 		- 1 Enquire
6754 LR140666
TUBE - OIL LEVEL INDICATOR
2.0L AJ20D4 Diesel High PTA / From: LH867941 		- 1 Enquire
6754 LR140665
TUBE - OIL LEVEL INDICATOR
2.0L AJ20D4 Diesel Mid PTA / From: LH867941 		- 1 Enquire
