Oil Cooler And Filter (2.0L I4 Dsl High Dohc Aj200, Halewood (Uk), 2.0L I4 Dsl Mid Dohc Aj200)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Oil Cooler And Filter (2.0L I4 DSL HIGH DOHC AJ200, Halewood (UK), 2.0L I4 DSL MID DOHC AJ200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR170968 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073736 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073673 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073669 KIT - ELEMENT & GASKET - OIL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR073672 SWITCH - OIL PRESSURE Enquire To Order
LR135718 SWITCH - OIL PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR073868 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073869 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR073870 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR073678 OIL COOLER - ENGINE Enquire To Order
LR075630 OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR073670 COVER - OIL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR073667 OIL FILTER - ASSEMBLY Enquire To Order
LR097159 OIL FILTER - ASSEMBLY Enquire To Order
LR097160 OIL FILTER - ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
LR092056 GASKET - OIL COOLER Enquire To Order
View All

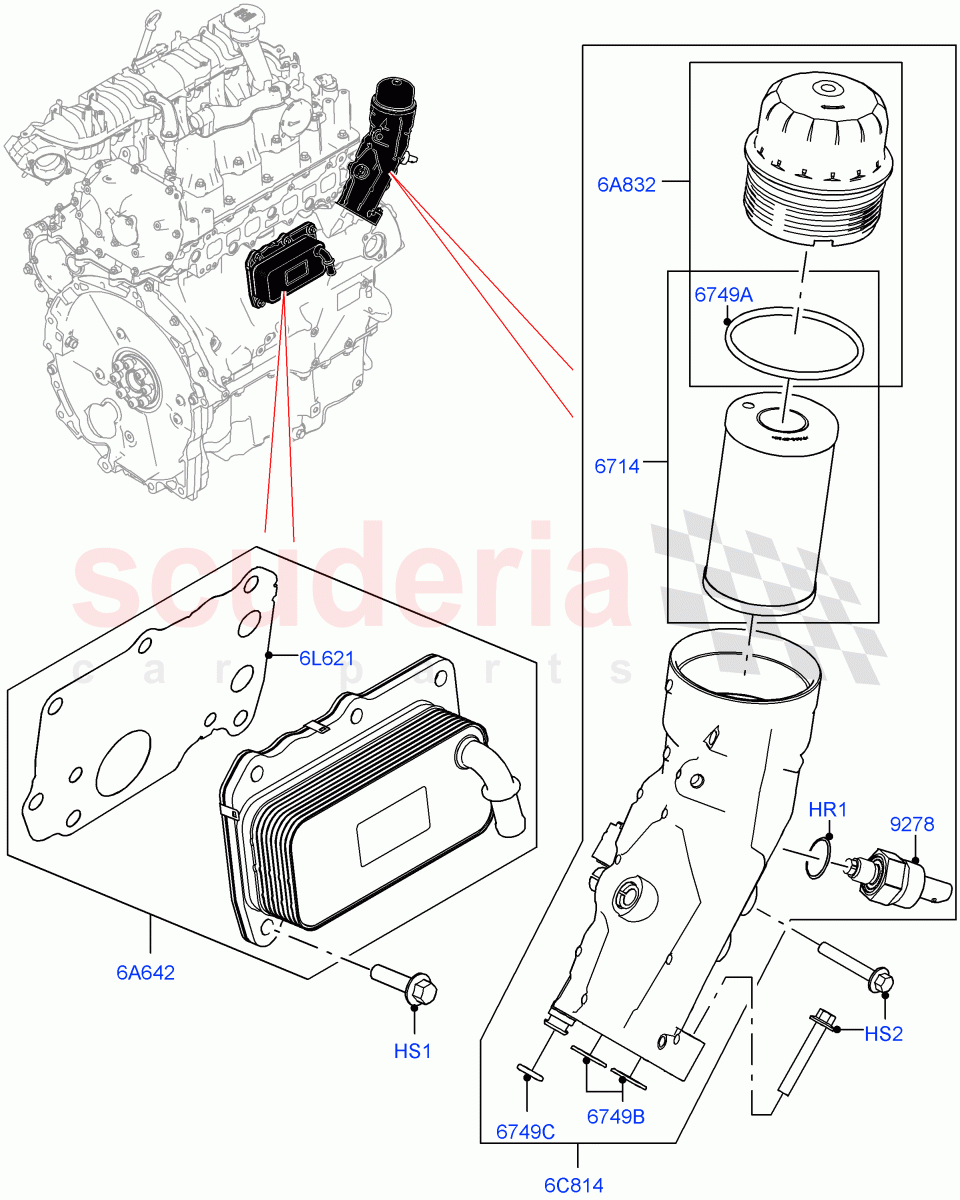

Oil Cooler And Filter (2.0L I4 DSL HIGH DOHC AJ200, Halewood (UK), 2.0L I4 DSL MID DOHC AJ200) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR170968
O-RING
Sensor - Oil Pressure / From: GH000001 		- 1 Enquire
HS1 LR073736
SCREW
M8 X 30MM / From: GH000001 		- 7 Enquire
HS2 LR073673
SCREW
M6 X 40MM / From: GH000001 		- 3 Enquire
6A642 LR073678
OIL COOLER - ENGINE
From: GH000001 / To: GH093993 		- 1 Enquire
6A642 LR075630
OIL COOLER
From: GH093994 		- 1 Enquire
6A832 LR073670
COVER - OIL FILTER
Element And Seal / From: GH000001 		- 1 Enquire
6C814 LR073667
OIL FILTER - ASSEMBLY
2.0L I4 DSL MID DOHC AJ200 / From: GH000001 / To: HH678888 		- 1 Enquire
6C814 LR097159
OIL FILTER - ASSEMBLY
2.0L I4 DSL MID DOHC AJ200 / From: HH678889 		- 1 Enquire
6C814 LR097160
OIL FILTER - ASSEMBLY
2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001 		- 1 Enquire
6L621 LR092056
GASKET - OIL COOLER
Oil Cooler / From: GH000001 		- 1 Enquire
6714 LR073669
KIT - ELEMENT & GASKET - OIL FILTER
Element And Seal / From: GH000001 		- 1 Enquire
6749A LR073868
O-RING
Cover / From: GH000001 		- 1 Enquire
6749B LR073869
SEAL
From: GH000001 		- 4 Enquire
6749C LR073870
SEAL
Drain / From: GH000001 		- 1 Enquire
9278 LR073672
SWITCH - OIL PRESSURE
From: GH000001 / To: LH834099 		- 1 Enquire
9278 LR135718
SWITCH - OIL PRESSURE
From: LH834100 		- 1 Enquire
