Exhaust Fluid Injection System (2.0L I4 Dsl Mid Dohc Aj200, With Diesel Exh Fluid Emission Tank,...

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Exhaust Fluid Injection System (2.0L I4 DSL MID DOHC AJ200, With Diesel Exh Fluid Emission Tank,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038526 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR067041 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
AYG500030 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR071347 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR067042 CLAMP - TUBE Enquire To Order
Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR045542 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR085284 PAD - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR073584 HARNESS - DIESEL EXHAUST FLUID SYS. Enquire To Order
Photo Part No Description Price (each) Stock
LR071241 CONTROL UNIT - AUXILIARY HEATER Enquire To Order
LR117592 CONTROL UNIT - AUXILIARY HEATER Enquire To Order
Photo Part No Description Price (each) Stock
LR085287 KIT - FIXING PARTS Enquire To Order
Photo Part No Description Price (each) Stock
LR072192 TANK&SHIELD - DIESEL EXHAUST FLUID Enquire To Order
LR084676 TANK&SENDER - DIESEL EXHAUST FLUID Enquire To Order
Photo Part No Description Price (each) Stock
LR071856 HOSE - TANK Enquire To Order
LR078772 HOSE - TANK Enquire To Order
LR084637 HOSE - TANK Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR166795 INJECTOR - DIESEL EXHAUST FLUID Enquire To Order
LR166795 INJECTOR - DIESEL EXHAUST FLUID Enquire To Order
Photo Part No Description Price (each) Stock
LR084743 PUMP - DIESEL EXHAUST FLUID Enquire To Order
Photo Part No Description Price (each) Stock
LR083307 BRACKET - FUEL TUBE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR138592 kIT - INJECTOR REFIT Enquire To Order
LR138592 kIT - INJECTOR REFIT Enquire To Order
Photo Part No Description Price (each) Stock
LR074066 CAP - FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR085282 TUBE - BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
LR071857 PIPE - TANK VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR071769 BRACKET - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR071761 BRACKET - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR078797 BRACKET - FILLER Enquire To Order
View All

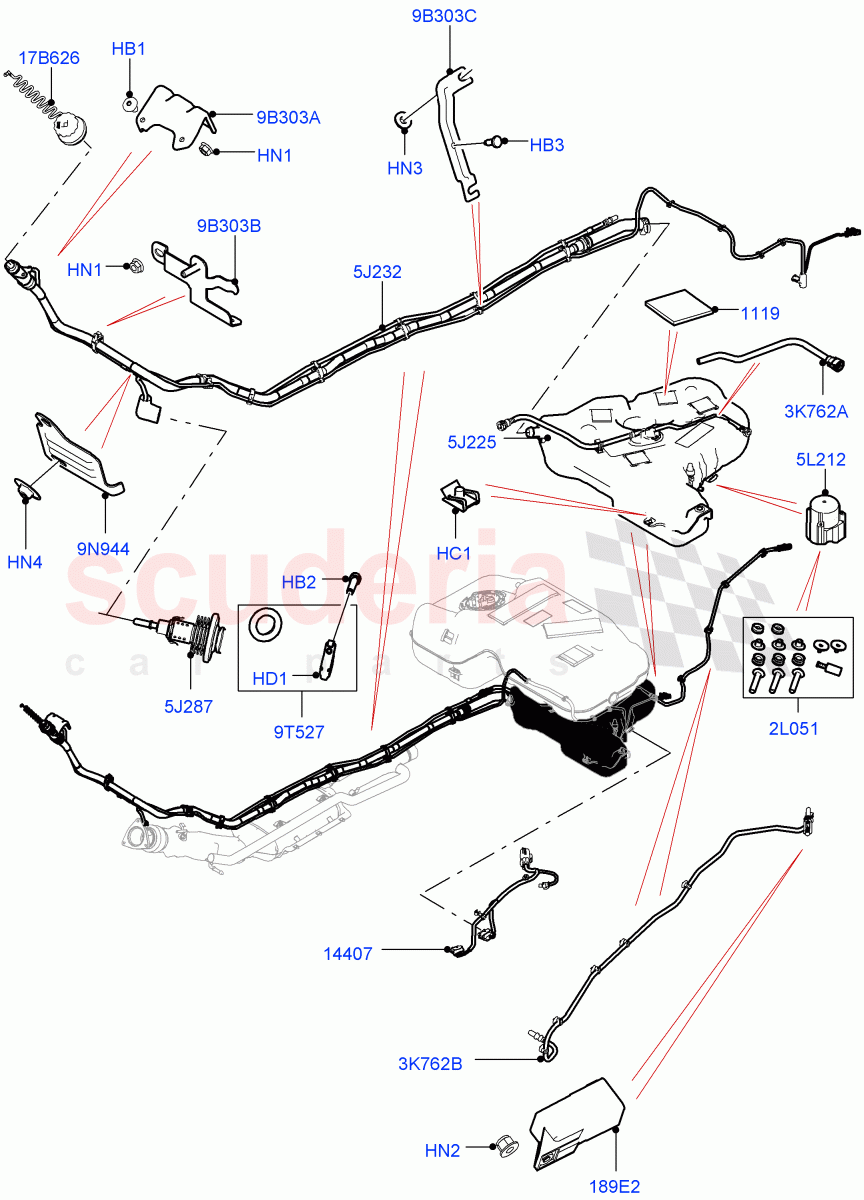

Exhaust Fluid Injection System (2.0L I4 DSL MID DOHC AJ200, With Diesel Exh Fluid Emission Tank, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR038526
BOLT
M6 X 11MM / From: GH000001 		- 2 Enquire
HB2 LR067041
SCREW
M5 x 25 / From: GH000001 		- 1 Enquire
HB3 AYG500030
BOLT
M6 x 15 / From: GH000001 		- 1 Enquire
HC1 LR071347
CLIP
Additive Tank / From: GH000001 		- 2 Enquire
HD1 LR067042
CLAMP - TUBE 		- 1 Enquire
HN1 FN106042
NUT
Hexagonal Head, M6 / From: GH000001 		- 3 Enquire
HN2 FY106046
NUT - HEX.
Hexagonal Head, M6 / From: GH000001 		- 2 Enquire
HN3 LR045542
NUT
M6, Nut And Washer / From: GH000001 		- 2 Enquire
HN4 LR003643
NUT - SPECIAL
Heat Shield, M5 / From: GH000001 		- 1 Enquire
2L051 LR085287
KIT - FIXING PARTS
From: GH000001 		- 1 Enquire
3K762A LR085282
TUBE - BREATHER
From: GH000001 		- 1 Enquire
3K762B LR071857
PIPE - TANK VENT
From: GH000001 		- 1 Enquire
5J225 LR072192
TANK&SHIELD - DIESEL EXHAUST FLUID
From: GH000001 / To: GH589580 		- 1 Enquire
5J225 LR084676
TANK&SENDER - DIESEL EXHAUST FLUID
From: GH589581 		- 1 Enquire
5J232 LR071856
HOSE - TANK
From: GH000001 / To: GH546343 		- 1 Enquire
5J232 LR078772
HOSE - TANK
From: GH546344 / To: GH606908 		- 1 Enquire
5J232 LR084637
HOSE - TANK
From: GH606909 / To: JH728760 		- 1 Enquire
5J232 LR108933
HOSE - TANK
From: JH728761 		- 1 Enquire
5J287 LR166795
INJECTOR - DIESEL EXHAUST FLUID
From: GH000001 / To: KH823247 		- 1 Enquire
5J287 LR166795
INJECTOR - DIESEL EXHAUST FLUID
From: KH823248 		- 1 Enquire
5L212 LR084743
PUMP - DIESEL EXHAUST FLUID
Kit Includes Fitting Parts, Service Kit / From: GH000001 		- 1 Enquire
9B303A LR071769
BRACKET - FILLER PIPE
From: GH000001 		- 1 Enquire
9B303B LR071761
BRACKET - FILLER PIPE
From: GH000001 		- 1 Enquire
9B303C LR078797
BRACKET - FILLER
From: GH000001 		- 1 Enquire
9N944 LR083307
BRACKET - FUEL TUBE SUPPORT
Heat Shield / From: GH000001 		- 1 Enquire
9T527 LR138592
kIT - INJECTOR REFIT
Diesel Exhaust Fluid / From: GH000001 / To: KH823247 		- 1 Enquire
9T527 LR138592
kIT - INJECTOR REFIT
Diesel Exhaust Fluid / From: KH823248 		- 1 Enquire
17B626 LR074066
CAP - FILLER
From: GH000001 		- 1 Enquire
189E2 LR071241
CONTROL UNIT - AUXILIARY HEATER
Diesel Exhaust Fluid / From: GH000001 / To: JH769163 		- 1 Enquire
189E2 LR117592
CONTROL UNIT - AUXILIARY HEATER
Diesel Exhaust Fluid / From: JH769164 		- 1 Enquire
1119 LR085284
PAD - RUBBER
From: GH000001 		- 4 Enquire
14407 LR073584
HARNESS - DIESEL EXHAUST FLUID SYS.
From: GH000001 		- 1 Enquire
