Emission Control - Crankcase (2.0L Aj20D4 Diesel Mid Pta, Itatiaia (Brazil)) ((V) Fromlt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Emission Control - Crankcase (2.0L AJ20D4 Diesel Mid PTA, Itatiaia (Brazil)) ((V) FROMLT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR105417 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR105418 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR105593 GASKET - COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR105980 COVER - BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
LR174796 HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR077852 HOSE - CRANKCASE VENTILATION Enquire To Order
View All

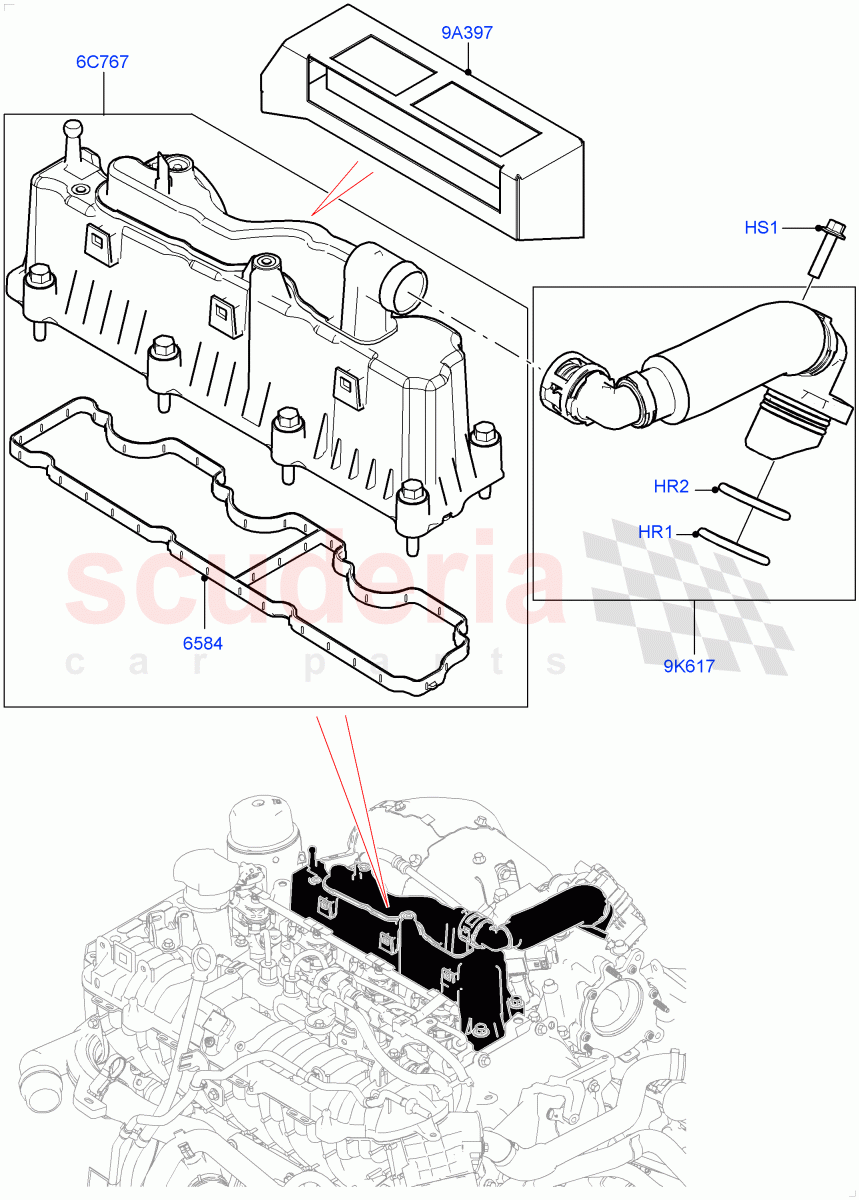

Emission Control - Crankcase (2.0L AJ20D4 Diesel Mid PTA, Itatiaia (Brazil)) ((V) FROMLT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR105417
O-RING
38MM, Primary / From: LT000001 		- 1 Enquire
HR2 LR105418
O-RING
38MM, Secondary / From: LT000001 		- 1 Enquire
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Engine Ventilation, Hexagonal Head, Hose, M6 X 25MM / From: LT000001 		- 2 Enquire
6C767 LR105980
COVER - BREATHER
Engine Ventilation / From: LT000001 		- 1 Enquire
9A397 LR174796
HEAT SHIELD
From: LT000001 		- 1 Enquire
9K617 LR077852
HOSE - CRANKCASE VENTILATION
Engine Ventilation / From: LT000001 		- 1 Enquire
6584 LR105593
GASKET - COVER
From: LT000001 		- 1 Enquire
