Intercooler/Air Ducts And Hoses (2.0L Aj20D4 Diesel Mid Pta, Itatiaia (Brazil)) ((V) Fromlt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Intercooler/Air Ducts And Hoses (2.0L AJ20D4 Diesel Mid PTA, Itatiaia (Brazil)) ((V) FROMLT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
LR001080 BOLT $1.31 IN STOCK
Photo Part No Description Price (each) Stock
FB108106 BOLT $10.49 To Order
Photo Part No Description Price (each) Stock
LR024636 CLAMP - HOSE $14.90 To Order
Photo Part No Description Price (each) Stock
LR001925 SCREW AND WASHER $1.09 To Order
Photo Part No Description Price (each) Stock
LR028234 STUD $4.81 To Order
Photo Part No Description Price (each) Stock
LR072140 DUCT - AIR $49.00 To Order
Photo Part No Description Price (each) Stock
LR114113 BRACKET - CHARGE AIR COOLER $70.80 To Order
Photo Part No Description Price (each) Stock
LR108941 HOSE - INTERCOOLER $74.91 To Order
Photo Part No Description Price (each) Stock
LR095900 COOLER - ENGINE CHARGE AIR $517.12 To Order
Photo Part No Description Price (each) Stock
LR071745 SENSOR - AIR CHARGE TEMPERATURE $46.63 To Order
Photo Part No Description Price (each) Stock
LR071998 HOSE - AIR $28.09 To Order
Photo Part No Description Price (each) Stock
LR072134 DUCT - AIR INTAKE $240.50 To Order
View All

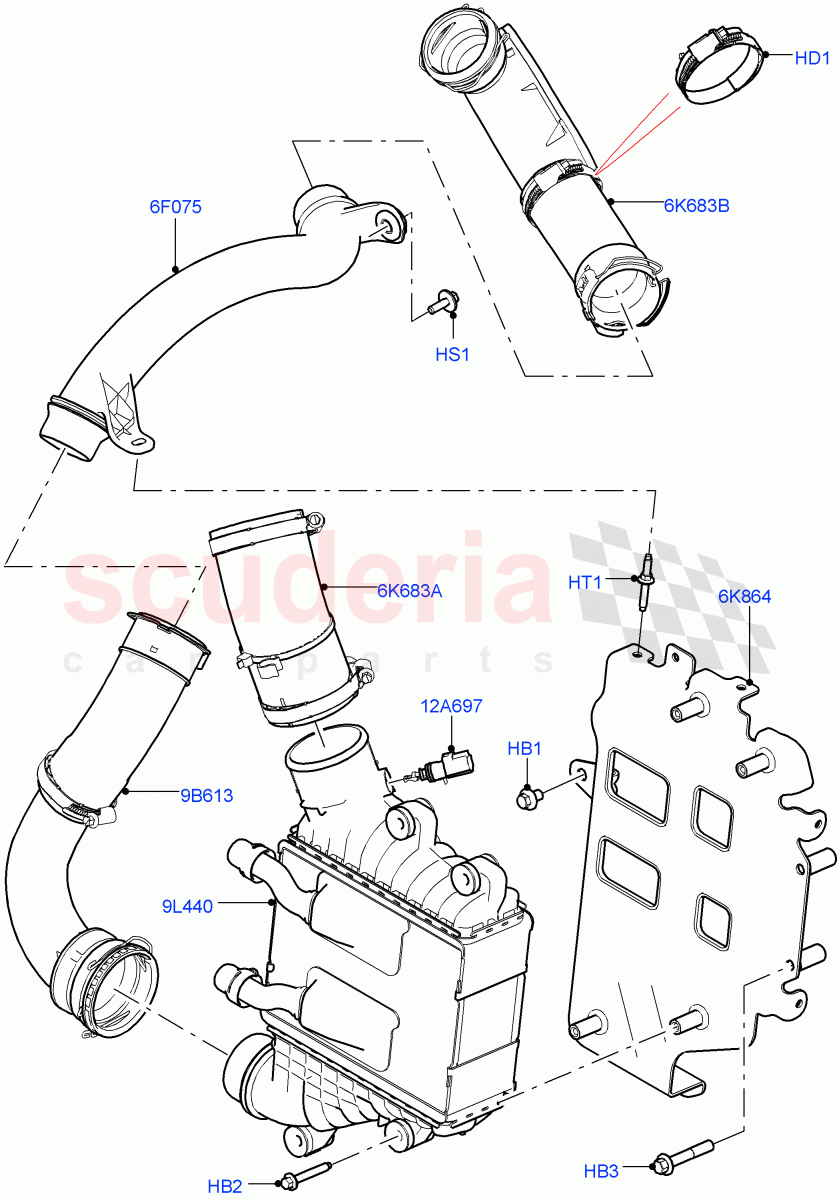

Intercooler/Air Ducts And Hoses (2.0L AJ20D4 Diesel Mid PTA, Itatiaia (Brazil)) ((V) FROMLT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Bracket, Hexagonal Head, M8 X 16MM, To Transmission / From: LT000001
IN STOCK 		$0.63 4
HB2 LR001080
BOLT
Hexagonal Head, Intercooler, M6 X 40MM / From: LT000001
IN STOCK 		$1.31 2
HB3 FB108106
BOLT
Bracket, Hexagonal Head, M8 x 50MM, To Transmission / From: LT000001 		$10.49 2
HD1 LR024636
CLAMP - HOSE
50-70MM / From: LT000001 		$14.90 1
HS1 LR001925
SCREW AND WASHER
M6 X 20MM / From: LT000001 		$1.09 1
HT1 LR028234
STUD
M6 X 25 + M6 X 16 / From: LT000001 		$4.81 1
6F075 LR072140
DUCT - AIR
From: LT000001 		$49.00 1
6K683A LR071998
HOSE - AIR
Intercooler Outlet / From: LT000001 		$28.09 1
6K683B LR072134
DUCT - AIR INTAKE
Turbocharger Outlet / From: LT000001 		$240.50 1
6K864 LR114113
BRACKET - CHARGE AIR COOLER
From: LT000001 		$70.80 1
9B613 LR108941
HOSE - INTERCOOLER
Intercooler Inlet, Lower / From: LT000001 		$74.91 1
9L440 LR095900
COOLER - ENGINE CHARGE AIR
From: LT000001 		$517.12 1
12A697 LR071745
SENSOR - AIR CHARGE TEMPERATURE
From: LT000001 		$46.63 1
