Intercooler/Air Ducts And Hoses (2.0L I4 DSL MID DOHC AJ200, Halewood (UK)) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Intercooler/Air Ducts And Hoses (2.0L I4 DSL MID DOHC AJ200, Halewood (UK))

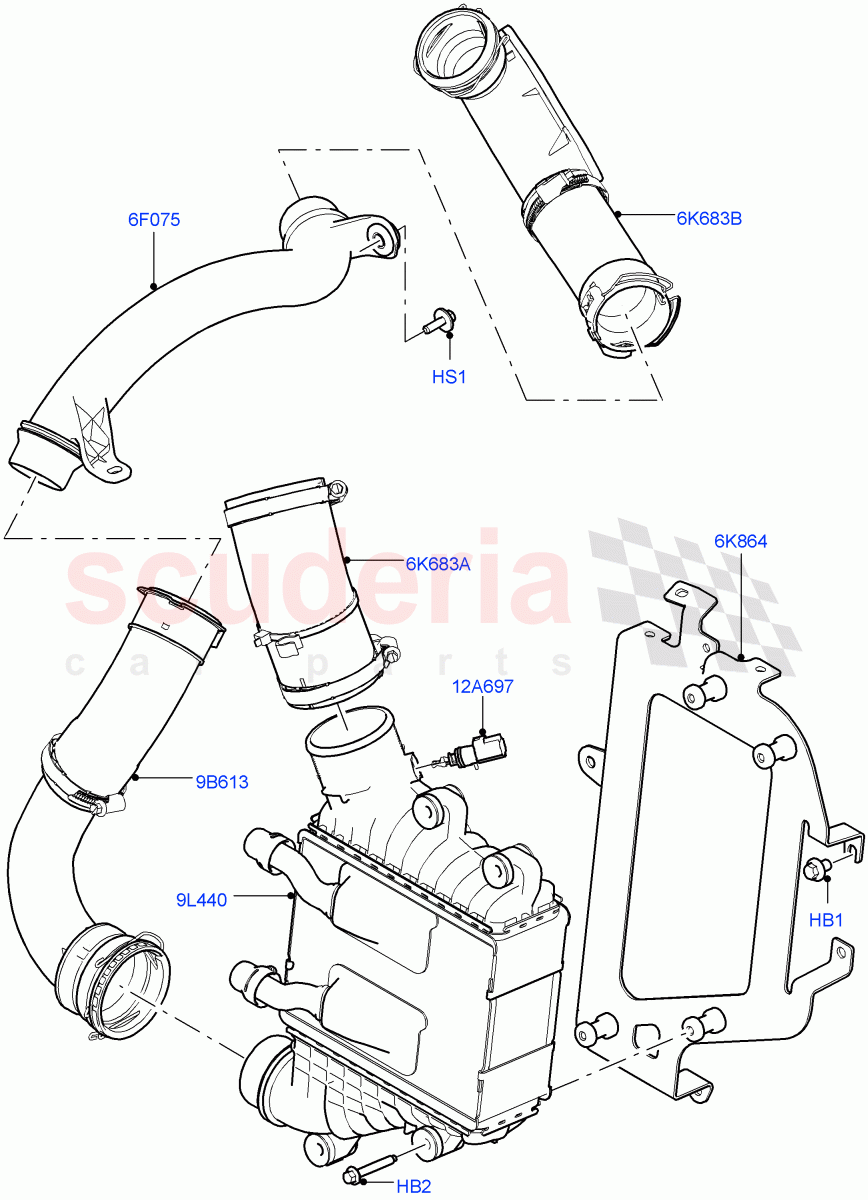

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001925	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072140	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071924	BRACKET - CHARGE AIR COOLER	Enquire	To Order
	LR071923	BRACKET - CHARGE AIR COOLER	Enquire	To Order
	LR097850	BRACKET - CHARGE AIR COOLER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR072142	HOSE - INTERCOOLER	Enquire	To Order
	LR108941	HOSE - INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072118	COOLER - ENGINE CHARGE AIR	Enquire	To Order
	LR095900	COOLER - ENGINE CHARGE AIR	Enquire	To Order
	LR139043	COOLER - ENGINE CHARGE AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071745	SENSOR - AIR CHARGE TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071998	HOSE - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072134	DUCT - AIR INTAKE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108166	BOLT	FS108166 BOLT Hexagonal Head, M8 X 16MM / From: GH000001	-	4	Enquire
HB2	LR001080	BOLT	LR001080 BOLT Hexagonal Head, M6 X 40MM / From: GH000001	-	4	Enquire
HS1	LR001925	SCREW AND WASHER	LR001925 SCREW AND WASHER M6 X 20MM / From: GH000001	-	2	Enquire
6F075	LR072140	DUCT - AIR	LR072140 DUCT - AIR From: GH000001	-	1	Enquire
6K683A	LR071998	HOSE - AIR	LR071998 HOSE - AIR From: GH000001	-	1	Enquire
6K683B	LR072134	DUCT - AIR INTAKE	LR072134 DUCT - AIR INTAKE From: GH000001	-	1	Enquire
6K864	LR071924	BRACKET - CHARGE AIR COOLER	LR071924 BRACKET - CHARGE AIR COOLER 9 Speed Auto AWD / From: GH000001 / To: HH999999	-	1	Enquire
6K864	LR071923	BRACKET - CHARGE AIR COOLER	LR071923 BRACKET - CHARGE AIR COOLER 6 Speed Manual Trans-JLR M66 2WD / From: GH000001	-	1	Enquire
6K864	LR097850	BRACKET - CHARGE AIR COOLER	LR097850 BRACKET - CHARGE AIR COOLER 9 Speed Auto AWD / From: JH000001	-	1	Enquire
6K864	LR113622	BRACKET - CHARGE AIR COOLER	LR113622 BRACKET - CHARGE AIR COOLER 6 Speed Manual Trans BG6 / From: KH000001	-	1	Enquire
9B613	LR072142	HOSE - INTERCOOLER	LR072142 HOSE - INTERCOOLER From: GH000001 / To: JH727186	-	1	Enquire
9B613	LR108941	HOSE - INTERCOOLER	LR108941 HOSE - INTERCOOLER From: JH727187	-	1	Enquire
9L440	LR072118	COOLER - ENGINE CHARGE AIR	LR072118 COOLER - ENGINE CHARGE AIR From: GH000001 / To: HH681143	-	1	Enquire
9L440	LR095900	COOLER - ENGINE CHARGE AIR	LR095900 COOLER - ENGINE CHARGE AIR From: HH681144 / To: LH870771	-	1	Enquire
9L440	LR139043	COOLER - ENGINE CHARGE AIR	LR139043 COOLER - ENGINE CHARGE AIR From: LH870772	-	1	Enquire
12A697	LR071745	SENSOR - AIR CHARGE TEMPERATURE	LR071745 SENSOR - AIR CHARGE TEMPERATURE From: GH000001	-	1	Enquire
