Heater/Air Cond.Internal Components (Main Unit) (Itatiaia (Brazil)) ((V) FROMGT000001, (V) TOKT999999) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Heater/Air Cond.Internal Components (Main Unit) (Itatiaia (Brazil)) ((V) FROMGT000001, (V)...

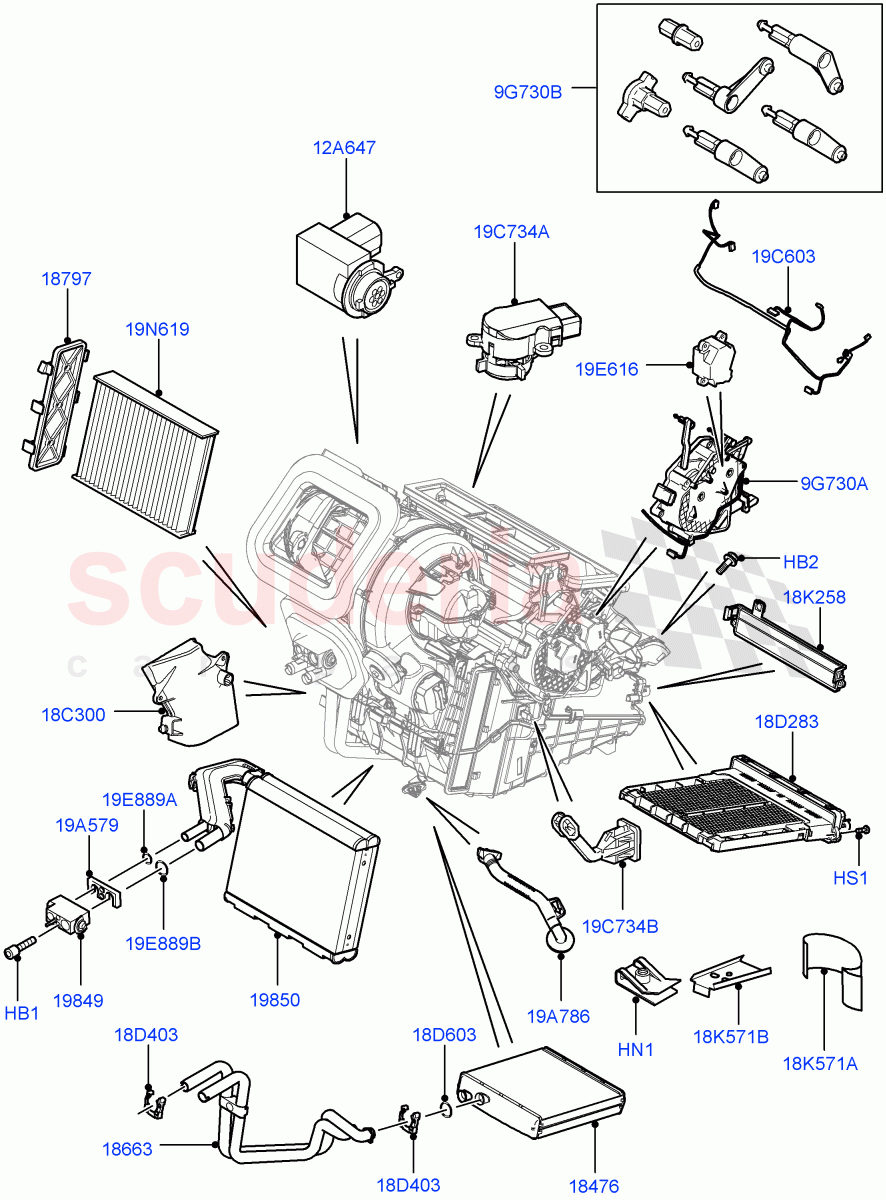

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR003562	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005381	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003485	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500770	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002632	CORE - HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002680	TUBE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066492	RETAINER - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016631	VALVE - EVAPORATOR EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070870	EVAPORATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039615	SENSOR - AIR POLUTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002892	DUCT - FOOT ROOM AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032899	PTC HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002675	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002683	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078981	COVER - HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003199	BRACKET - HEATER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017314	TUBE - WATER DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067261	WIRE - AIR CONDITIONER	Enquire	To Order
	LR067263	WIRE - AIR CONDITIONER	Enquire	To Order
	LR067265	WIRE - AIR CONDITIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066927	STEPPER MOTOR - HEATER	Enquire	To Order
	LR066927	STEPPER MOTOR - HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039612	FILTER - ODOUR AND PARTICLES	Enquire	To Order
	LR056138	FILTER - POLLEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066923	ACTUATOR - HEATER CONTROL	Enquire	To Order
	LR066924	ACTUATOR - HEATER CONTROL	Enquire	To Order
	LR066925	ACTUATOR - HEATER CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066926	ACTUATOR - HEATER CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002633	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003174	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062233	SENSOR - HEATER TEMPERATURE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003200	SENSOR - HEATER TEMPERATURE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003201	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003202	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR003562	BOLT	LR003562 BOLT M5 x 35MM / From: GT000001	-	1	Enquire
HB2	LR005381	BOLT AND WASHER - HEX.HEAD	LR005381 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 40MM, Not Supplied With The Unit / From: GT000001	-	2	Enquire
HN1	LR003485	NUT	LR003485 NUT M6 X 0.5-4 / From: GT000001	-	4	Enquire
HS1	RYP500770	SCREW	RYP500770 SCREW 5 X 16MM, Torx / From: GT000001	-	2	Enquire
9G730A	LR066923	ACTUATOR - HEATER CONTROL	LR066923 ACTUATOR - HEATER CONTROL With Manual Air Conditioning / Heater Air Control / From: GT000001	-	1	Enquire
9G730A	LR066924	ACTUATOR - HEATER CONTROL	LR066924 ACTUATOR - HEATER CONTROL ATC Air Conditioning, Less Rear Compartment Duct / Heater Air Control / From: GT000001	-	1	Enquire
9G730A	LR066925	ACTUATOR - HEATER CONTROL	LR066925 ACTUATOR - HEATER CONTROL ATC Air Conditioning, With Rear Duct / B-Pillar / Heater Air Control / From: GT000001	-	1	Enquire
9G730B	LR066926	ACTUATOR - HEATER CONTROL	LR066926 ACTUATOR - HEATER CONTROL Cams, Service Kit / From: GT000001	-	1	Enquire
12A647	LR039615	SENSOR - AIR POLUTION	LR039615 SENSOR - AIR POLUTION With Pollution Sensor / From: GT000001	-	1	Enquire
18C300	LR002892	DUCT - FOOT ROOM AIR	LR002892 DUCT - FOOT ROOM AIR From: GT000001	-	1	Enquire
18D283	LR032899	PTC HEATER	LR032899 PTC HEATER With Ptc Heater / Not Supplied With The Unit / From: GT000001	-	1	Enquire
18D403	LR002675	CLIP	LR002675 CLIP Tube / From: GT000001	-	2	Enquire
18D603	LR002683	SEAL	LR002683 SEAL Heater core, O Ring / From: GT000001	-	1	Enquire
18K258	LR078981	COVER - HEATER	LR078981 COVER - HEATER Less Ptc Heater / From: GT000001	-	1	Enquire
18K571A	LR002633	CLIP	LR002633 CLIP Heater / From: GT000001	-	1	Enquire
18K571B	LR003174	CLIP	LR003174 CLIP Heater / From: GT000001	-	1	Enquire
19A579	LR003199	BRACKET - HEATER MOUNTING	LR003199 BRACKET - HEATER MOUNTING From: GT000001	-	1	Enquire
19A786	LR017314	TUBE - WATER DRAIN	LR017314 TUBE - WATER DRAIN From: GT000001	-	1	Enquire
19C603	LR067261	WIRE - AIR CONDITIONER	LR067261 WIRE - AIR CONDITIONER Less Pollution Sensor, With Manual Air Conditioning / From: GT000001	-	1	Enquire
19C603	LR067263	WIRE - AIR CONDITIONER	LR067263 WIRE - AIR CONDITIONER ATC Air Conditioning, Less Pollution Sensor / From: GT000001	-	1	Enquire
19C603	LR067265	WIRE - AIR CONDITIONER	LR067265 WIRE - AIR CONDITIONER ATC Air Conditioning, With Pollution Sensor / From: GT000001	-	1	Enquire
19C734A	LR062233	SENSOR - HEATER TEMPERATURE CONTROL	LR062233 SENSOR - HEATER TEMPERATURE CONTROL ATC Air Conditioning / From: GT000001	-	1	Enquire
19C734B	LR003200	SENSOR - HEATER TEMPERATURE CONTROL	LR003200 SENSOR - HEATER TEMPERATURE CONTROL Attaches To Evaporator / From: GT000001	-	1	Enquire
19E616	LR066927	STEPPER MOTOR - HEATER	LR066927 STEPPER MOTOR - HEATER ATC Air Conditioning / From: GT000001	-	5	Enquire
19E616	LR066927	STEPPER MOTOR - HEATER	LR066927 STEPPER MOTOR - HEATER With Manual Air Conditioning / From: GT000001	-	3	Enquire
19E889A	LR003201	RING - SEALING	LR003201 RING - SEALING 10.82MM X 1.78MM / From: GT000001	-	1	Enquire
19E889B	LR003202	O-RING	LR003202 O-RING 14.0 X 1.78MM / From: GT000001	-	1	Enquire
19N619	LR039612	FILTER - ODOUR AND PARTICLES	LR039612 FILTER - ODOUR AND PARTICLES Less Pollution Sensor / 280mm x 194.5mm x 32mm, Filter - Odour And Particles / From: GT000001 / To: JT999999	-	1	Enquire
19N619	LR056138	FILTER - POLLEN	LR056138 FILTER - POLLEN With Pollution Sensor / 280mm x 194.5mm x 32mm, Filter - Odour And Particles / From: KT000001	-	1	Enquire
18476	LR002632	CORE - HEATER	LR002632 CORE - HEATER From: GT000001	-	1	Enquire
18663	LR002680	TUBE - HEATER WATER	LR002680 TUBE - HEATER WATER Heater Core Inlet, Heater Core Outlet / From: GT000001	-	1	Enquire
18797	LR066492	RETAINER - AIR CLEANER	LR066492 RETAINER - AIR CLEANER Cover, Filter / From: GT000001	-	1	Enquire
19849	LR016631	VALVE - EVAPORATOR EXPANSION	LR016631 VALVE - EVAPORATOR EXPANSION From: GT000001	-	1	Enquire
19850	LR070870	EVAPORATOR	LR070870 EVAPORATOR Service Kit / From: GT000001	-	1	Enquire
